Power Window Control System

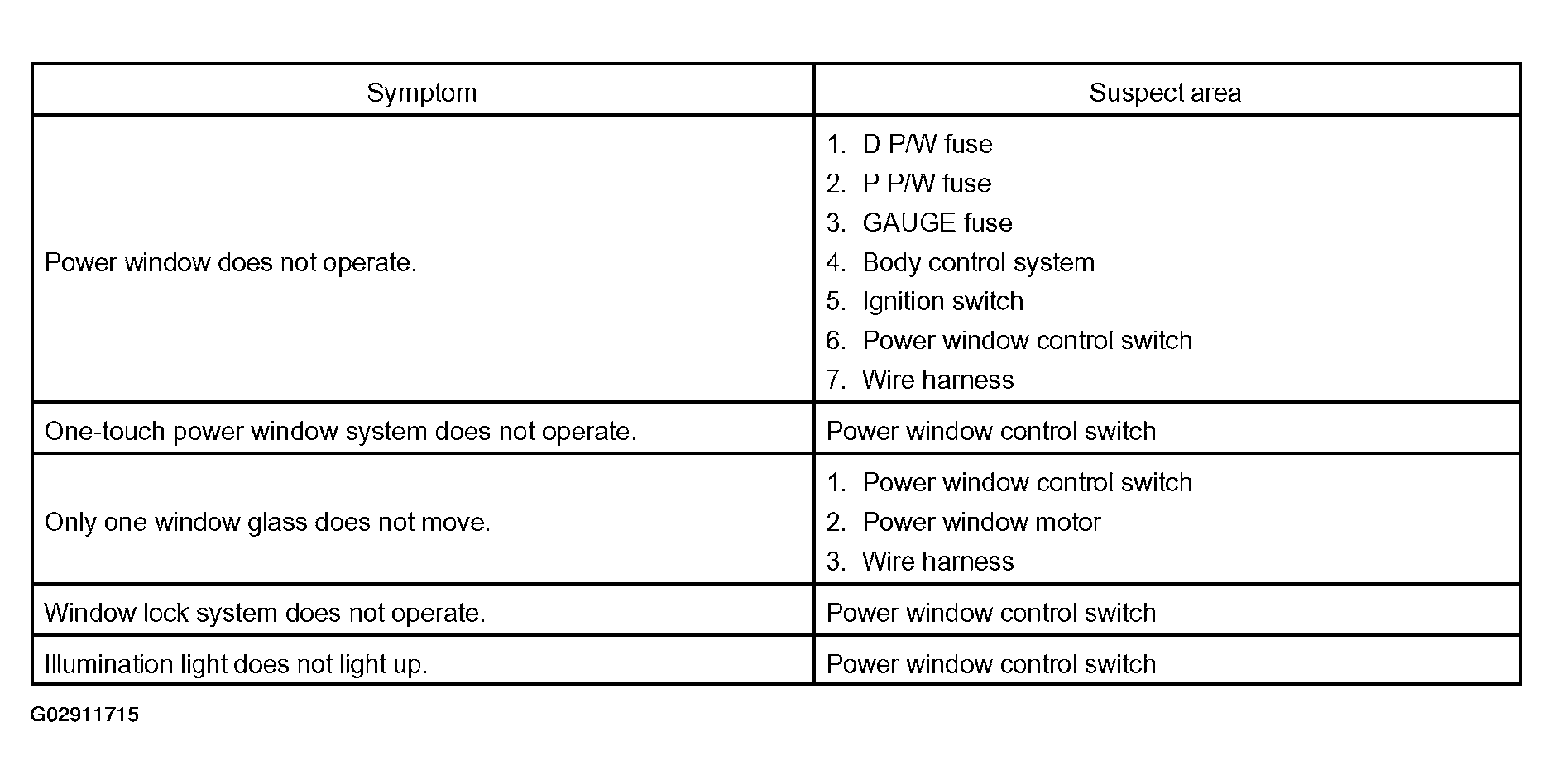

Fig 1: Displaying Power Window Control System Problem Suspect Areas
G02911715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
