Throttle Body ASSY (3MZ-FE): Components

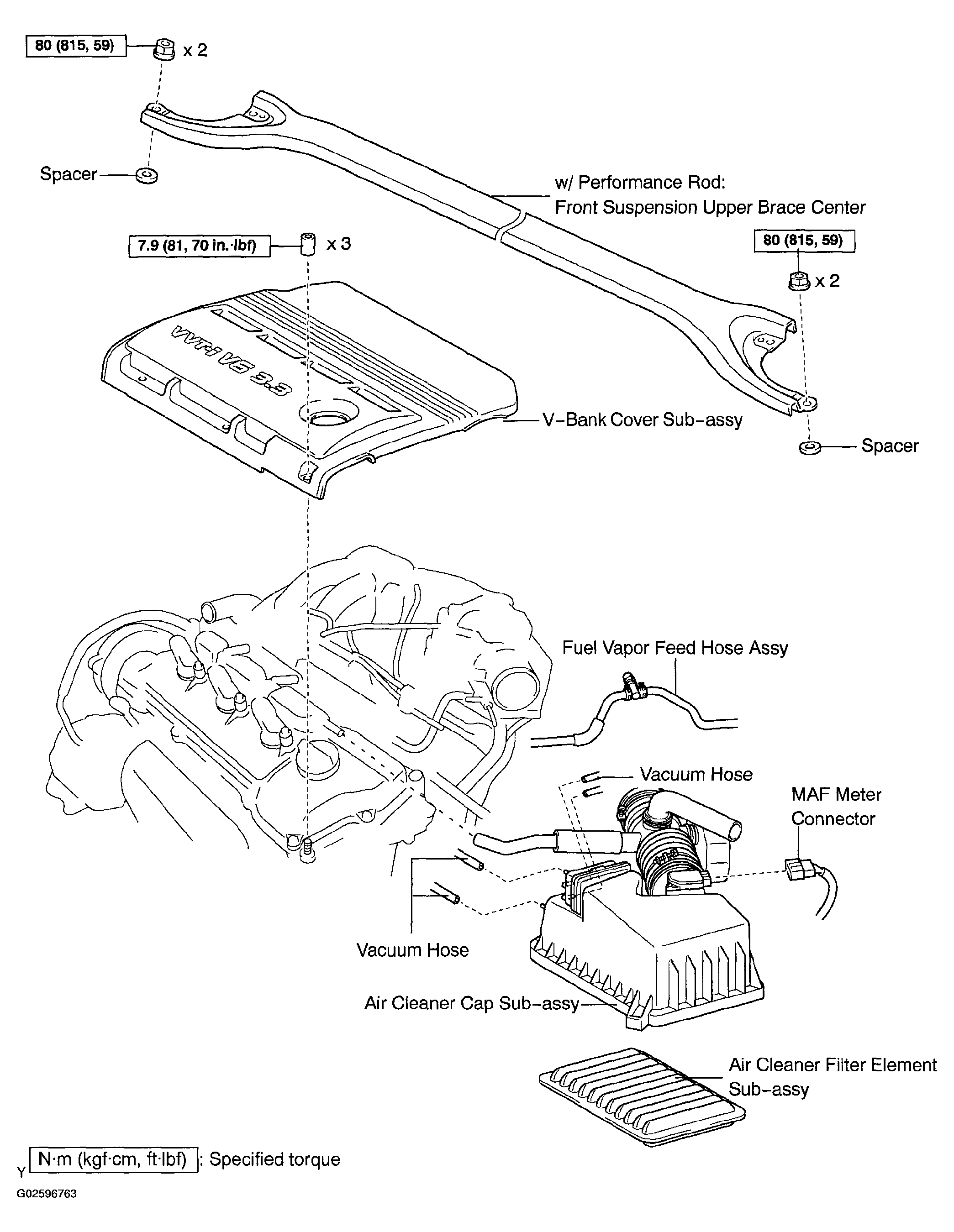

Fig 1: Throttle Body Assy (3MZ-FE) Replacement Components With Torque Specifications (1 Of 2)
G02596763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

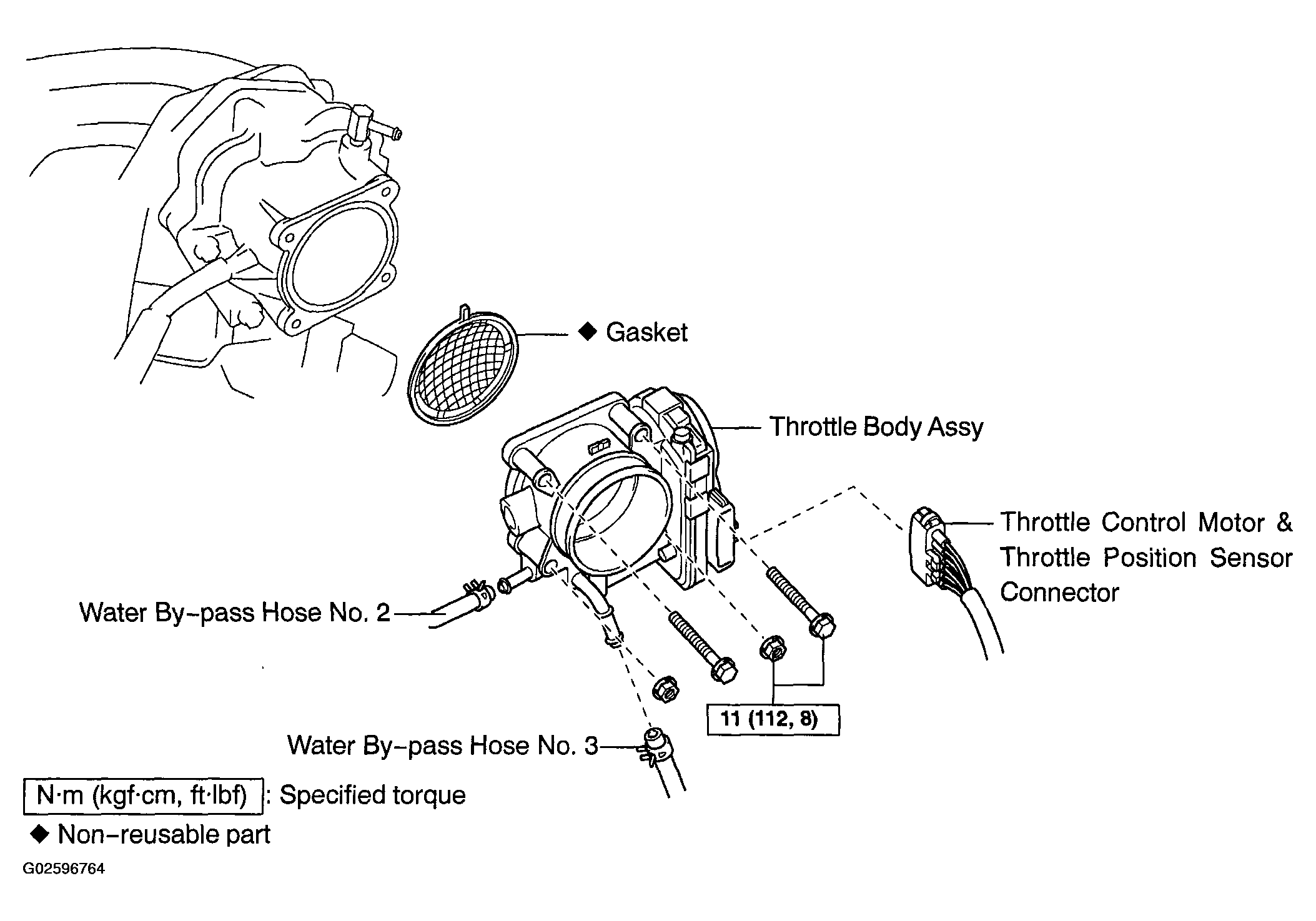

Fig 2: Throttle Body Assy (3MZ-FE) Replacement Components With Torque Specifications (2 Of 2)
G02596764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
