Engine Control System (SFI): Injector: Components

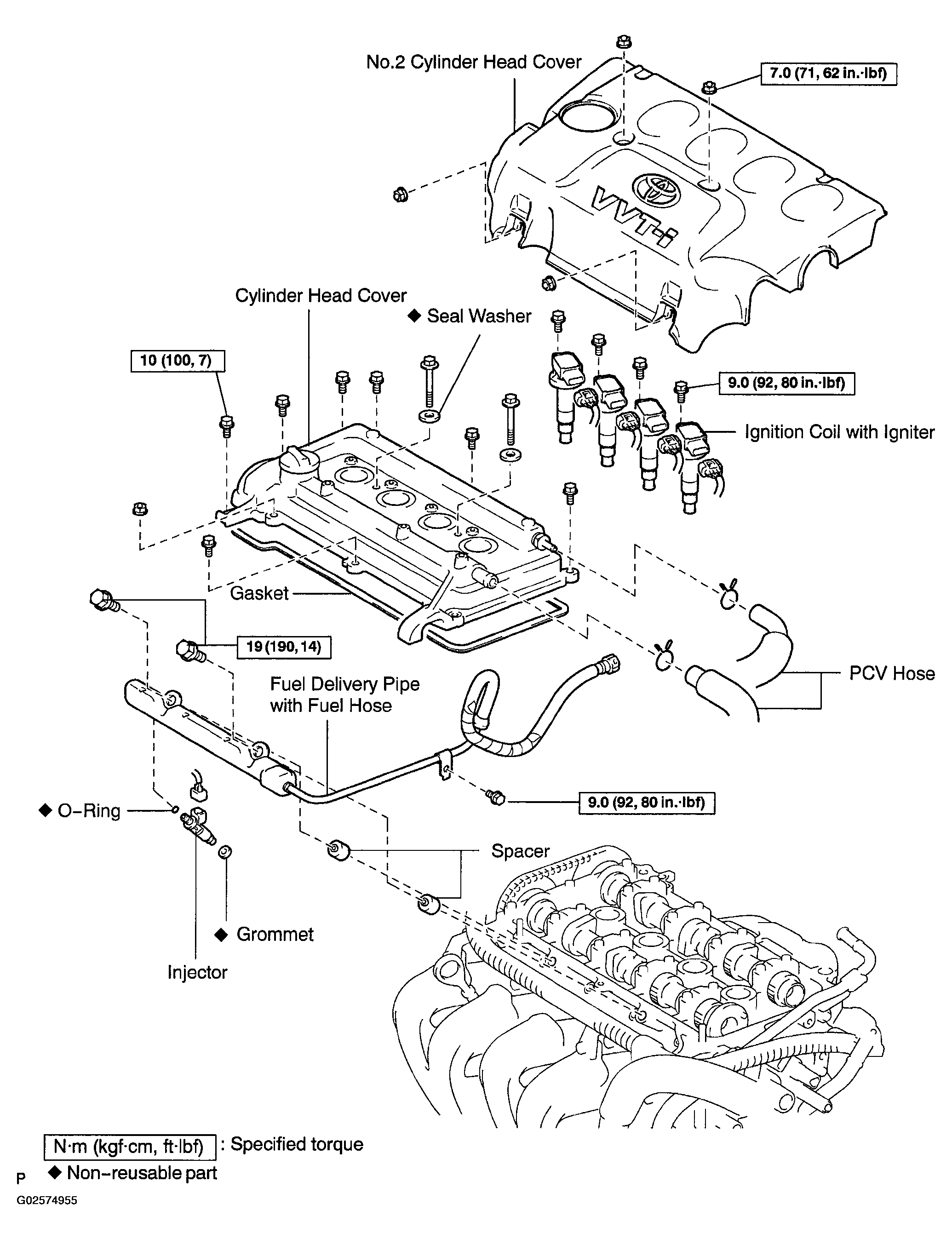

Fig 1: Identifying Cylinder Head Cover Components
G02574955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
