Idle Air Control (IAC) Valve: Removal

  1. REMOVE THROTTLE BODY

    (See  REMOVAL  )

  2. REMOVE IAC VALVE

    Remove the 3 screws, IAC valve and gasket.

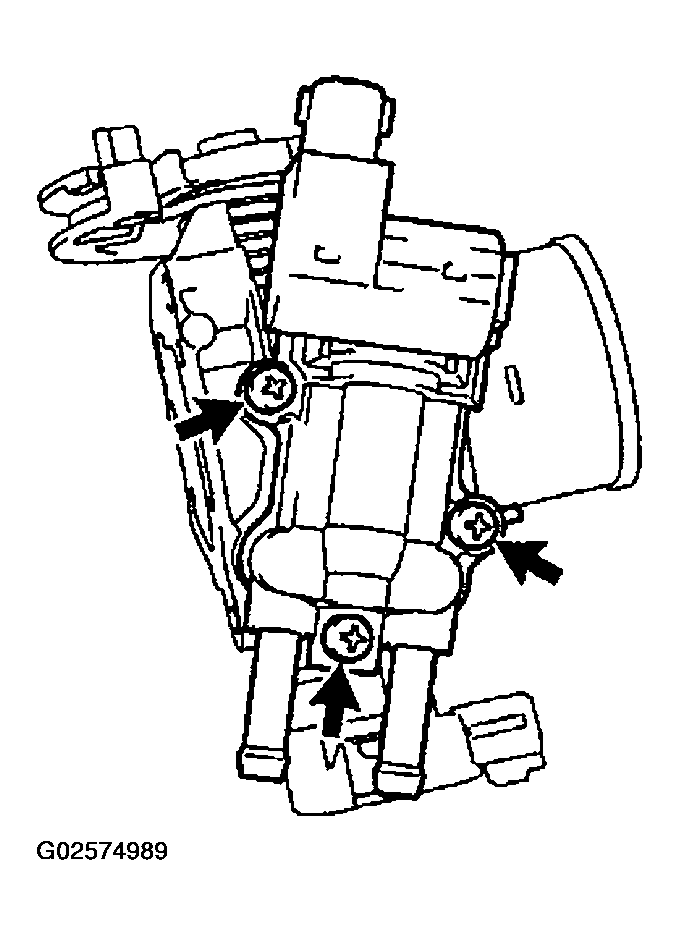

    Fig 1: Removing Screws OF IAC Valve
    G02574989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
