Fuel Tank And Line: Components

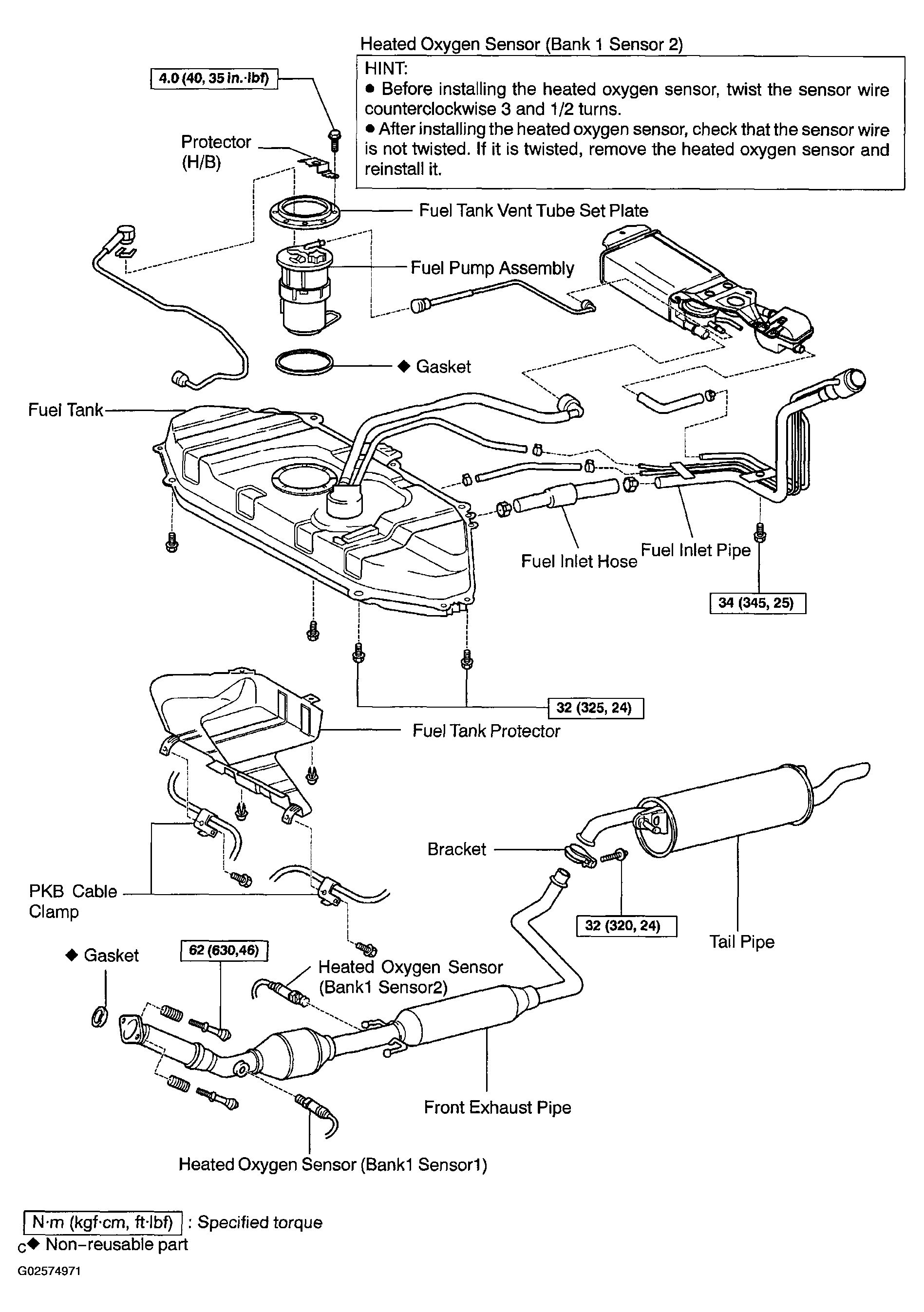

Fig 1: Identifying Fuel Tank And Line Components
G02574971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
