Throttle Body (2ZZ-GE): Components

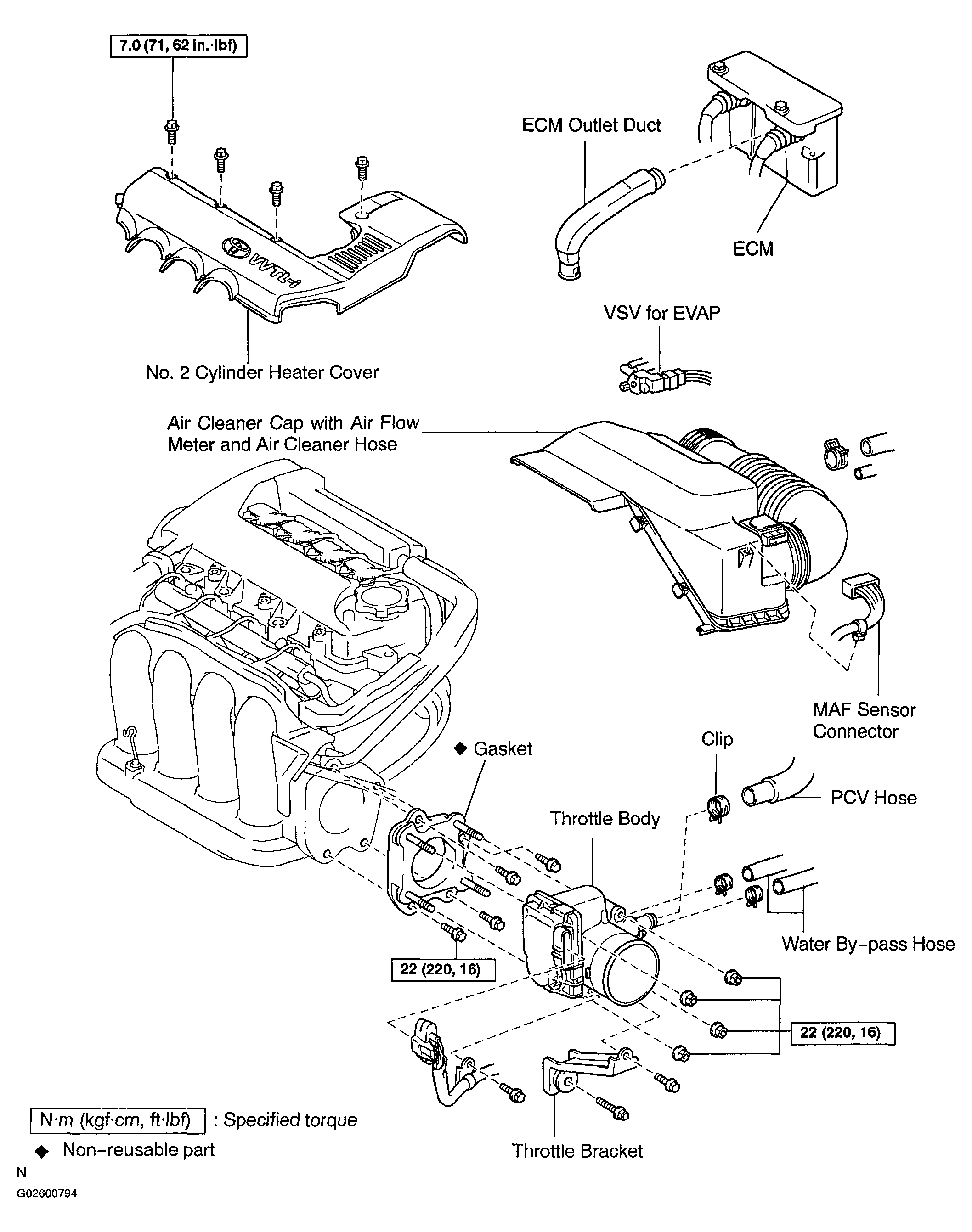

Fig 1: Identifying Throttle Body Components (2ZZ-GE)
G02600794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
