Throttle Body ASSY (2AZ-FE): Components

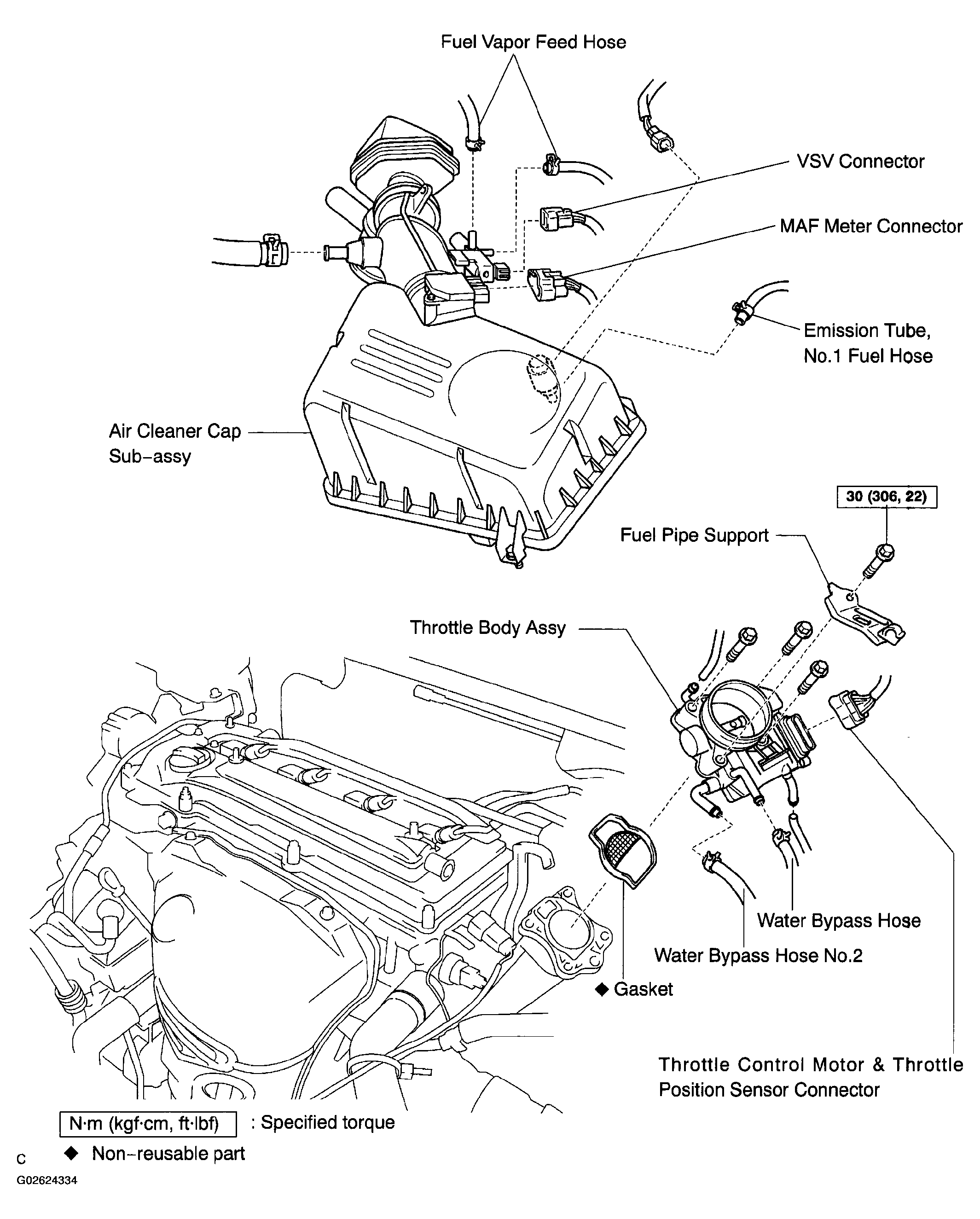

Fig 1: Throttle Body Assembly Connector Terminals With Torque Specifications (2AZ-FE)
G02624334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
