Auto Up/Down Function Circuit (Front Passenger Side): Wiring Diagram

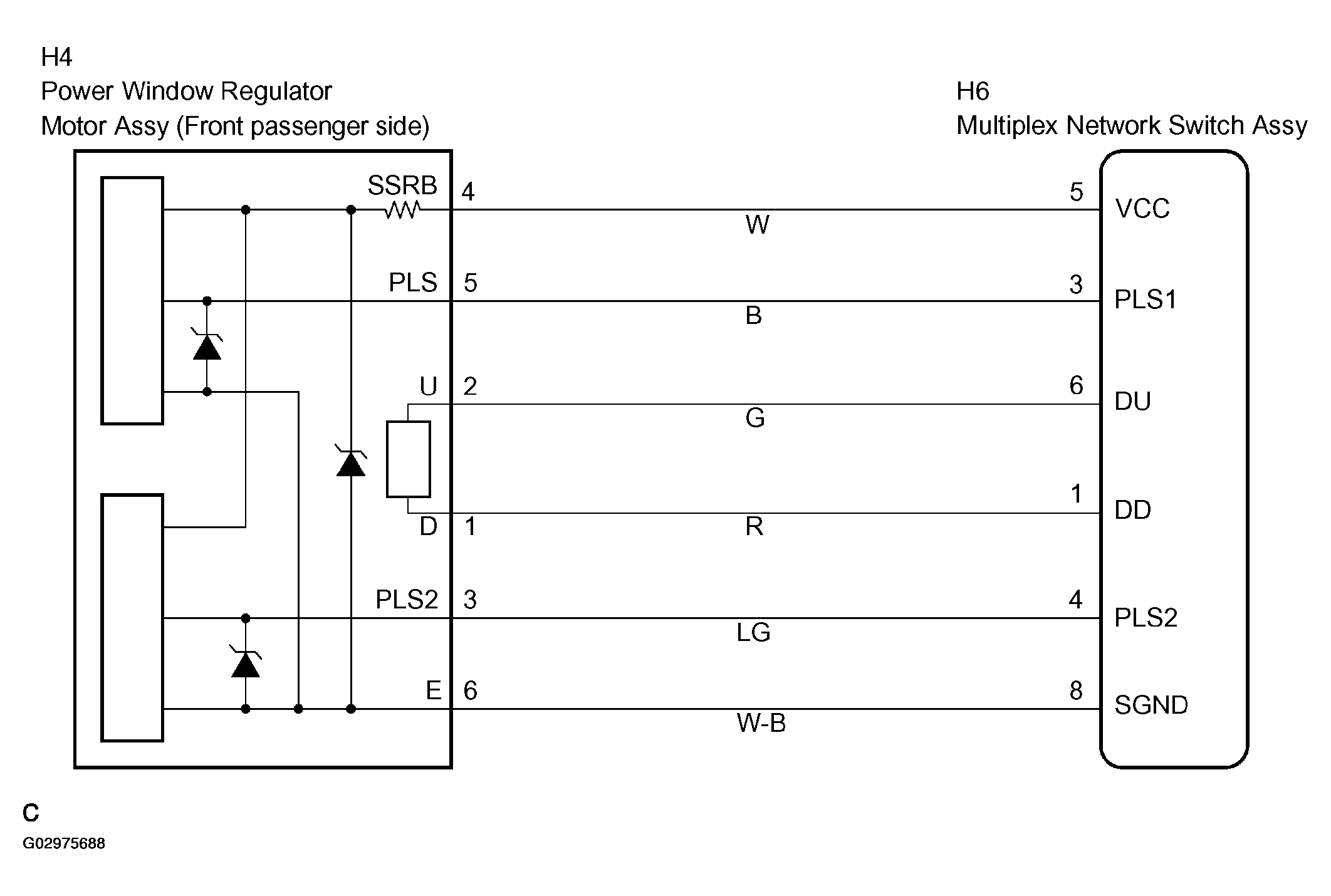

Fig 1: Auto Up/Down Function Wiring Diagram - Front Passenger Side
G02975688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
