DTC Check/Clear

DTC CHECK
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. Read the DTCs on the tester screen.
DTC CLEAR
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. Clear the DTCs following the prompts on the tester screen.

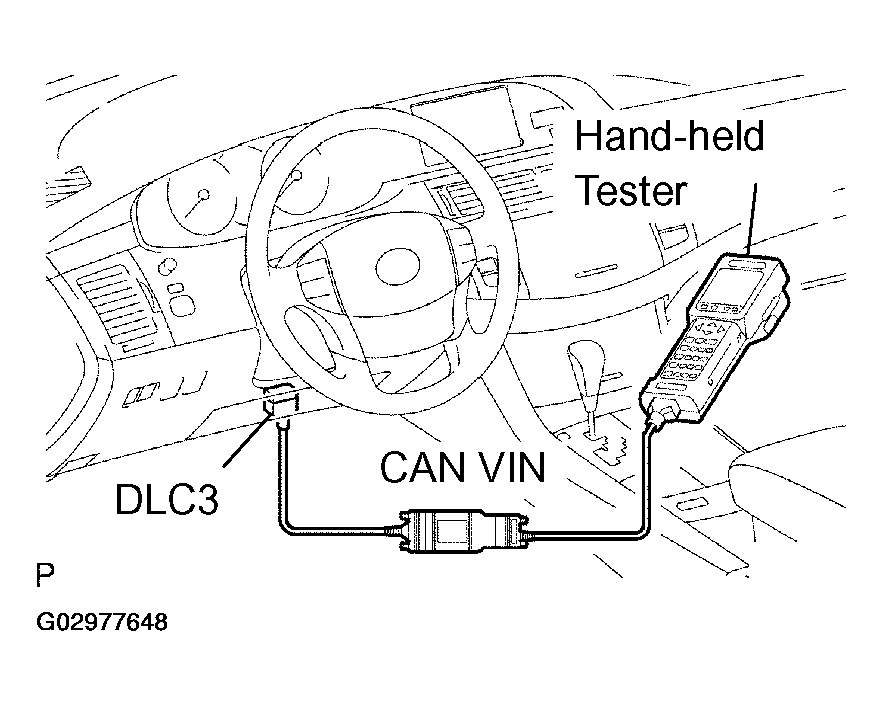

  Fig 1: Connecting Hand-Held Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
