Network Gateway Ecu: Replacement

HINT:

• See LOCATION
• Installation is in the reverse order of removal.

1. TABLE OF BOLT, SCREW AND NUT (SEE  REPLACEMENT  )
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE  PRECAUTION  )

   Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/FRONT PASSENGER AIRBAG ASSY (SEE REPLACEMENT )

   HINT:

   Refer to the procedures up to the removal of the instrument panel safety pad sub-assy w/front passenger airbag assy.

4. REMOVE NETWORK GATEWAY ECU
   1. Disconnect the connector.
   2. Disengage the 2 claw and remove the ECU aggregation cover No.1.

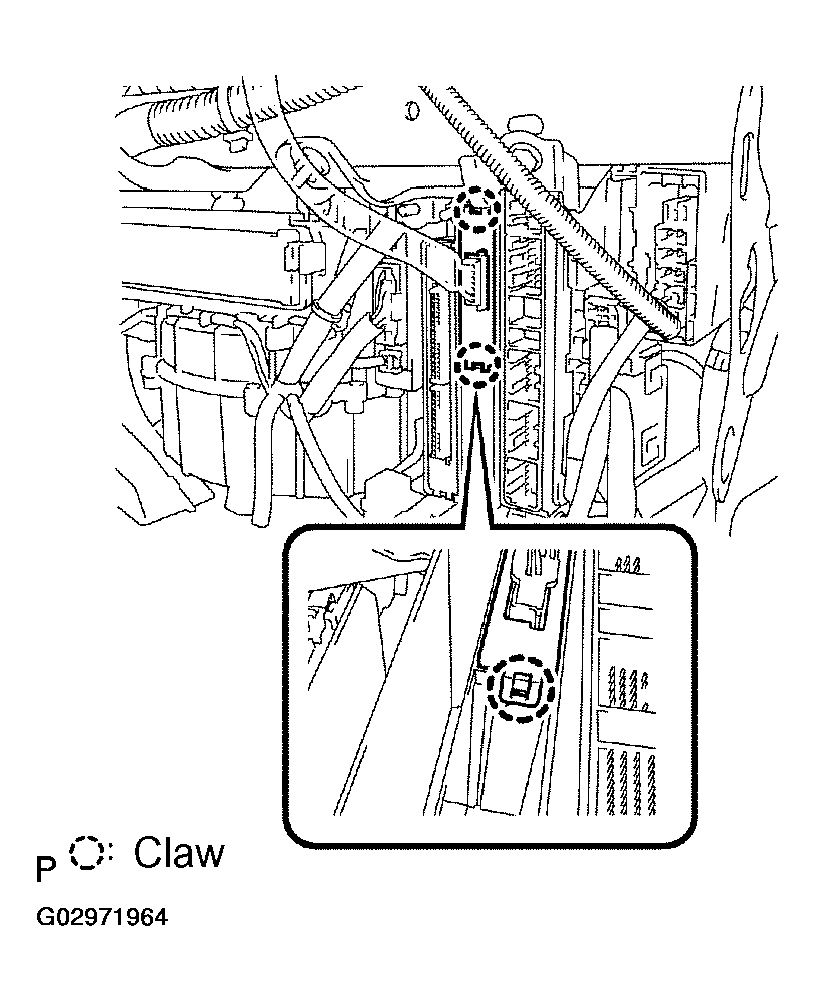

      Fig 1: Disengaging Claw & Removing ECU Aggregation Cover No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the network gateway ECU assy as shown in the illustration.

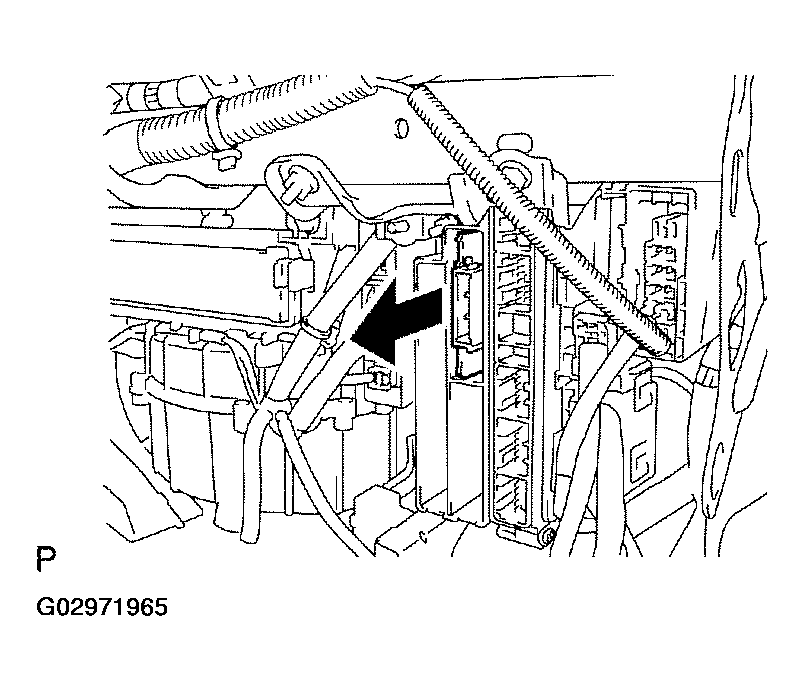

      Fig 2: Removing Network Gateway ECU Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/FRONT PASSENGER AIRBAG ASSY (SEE  REPLACEMENT  )
6. CENTER SPIRAL CABLE (SEE  REPLACEMENT  )
7. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
8. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

    Some systems need initialization when disconnecting the cable from the negative battery terminal.

11. INSPECT HORN BUTTON ASSY (SEE  REPLACEMENT  )
12. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
