Throttle W/Motor Body ASSY (1GR-FE): Components

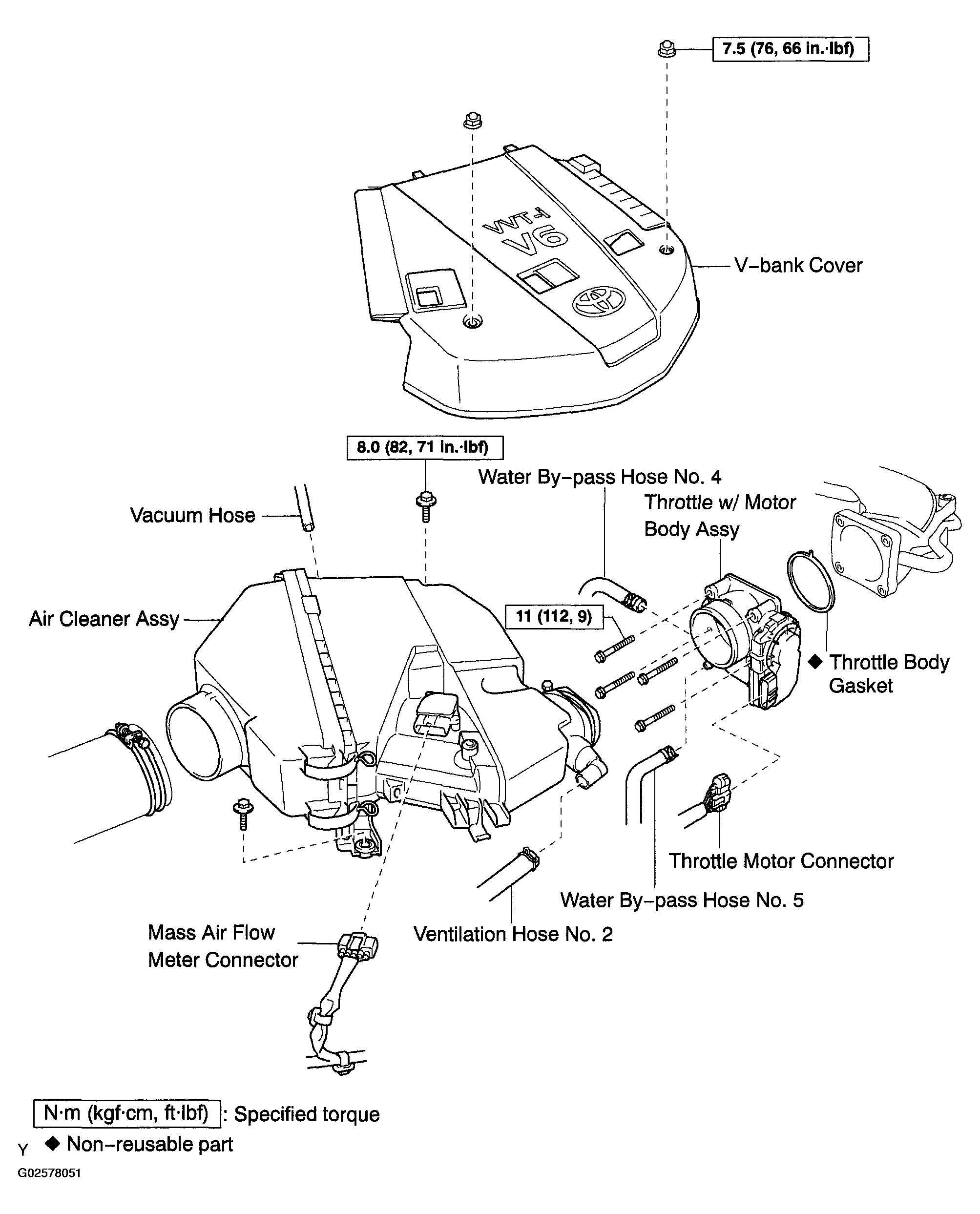

Fig 1: Identifying W/Motor Body Assy Components (1GR-FE)
G02578051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
