Glossary Of Sae And TOYOTA Terms

This glossary lists all SAE-J1930 terms and abbreviations used in compliance with SAE recommendations, as well as their TOYOTA equivalents.

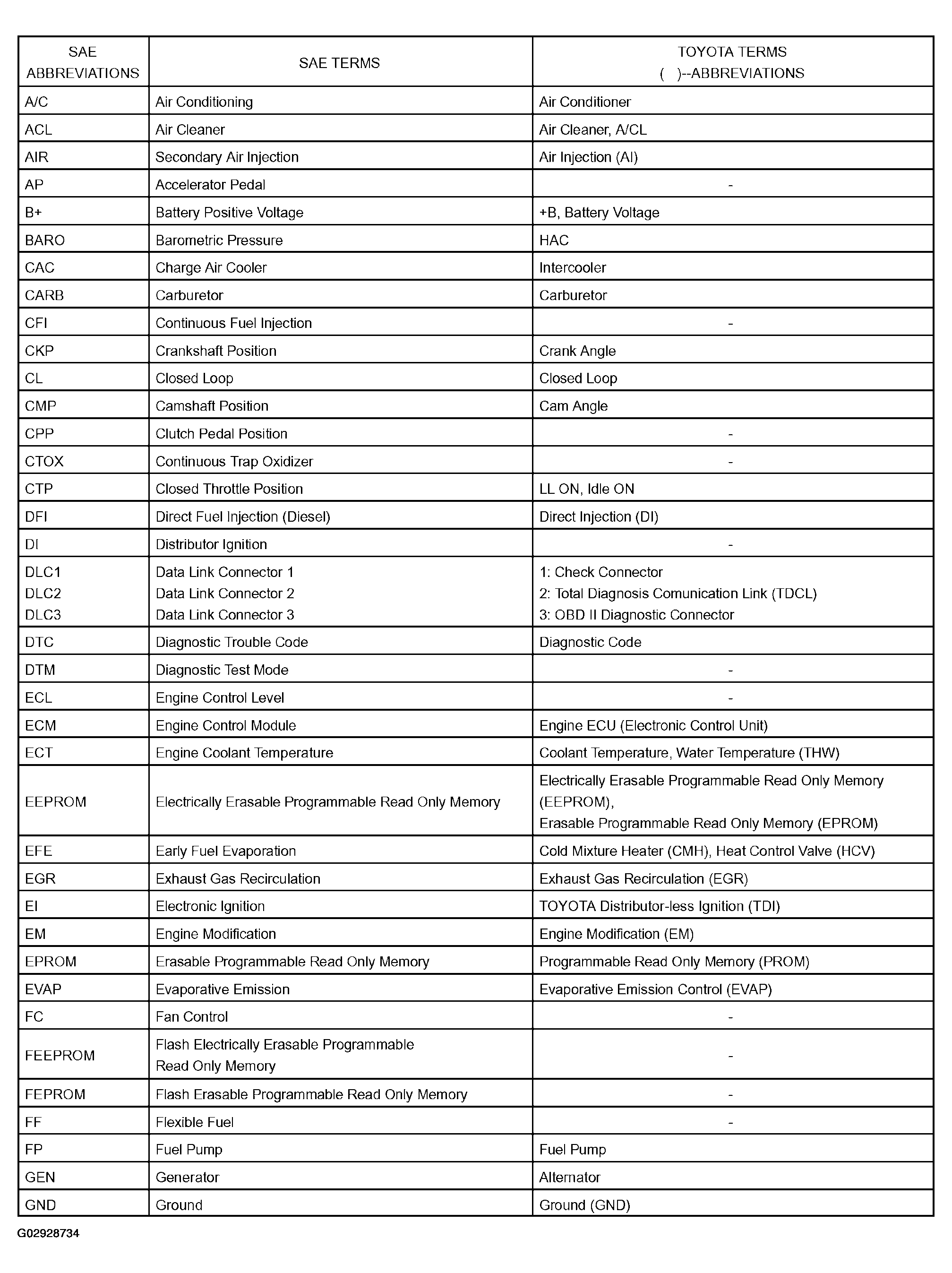

Fig 1: Toyota Terms Abbreviations Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

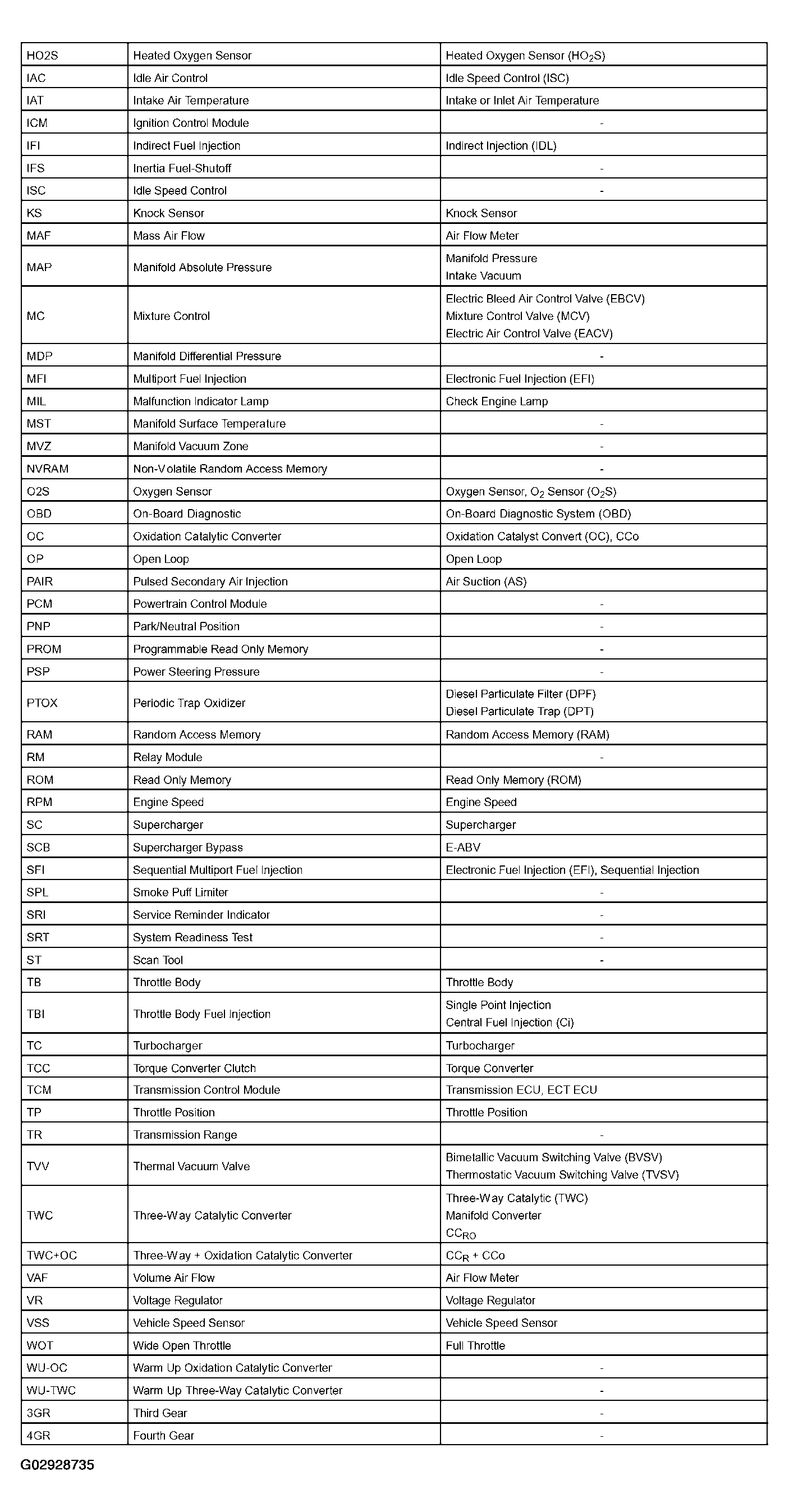

Fig 2: Toyota Terms Abbreviations Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
