Power source circuit (Multi-display controller sub-assy): Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

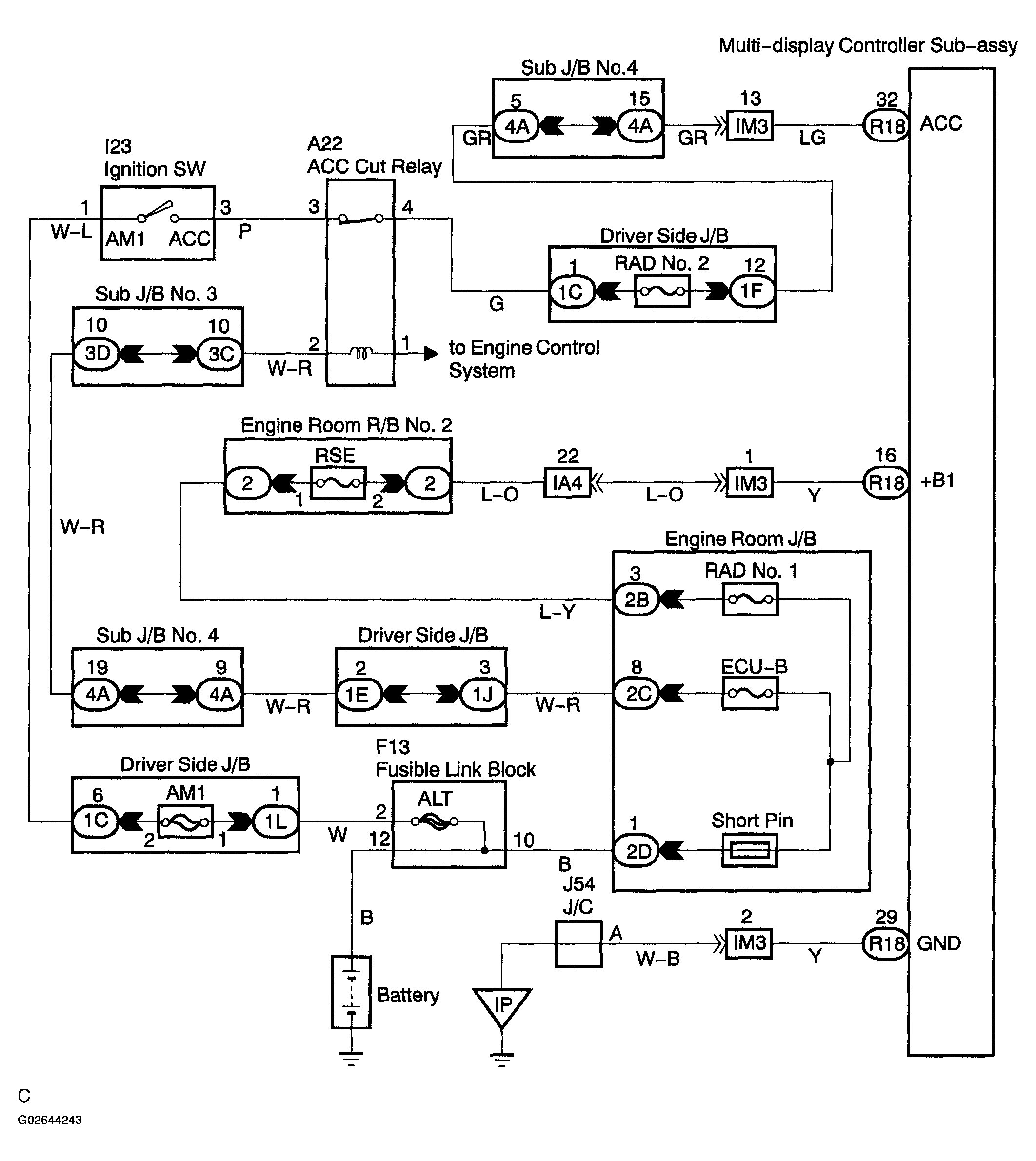

Fig 1: Wiring Diagram - Power Source Circuit (Multi-Display Controller Sub-Assy)
G02644243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
