Data List / Active Test
WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
- DATA LIST
HINT:
Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON.
- Read the DATA LIST according to the display on the tester.
- ACTIVE TEST
HINT:
Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten the labor time. The DATA LIST can be displayed during the ACTIVE TEST.
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON.
- Perform the ACTIVE TEST according to the display on the tester.
ACTIVE TEST

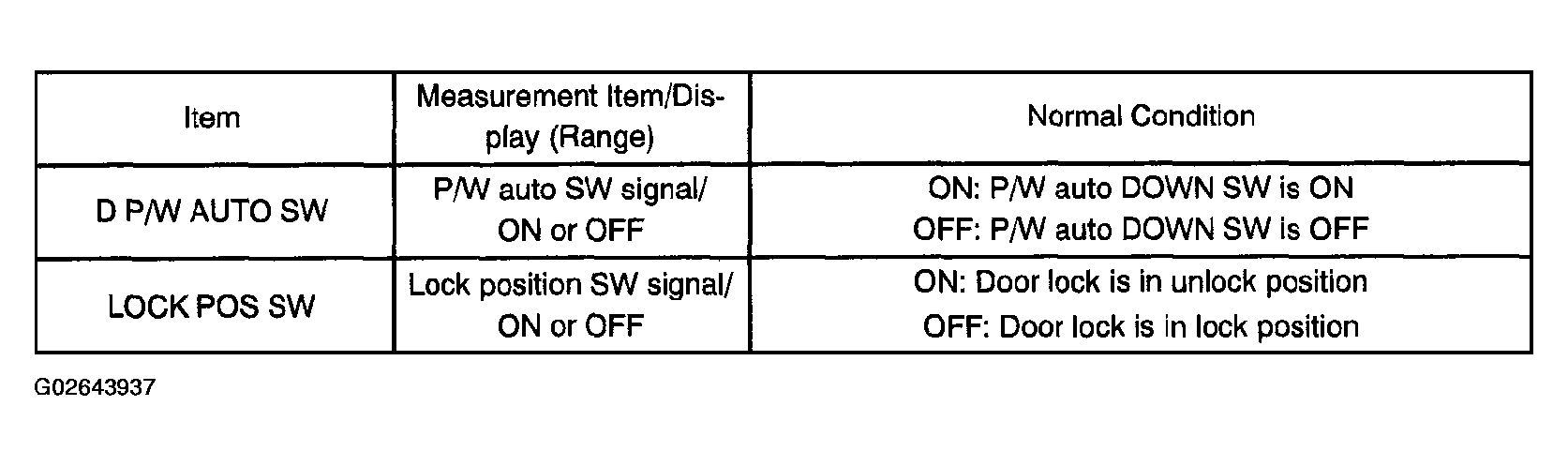

| Item | Test Details | Diagnostic Note |
|---|---|---|
| P/W UP/DOWN | Drive P/W motor UP/DOWN | (Refer to DATA LIST for details) |
