Terminals Of Ecu

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

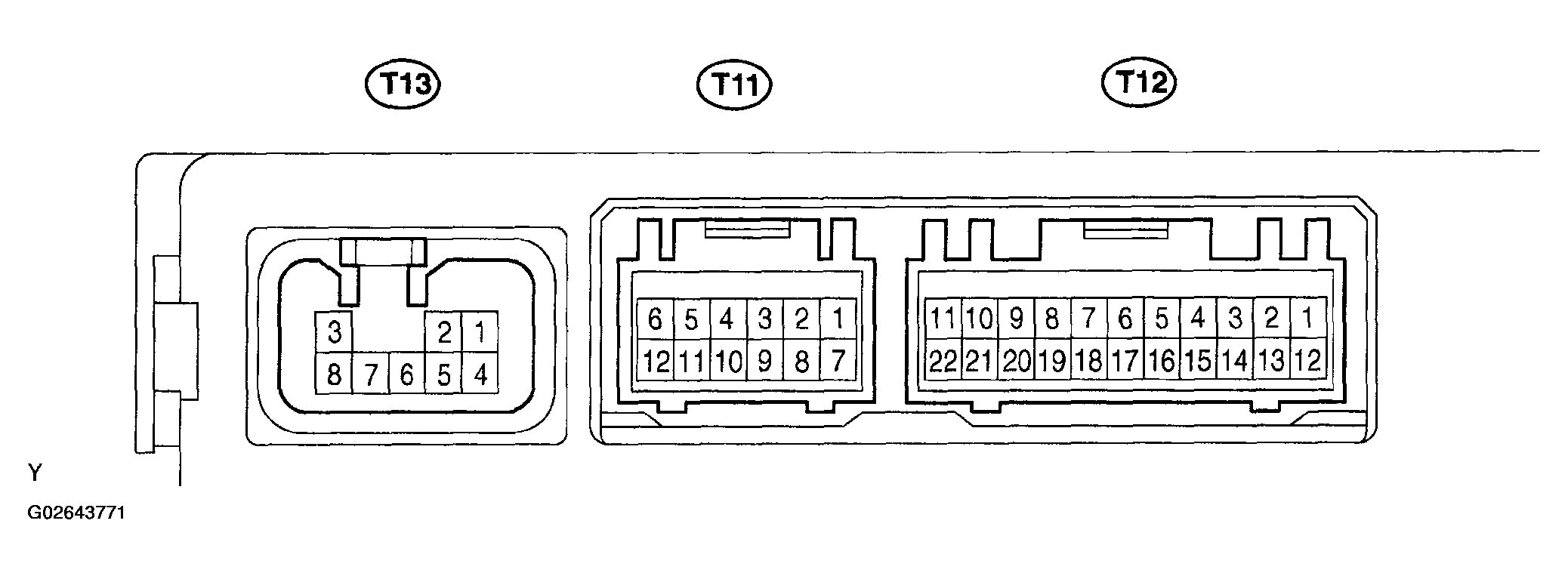

Fig 1: Identifying Terminals Of ECU (1 Of 3)
G02643771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

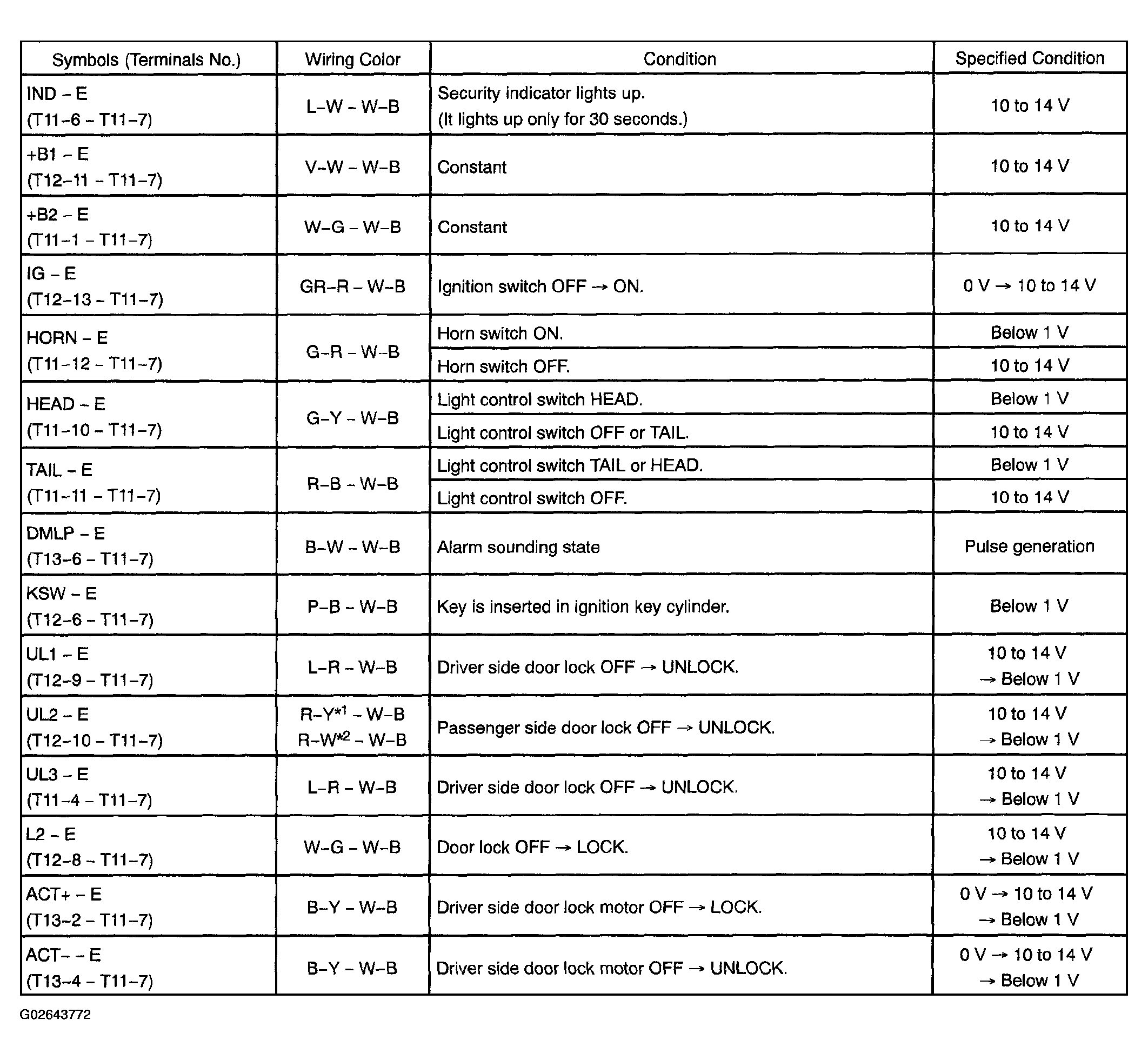

Fig 2: Identifying Terminals Of ECU (2 Of 3)
G02643772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

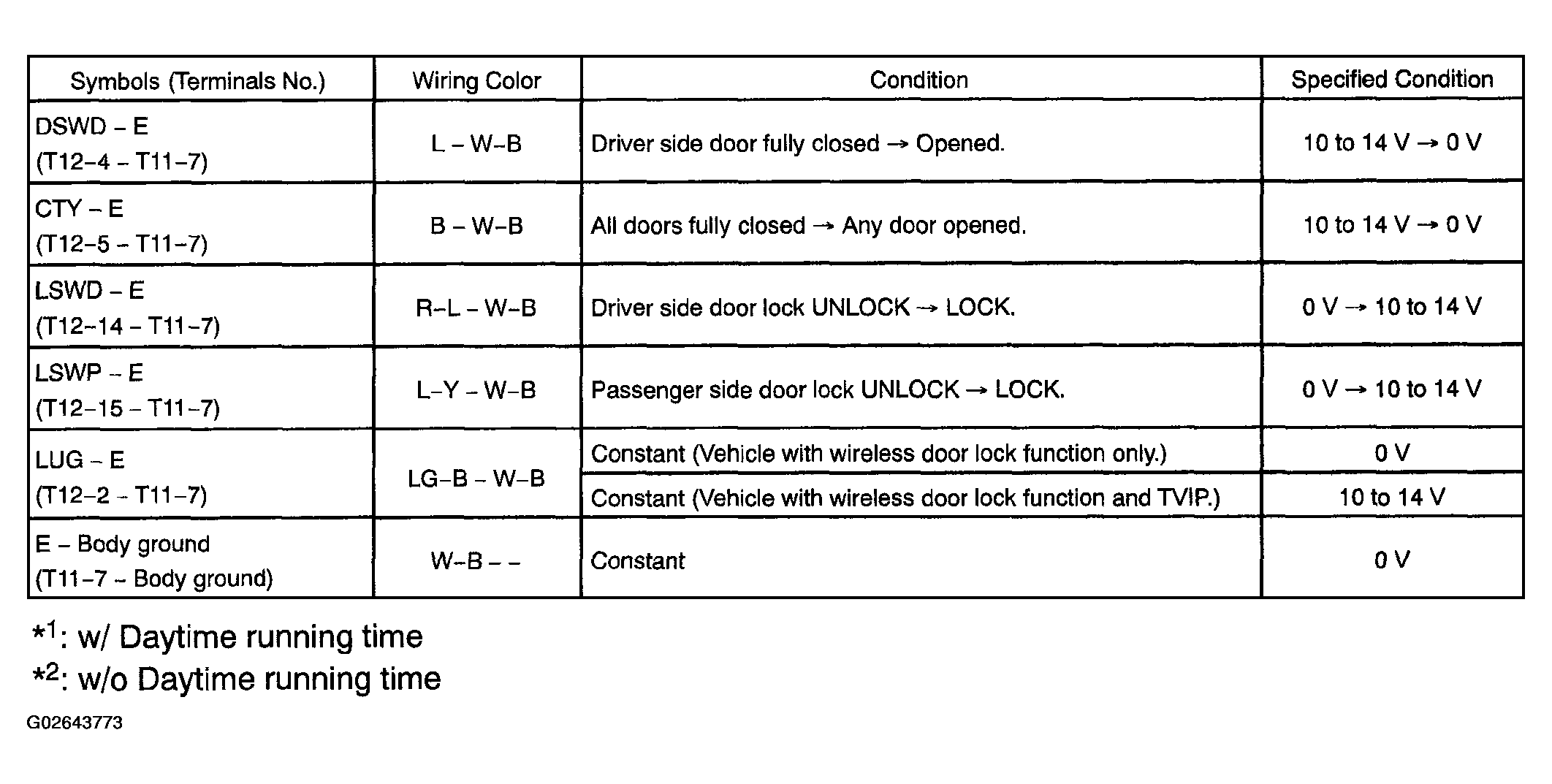

Fig 3: Identifying Terminals Of ECU (3 Of 3)
G02643773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
