Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Check security indicator.
Set the system in 30 seconds after filliping the security indicator to check that the alarm is triggered.
1. OK : No problem.
2. NG : Go to next step
Inspect glass breakage sensor.
PREPARATION:

Disconnect the S10 glass breakage sensor connector.

CHECK:

Check the continuity between the terminals of the wire harness side connector.

Fig 1: Inspecting Glass Breakage Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

Fig 2: Glass Breakage Sensor Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Replace glass breakage sensor.
2. OK : Go to next step.
Check harness and connector between TVIP ECU and glass breakage sensor.
PREPARATION:
1. Disconnect the T12 TVIP ECU connector.
2. Disconnect the S10 glass breakage sensor connector.
CHECK:

Check the continuity between the wire harness side connectors.

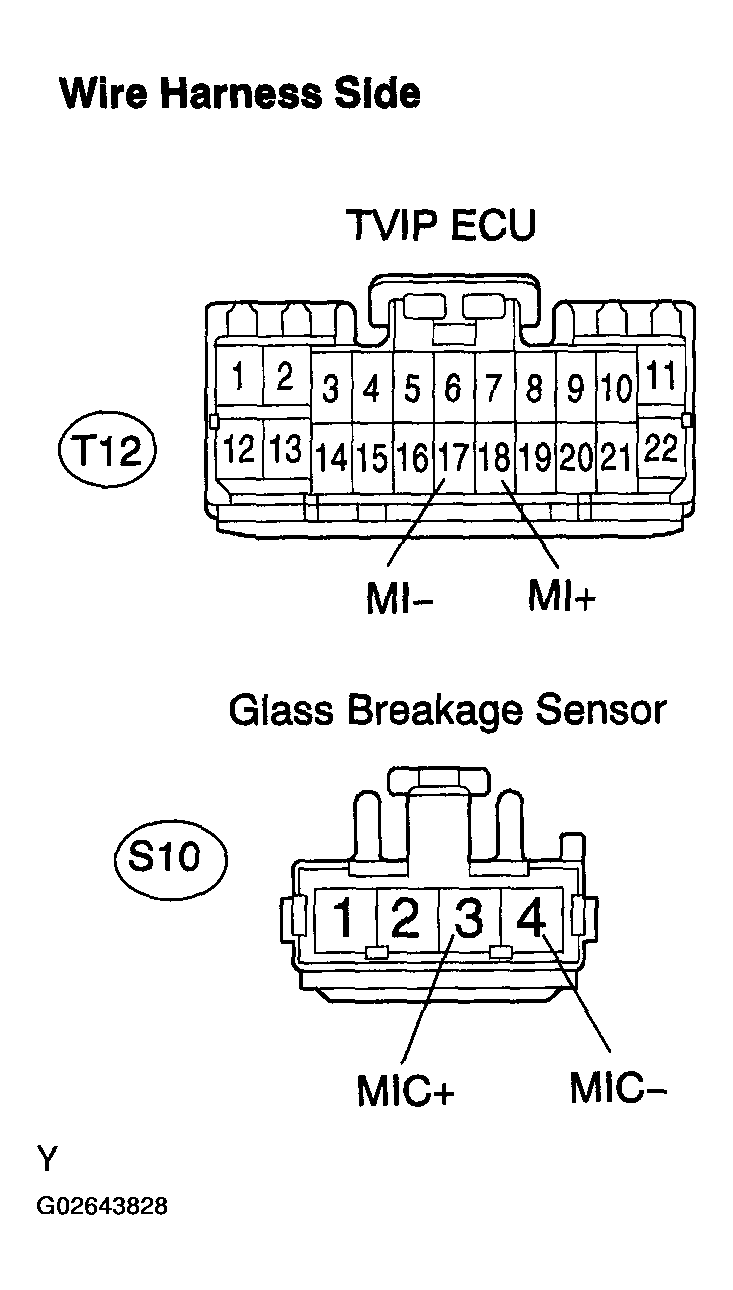

Fig 3: Checking And Connector Between TVIP ECU And Glass Breakage Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

Fig 4: TVIP ECU And Glass Breakage Sensor Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG : Repair or replace harness or connector.
2. OK : Replace TVIP ECU.
