Camshaft Position Sensor (5VZ-FE): Components

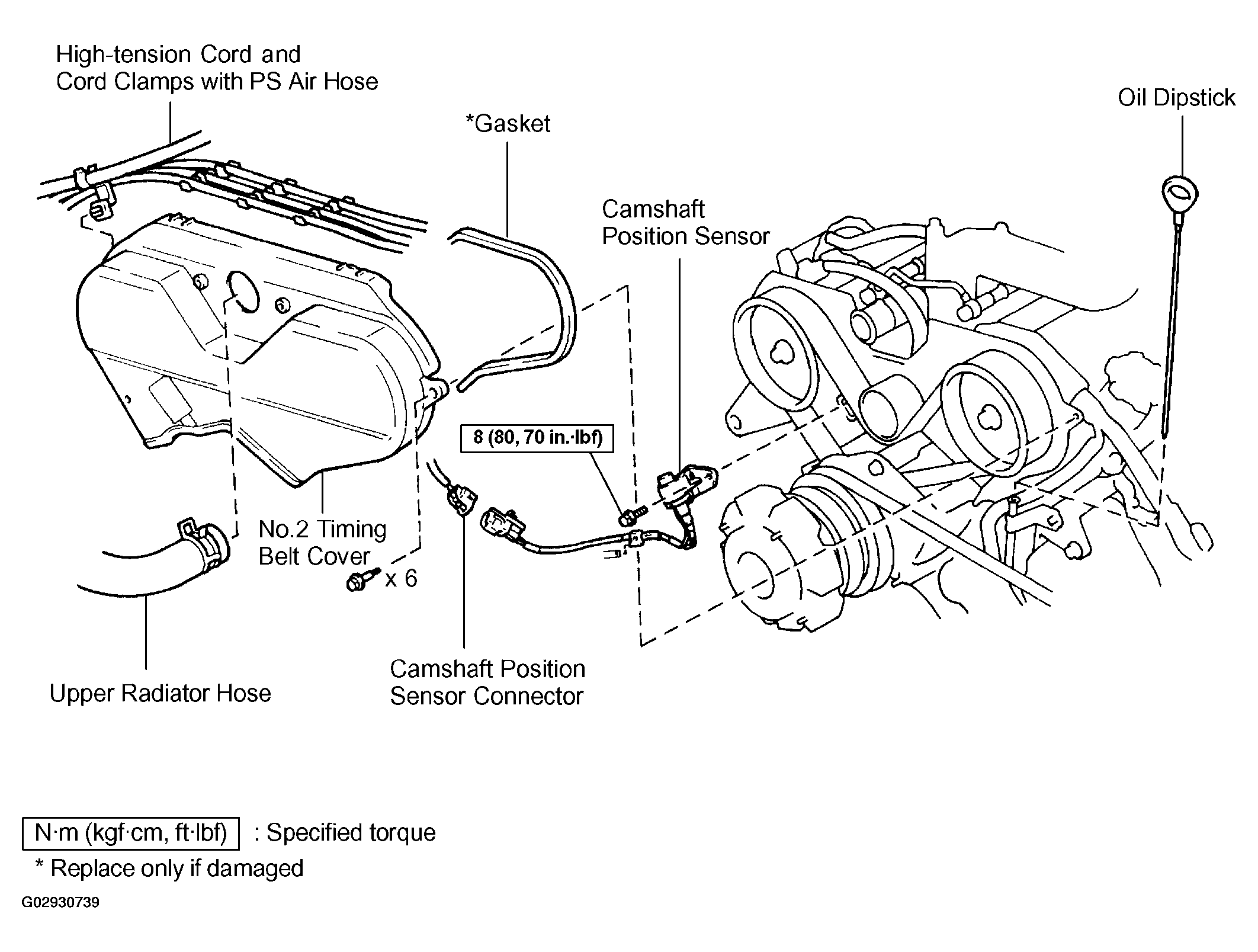

Fig 1: Identifying Camshaft Position Sensor Components
G02930739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
