Light Control Switch Circuit: Wiring Diagram

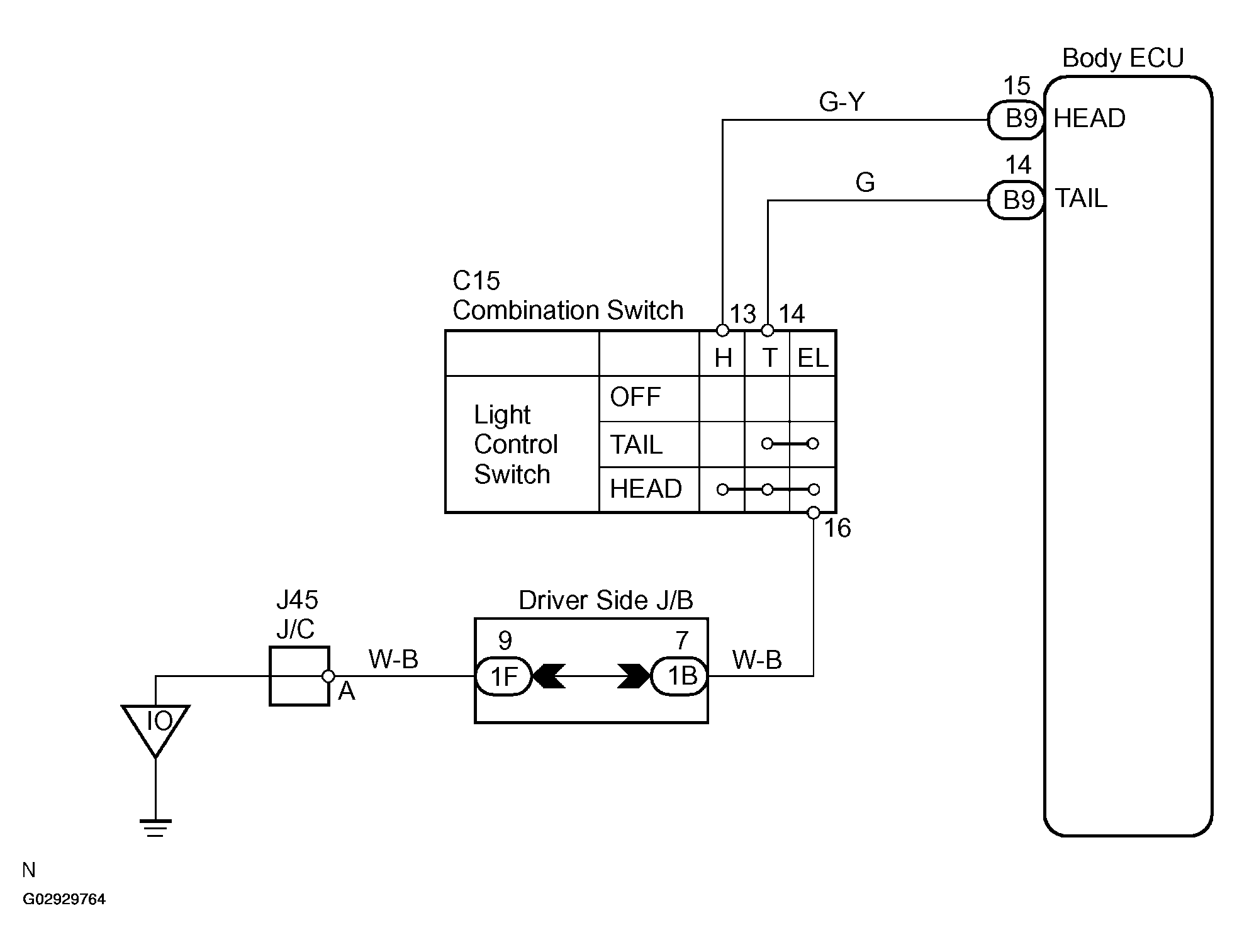

Fig 1: Light Control Switch-Wiring Diagram
G02929764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
