Toyota
>>
2004
>>
Tundra Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transmission Control System - Diagnostics
>>
O/D Off Indicator Light Does Not Light Up
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
O/D Off Indicator Light Does Not Light Up: Wiring Diagram

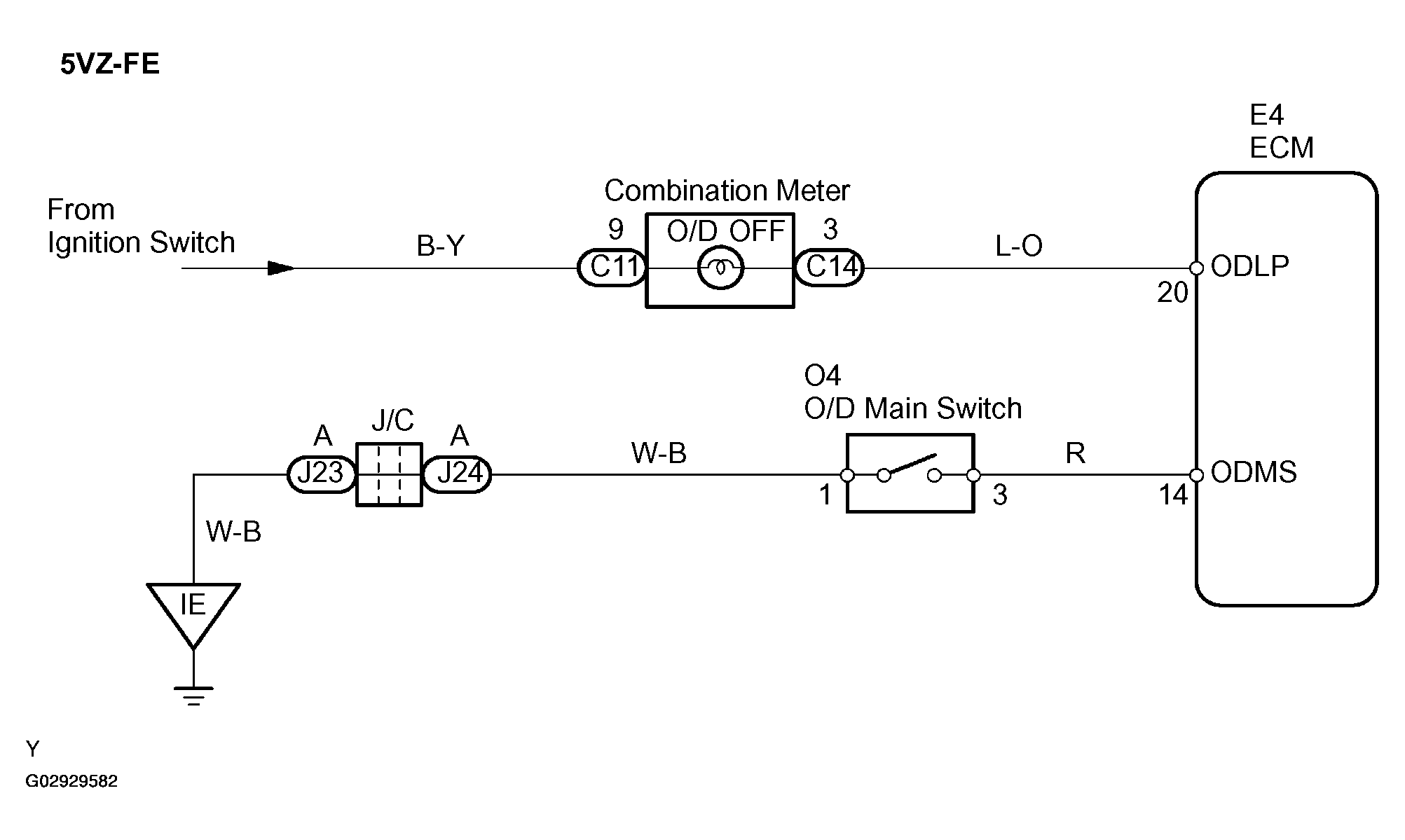

Fig 1: Identifying O/D Off Indicator Light Wiring Diagram Of 5VZ-FE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

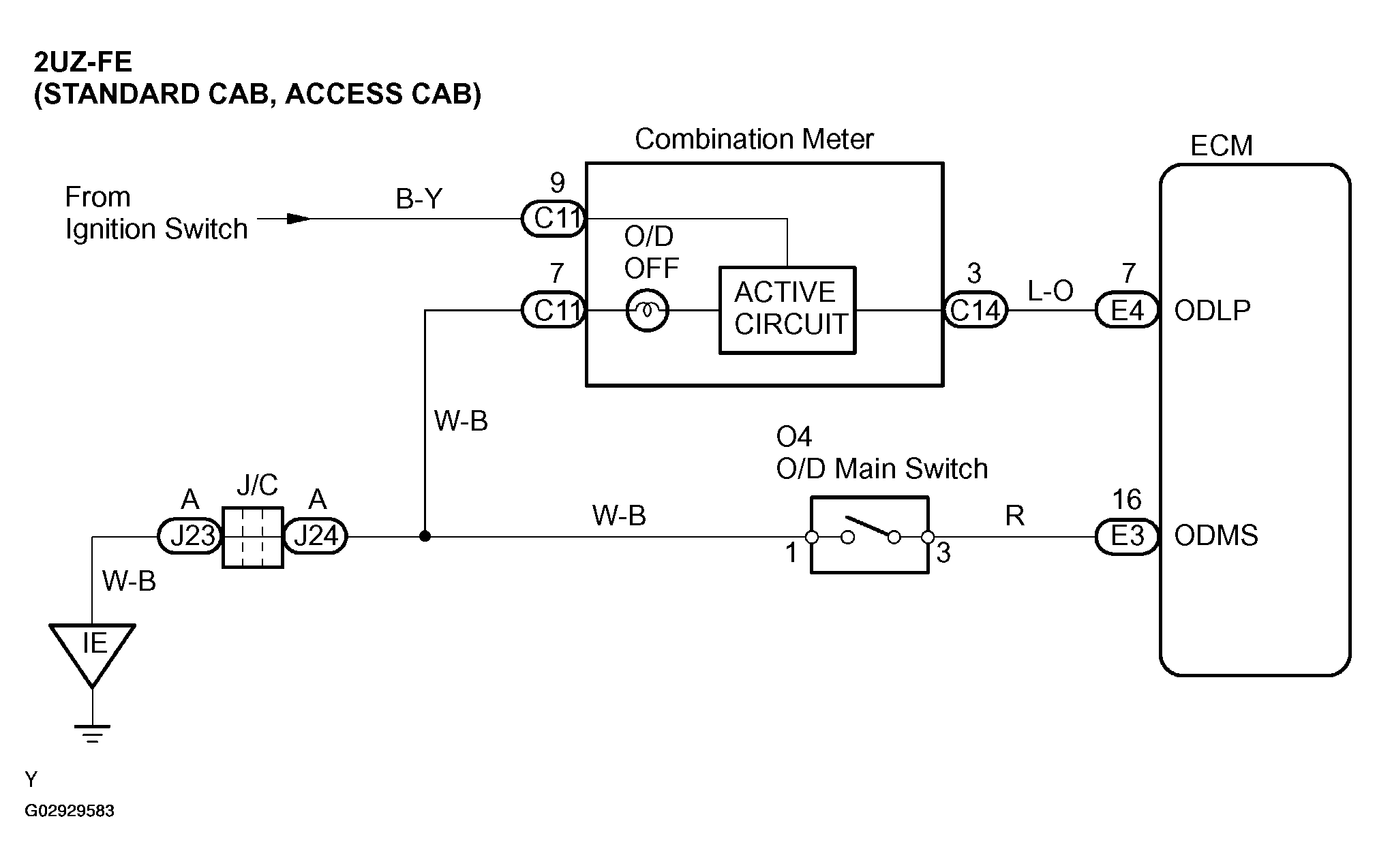

Fig 2: Wiring Diagram (Standard Cab & Access Cab (2VZ-FE))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram (Double Cab (2VZ-FE))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
