Front Door: Components

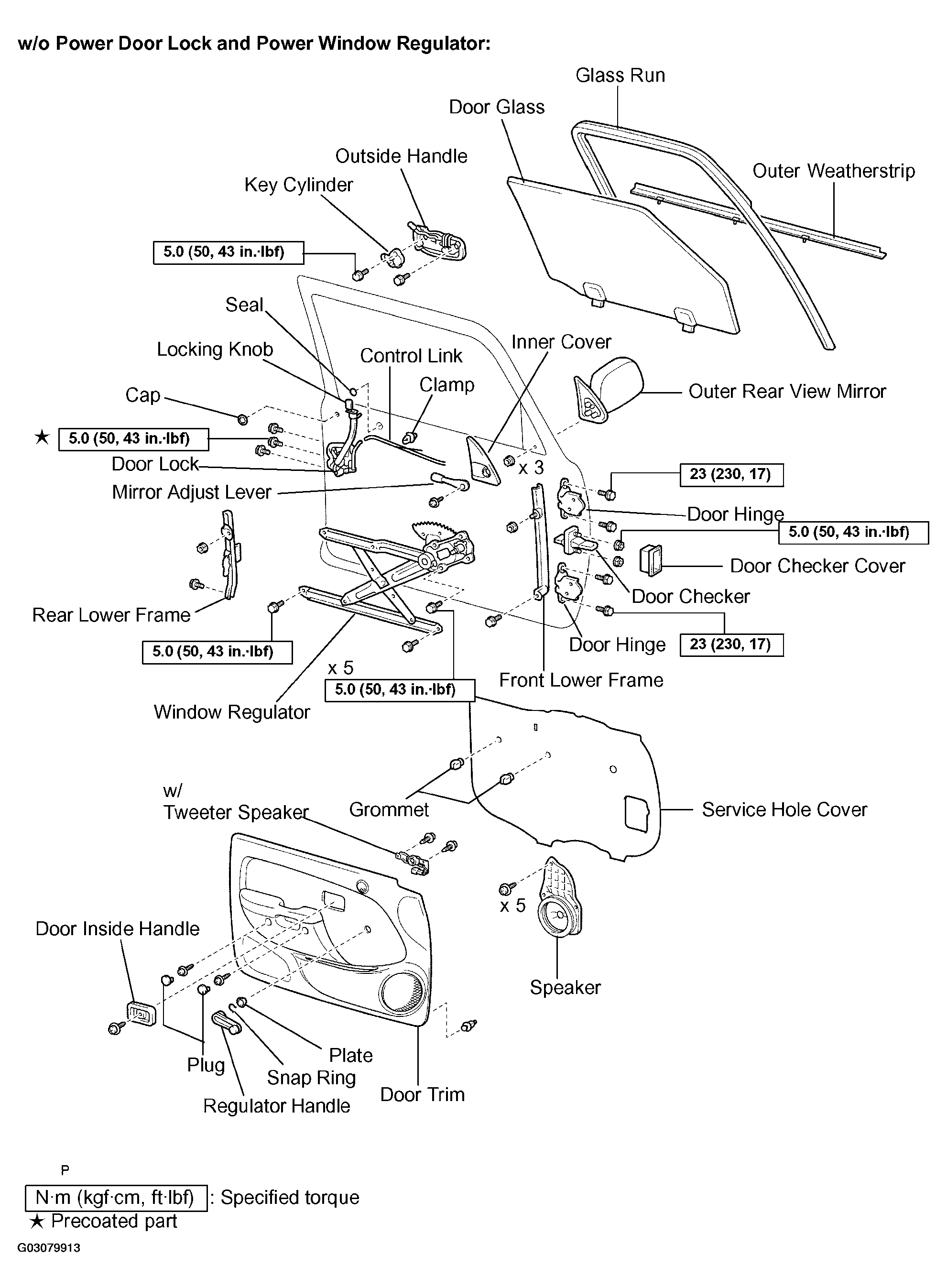

Fig 1: Front Door Components (w/o Power Door Lock & Power Window Regulator)
G03079913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

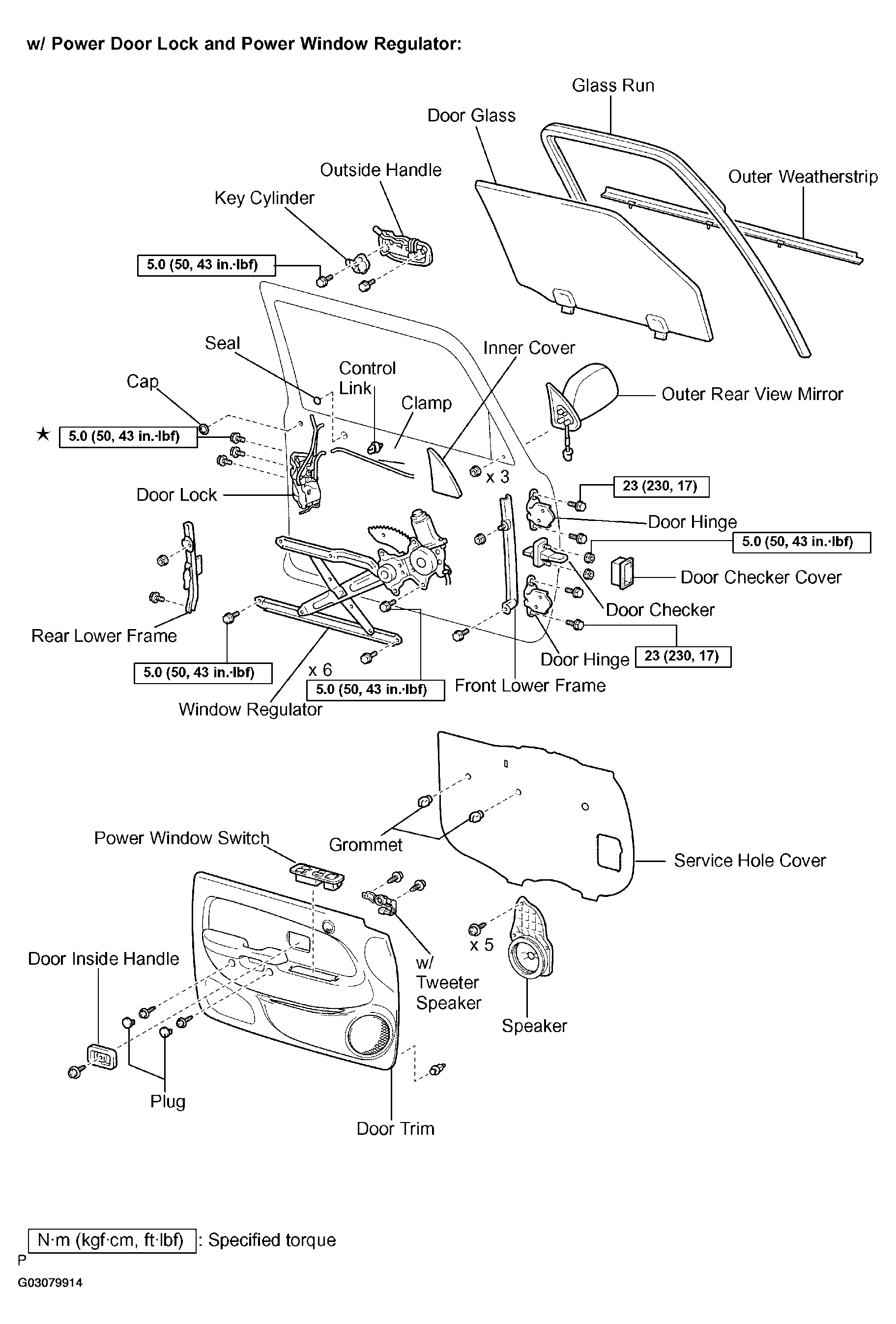

Fig 2: Front Door Components (W/ Power Door Lock & Power Window Regulator)
G03079914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
