Headlight And Tail Light System

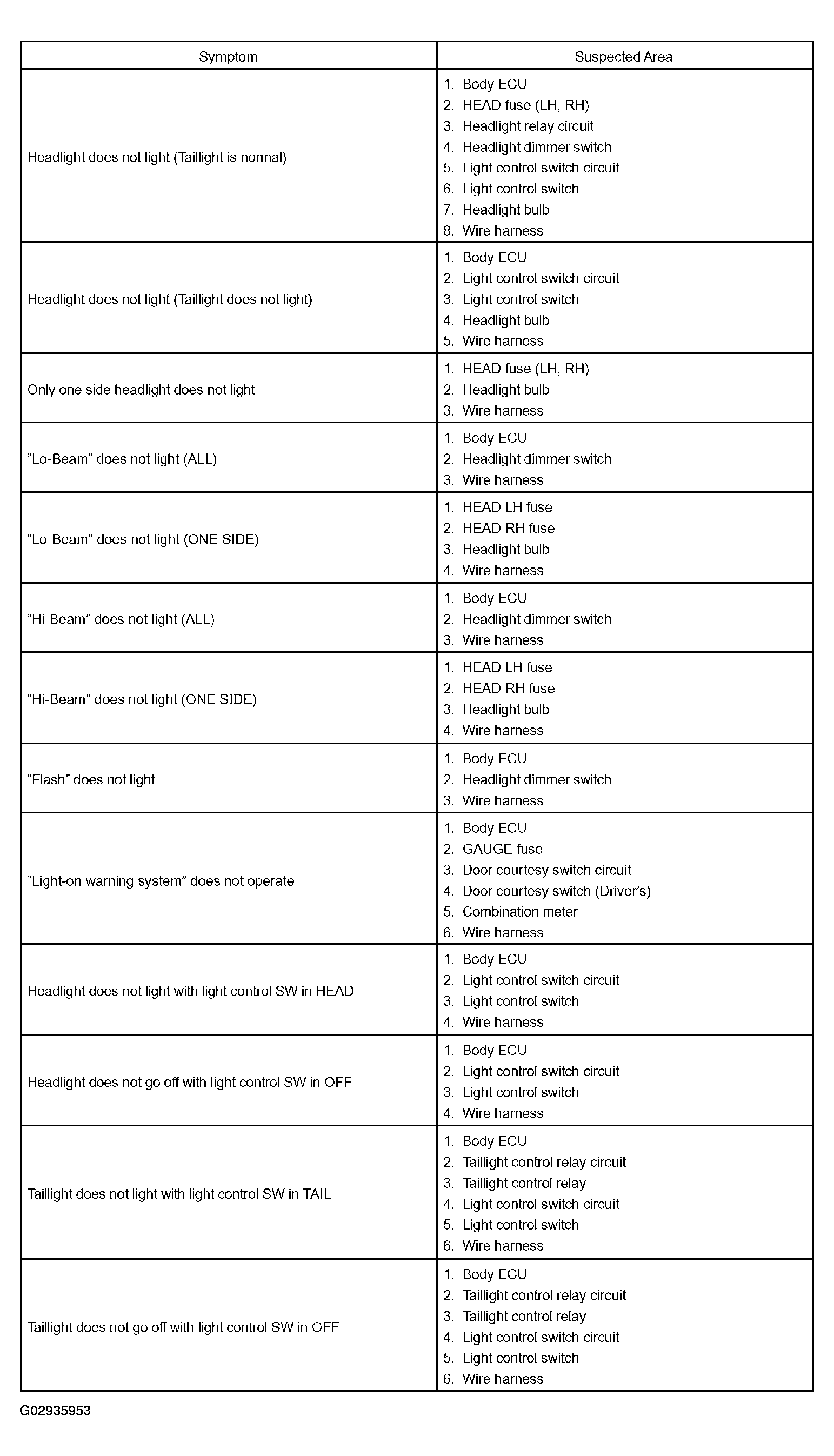

Fig 1: Identifying Headlight & Tail Light Symptoms
G02935953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
