Terminals Of ECM

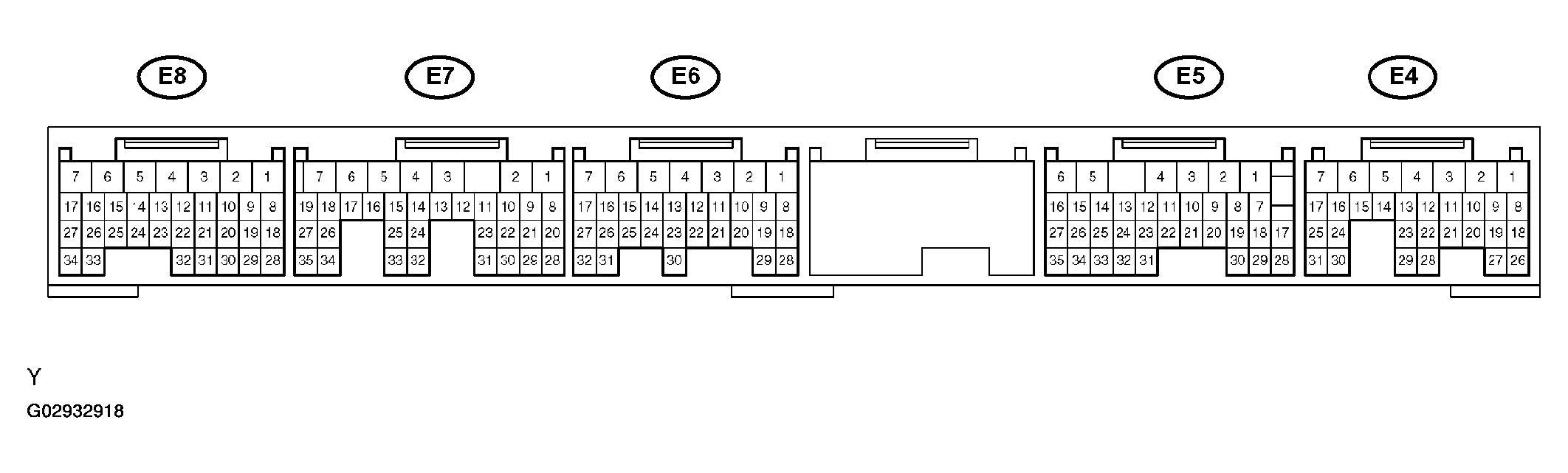

Fig 1: ECM Connector Terminal Identification
G02932918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

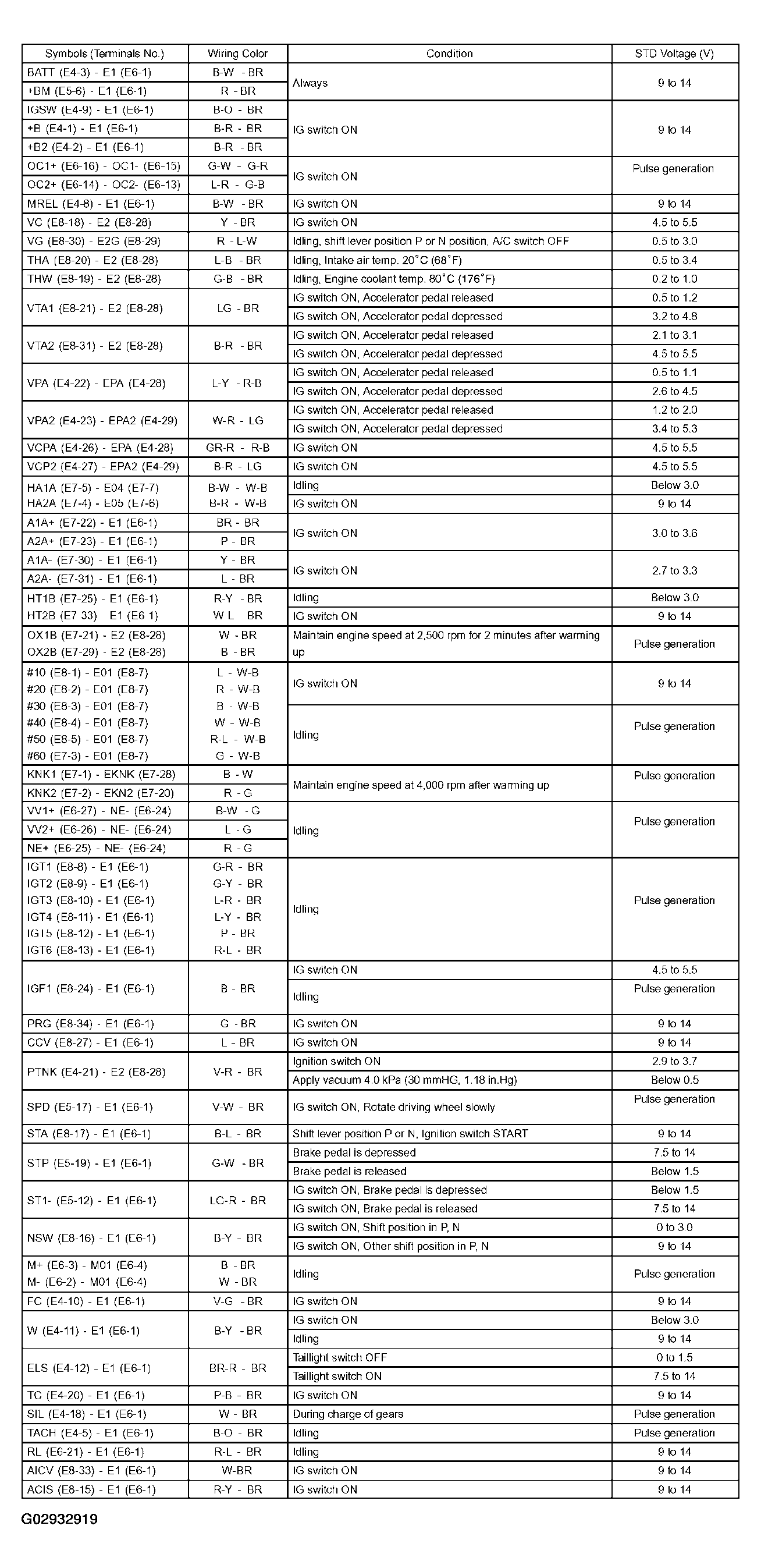

Fig 2: Diagnostics - Terminals Of ECU Reference Table
G02932919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
