Repair Procedures

HINT:

This is a flow chart for vehicle pull.

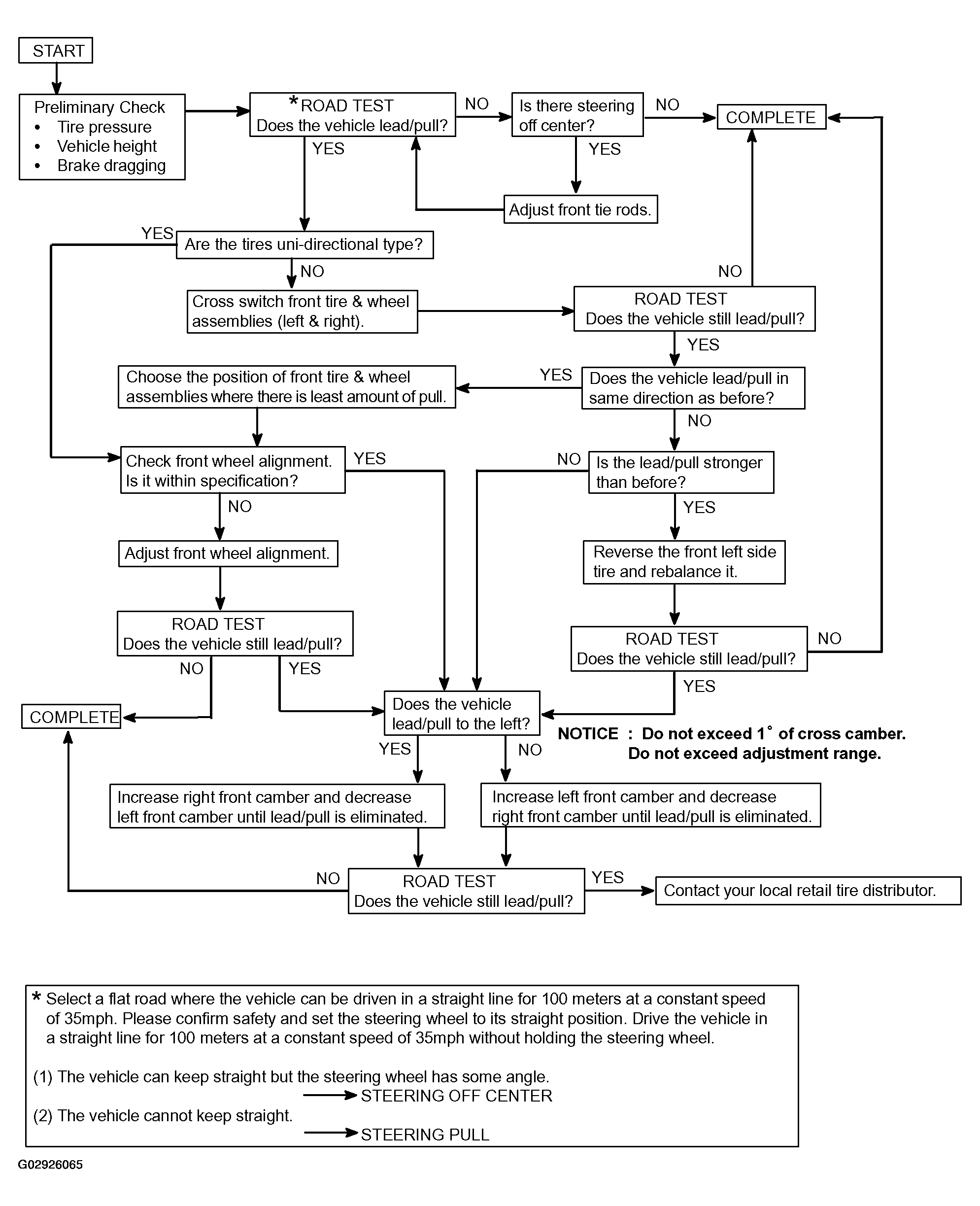

Fig 1: Repair Procedure Flow Chart
G02926065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
