Deceleration Sensor (W/Abs): Components

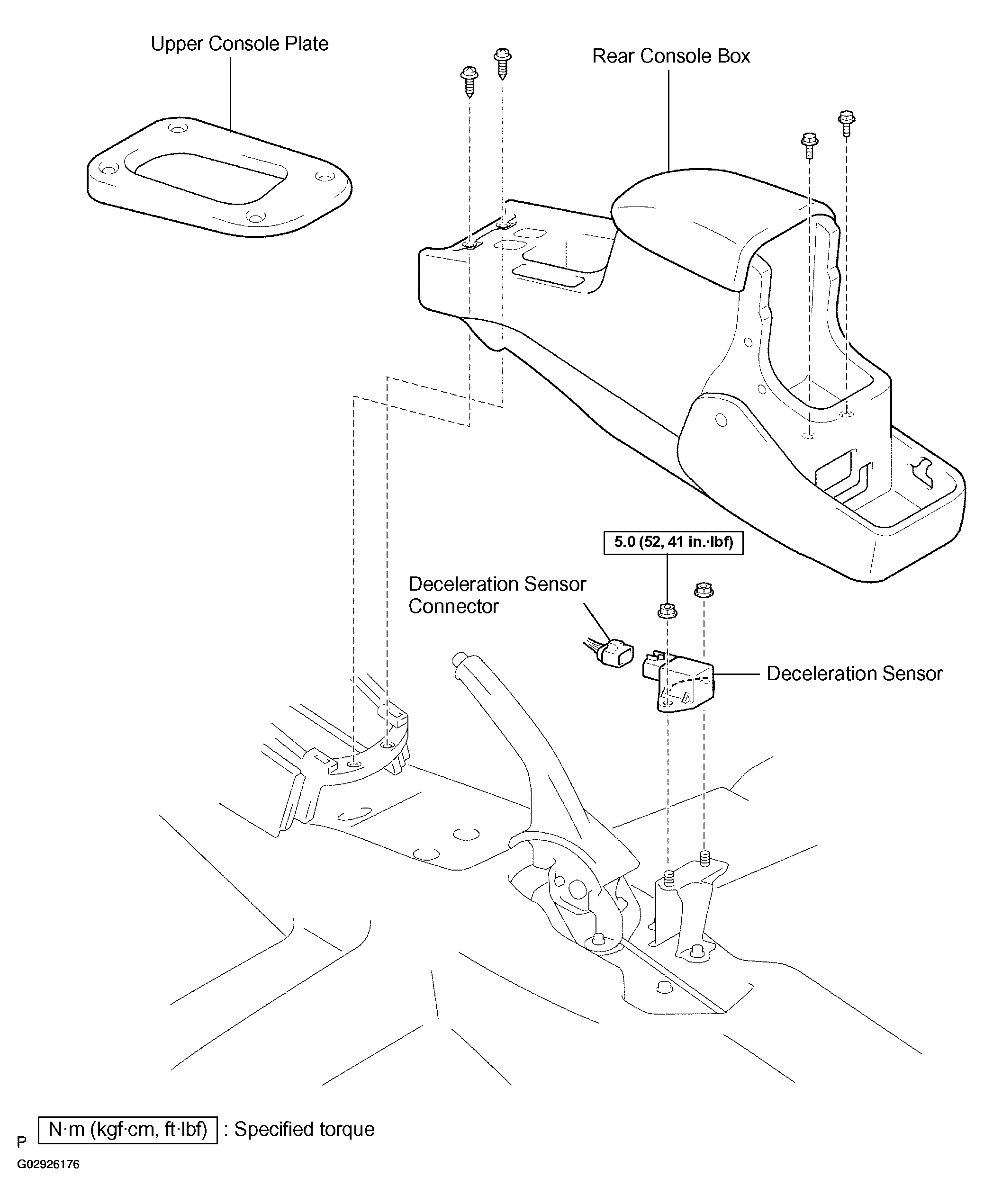

Fig 1: Locating Deceleration Sensor (W/ABS) Components
G02926176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
