Turn Signal And Hazard Warning System

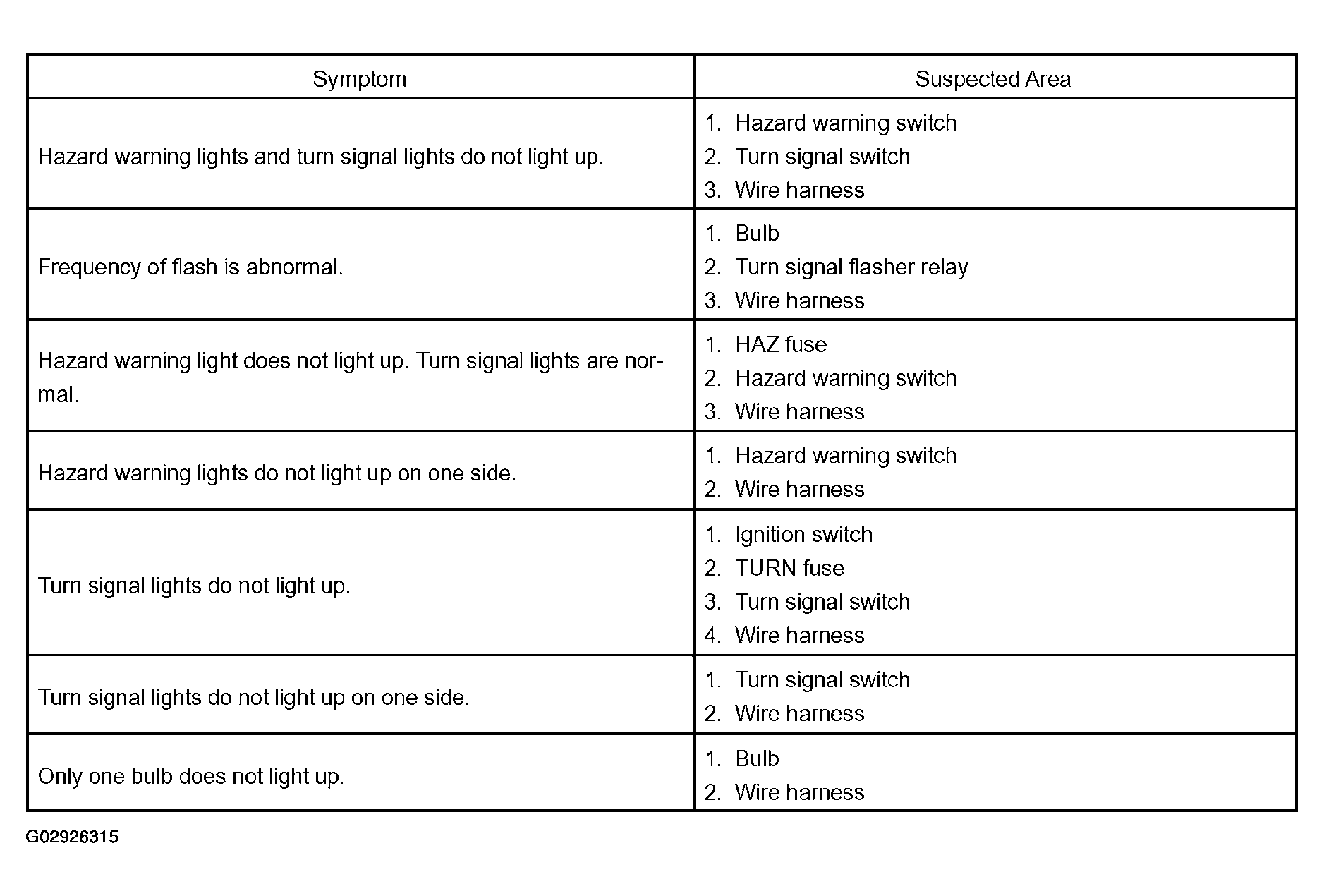

Fig 1: Turn Signal And Hazard Warning System Troubleshooting Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
