Power Source Circuit: Wiring Diagram

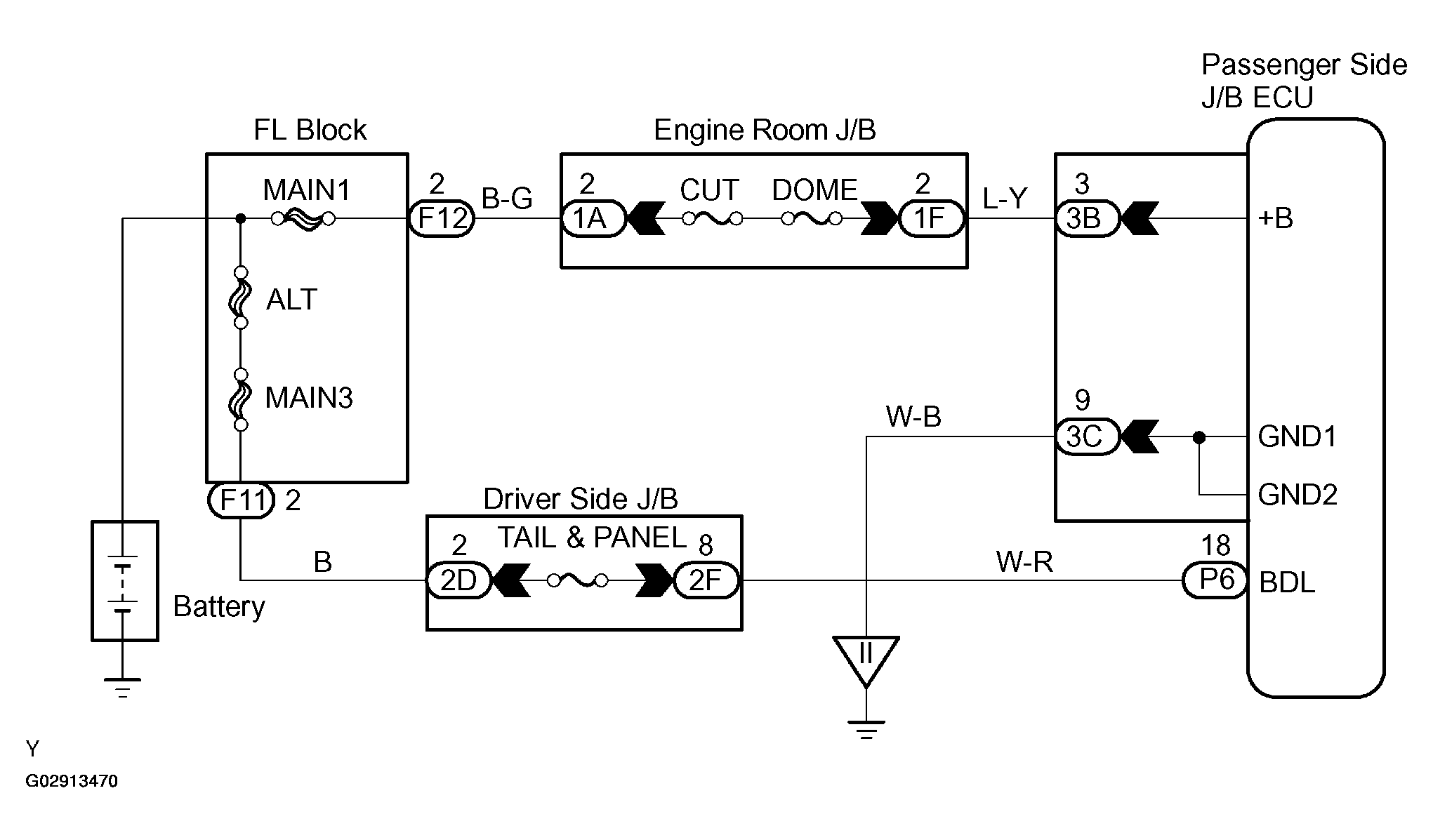

Fig 1: Wiring Diagram - Power Source Circuit
G02913470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
