H-LP Relay Circuit: Wiring Diagram

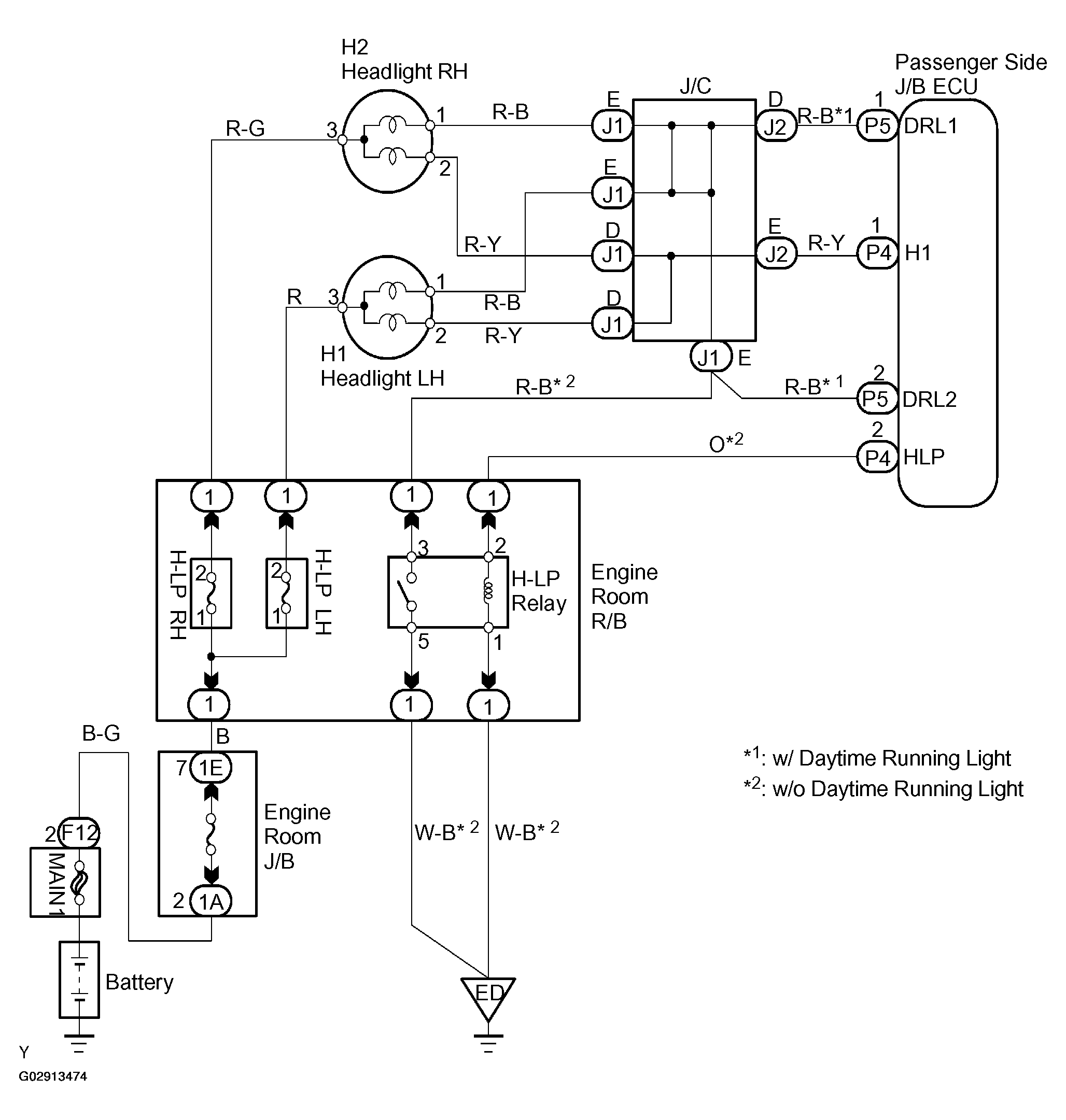

Fig 1: Wiring Diagram Of H-LP Relay Circuit
G02913474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
