Wireless Door Lock Receiver Circuit: Wiring Diagram

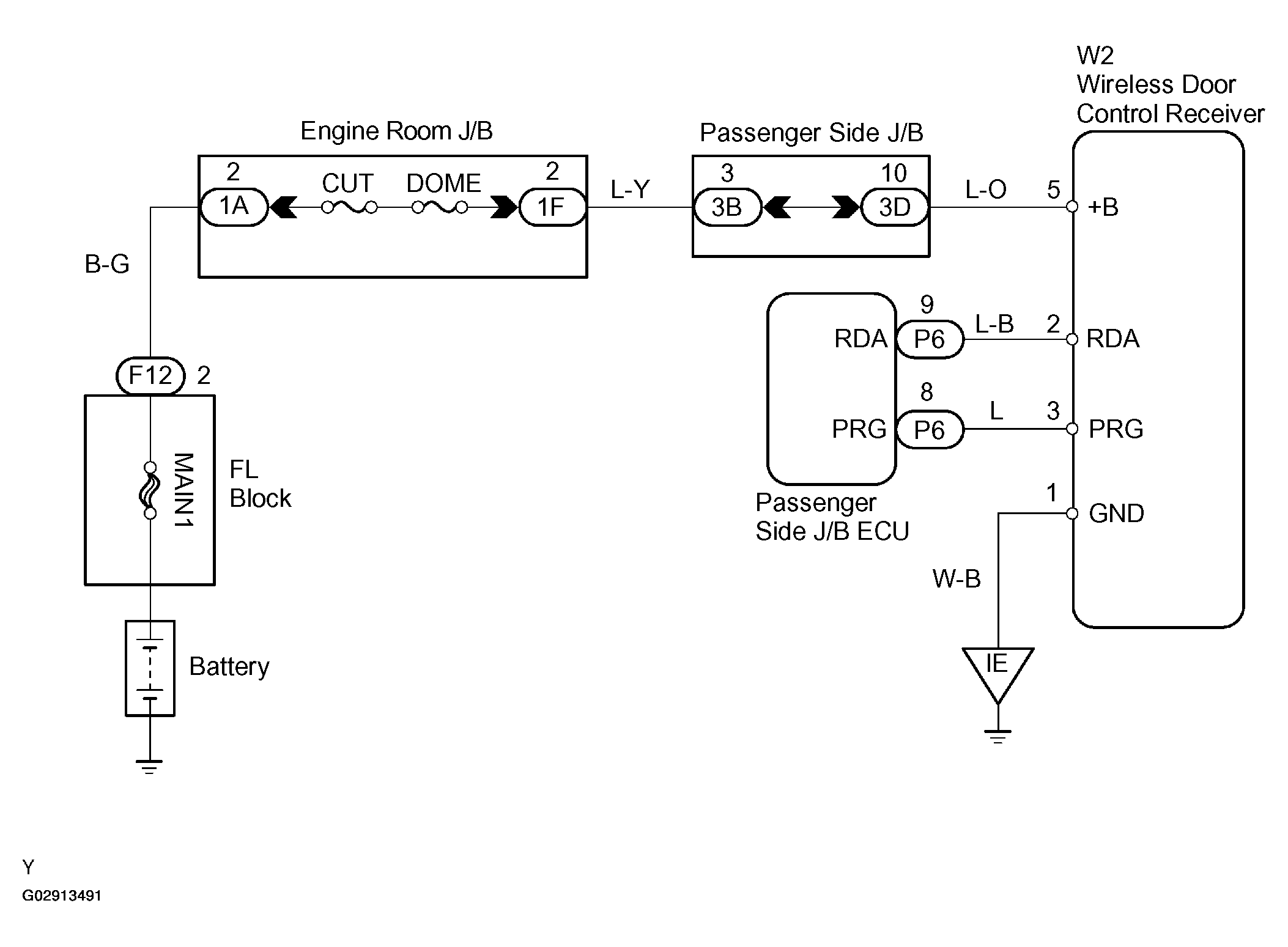

Fig 1: Wiring Diagram Of Wireless Door Lock Receiver Circuit
G02913491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
