Automatic Transmission Shift Control System - Diagnosis: Location

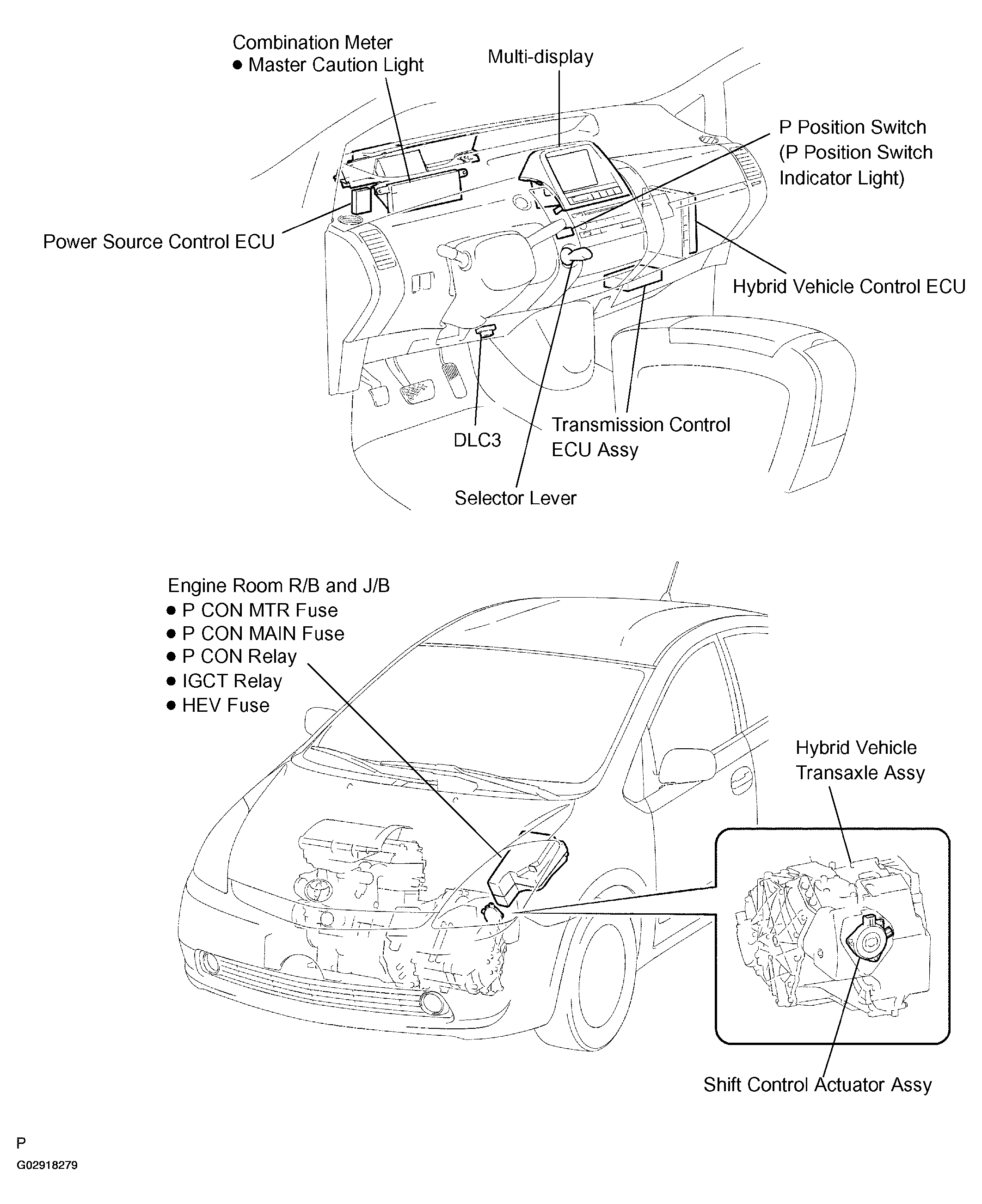

Fig 1: Locating Shift Control System Components
G02918279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
