System Diagram

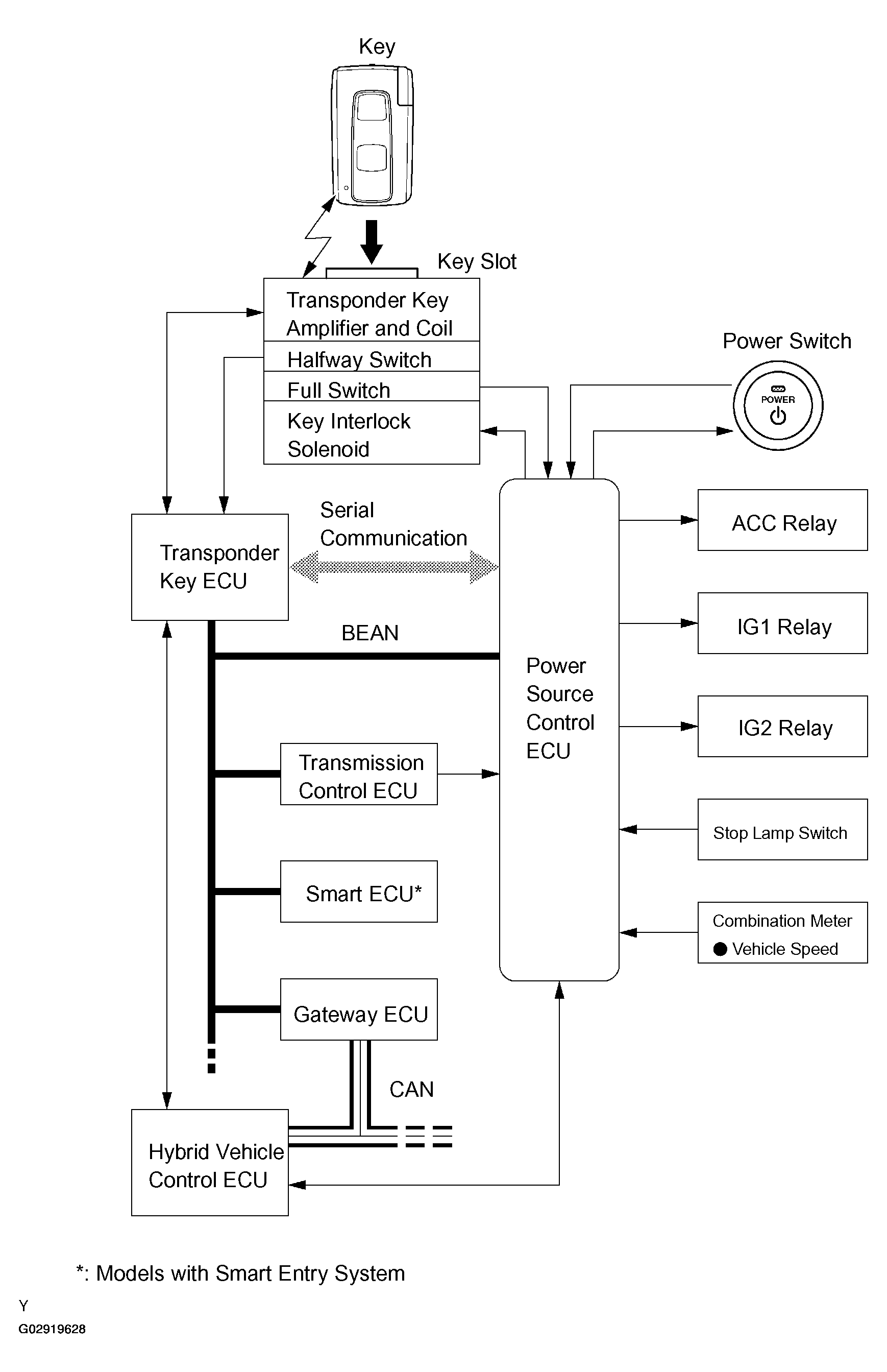

Fig 1: Diagram Of Push Button Start System
G02919628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

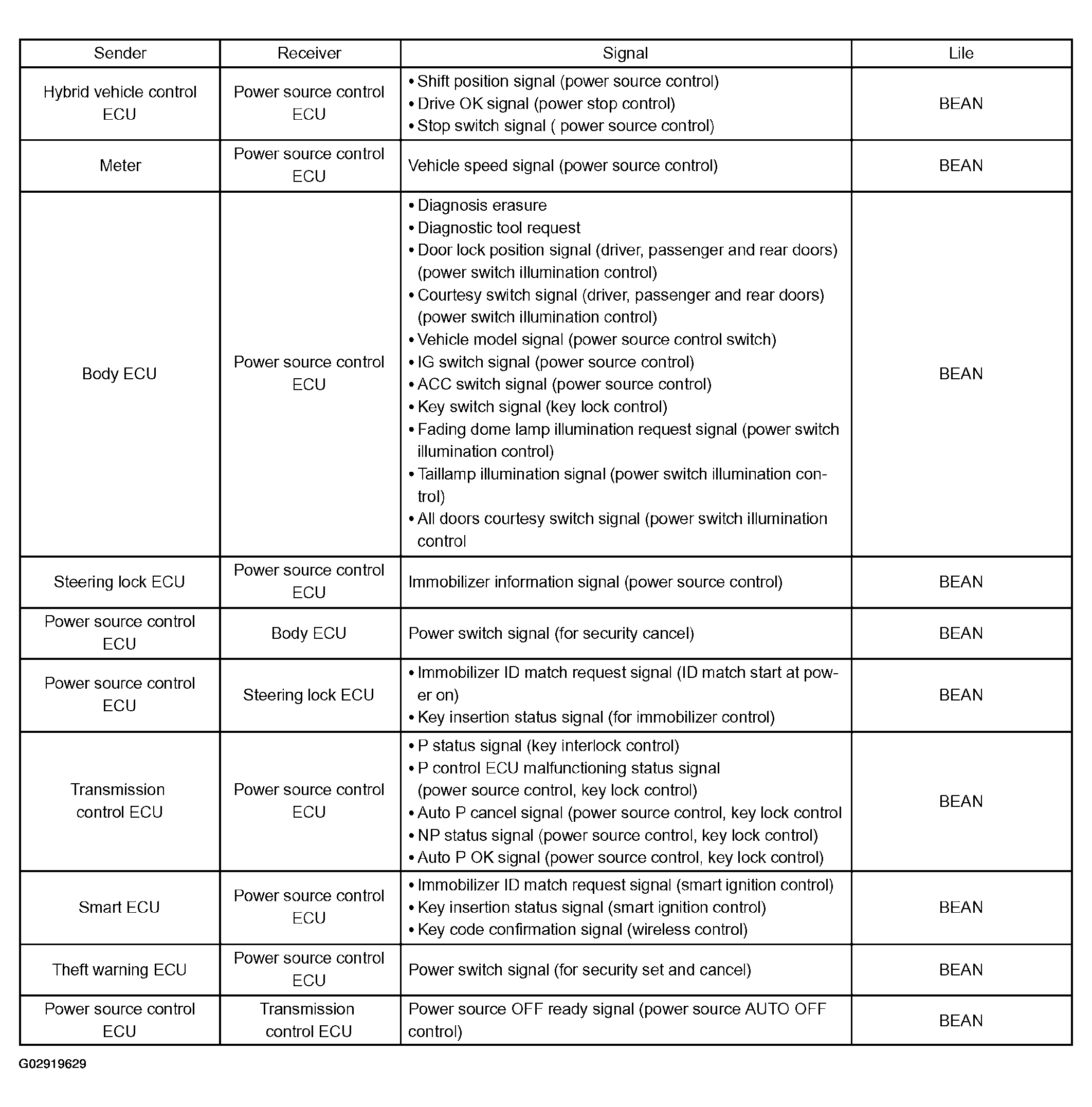

Fig 2: Receiver Signal Table
G02919629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
