Typical Enabling Condition

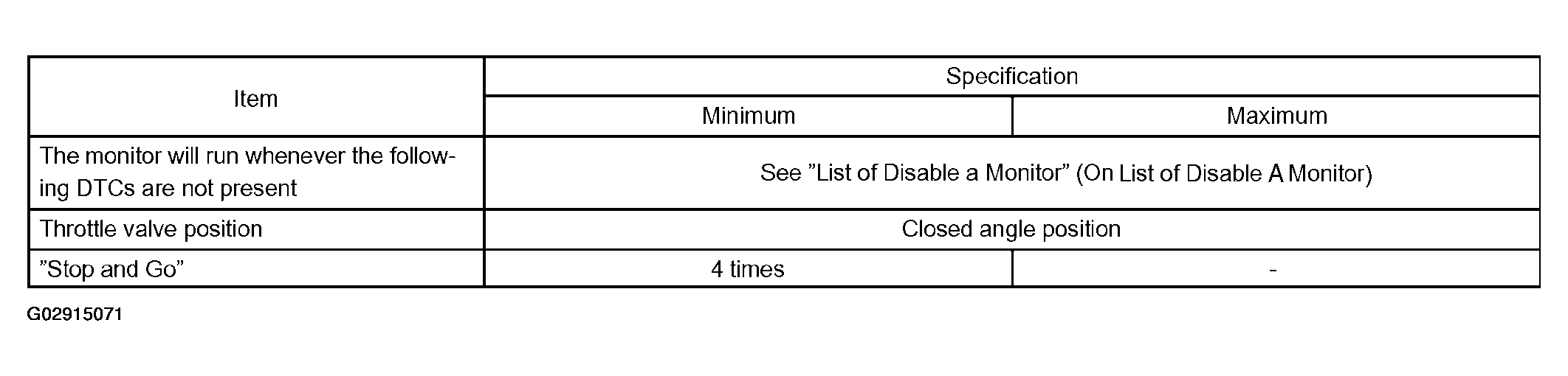

Fig 1: Typical Enabling Conditions Table
G02915071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

"Stop and go" is defined as follows:

"Stop" indicates a vehicle speed of 0 mph (0 km/h). "Go" indicates a vehicle speed of 18.6 mph (30 km/h).
