Problem Symptoms Table

WARNING: This page is about a different variant/trim than selected.

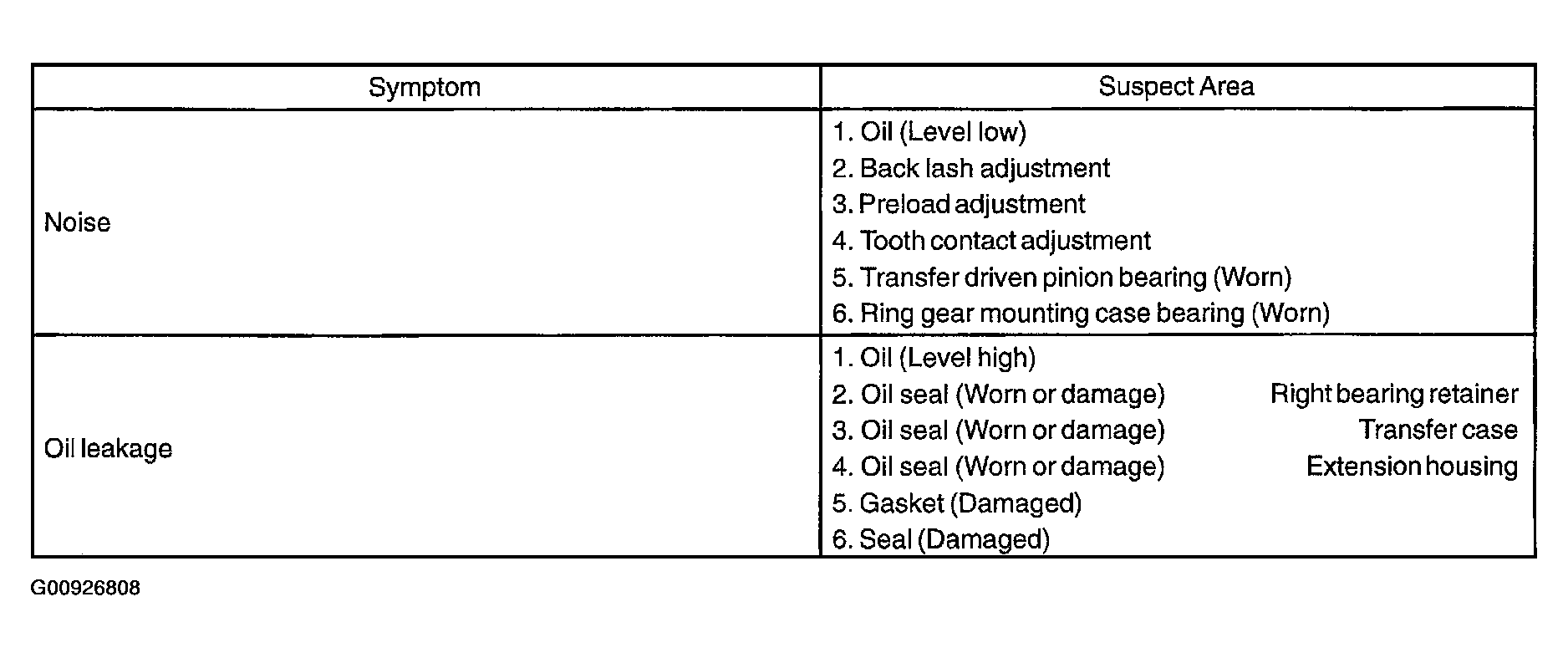

Fig 1: Problem Symptoms Table
G00926808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
