Upper Mount: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the engine assembly with a floor jack.

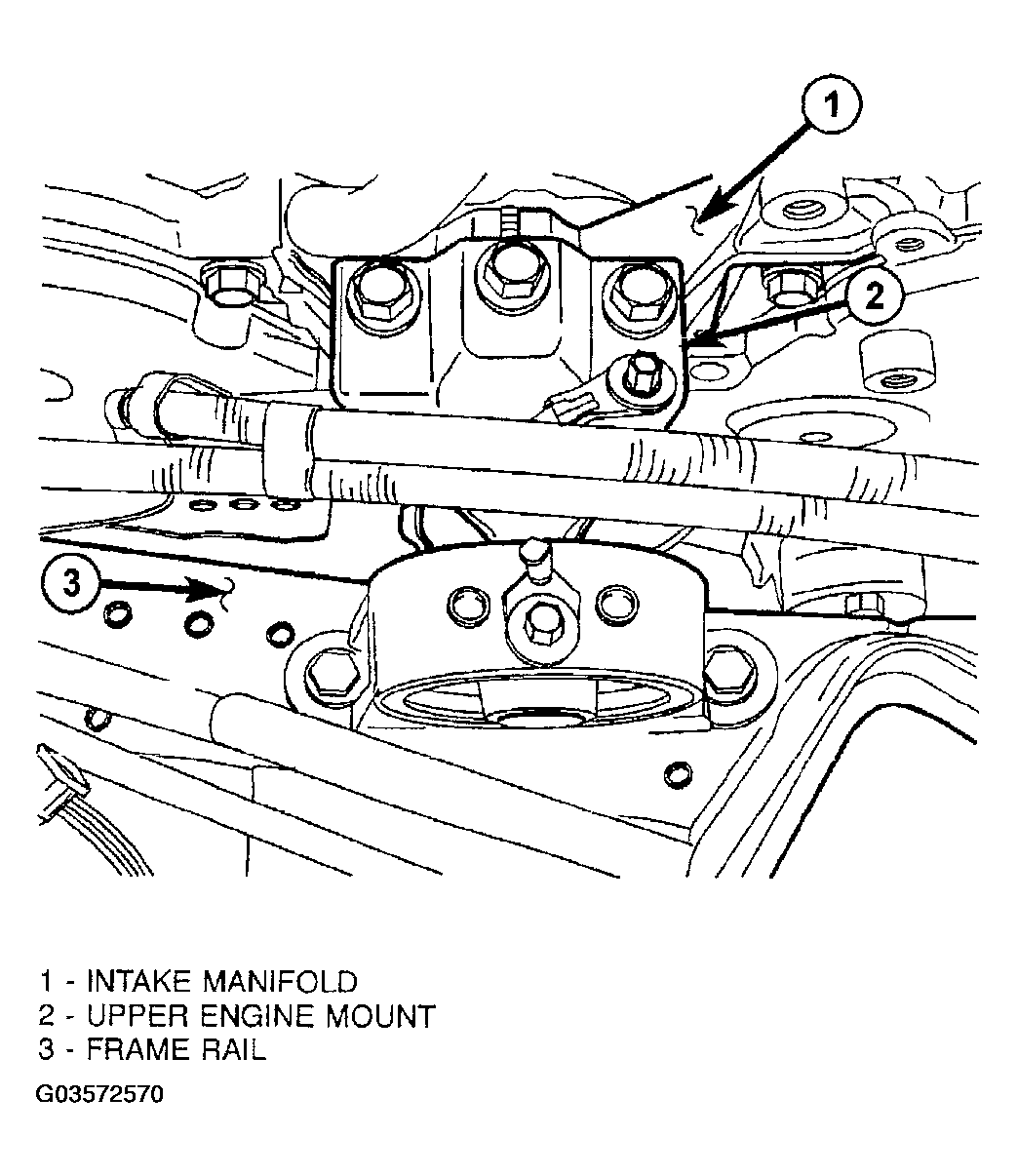

  2. Properly position the upper engine mount and install the retaining bolts (Figure ).
  3. Tighten the bolts attached to the intake manifold to 54 N.m (40 lbs. ft. (Figure ).
  4. Tighten the bolts attached to the inner frame rail to 68 N.m (50 lbs. ft.) (Figure ).
  5. Remove the jack used to support engine assembly.
  6. Install the air cleaner element housing (Refer to INSTALLATION  ).
