Left Mount: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

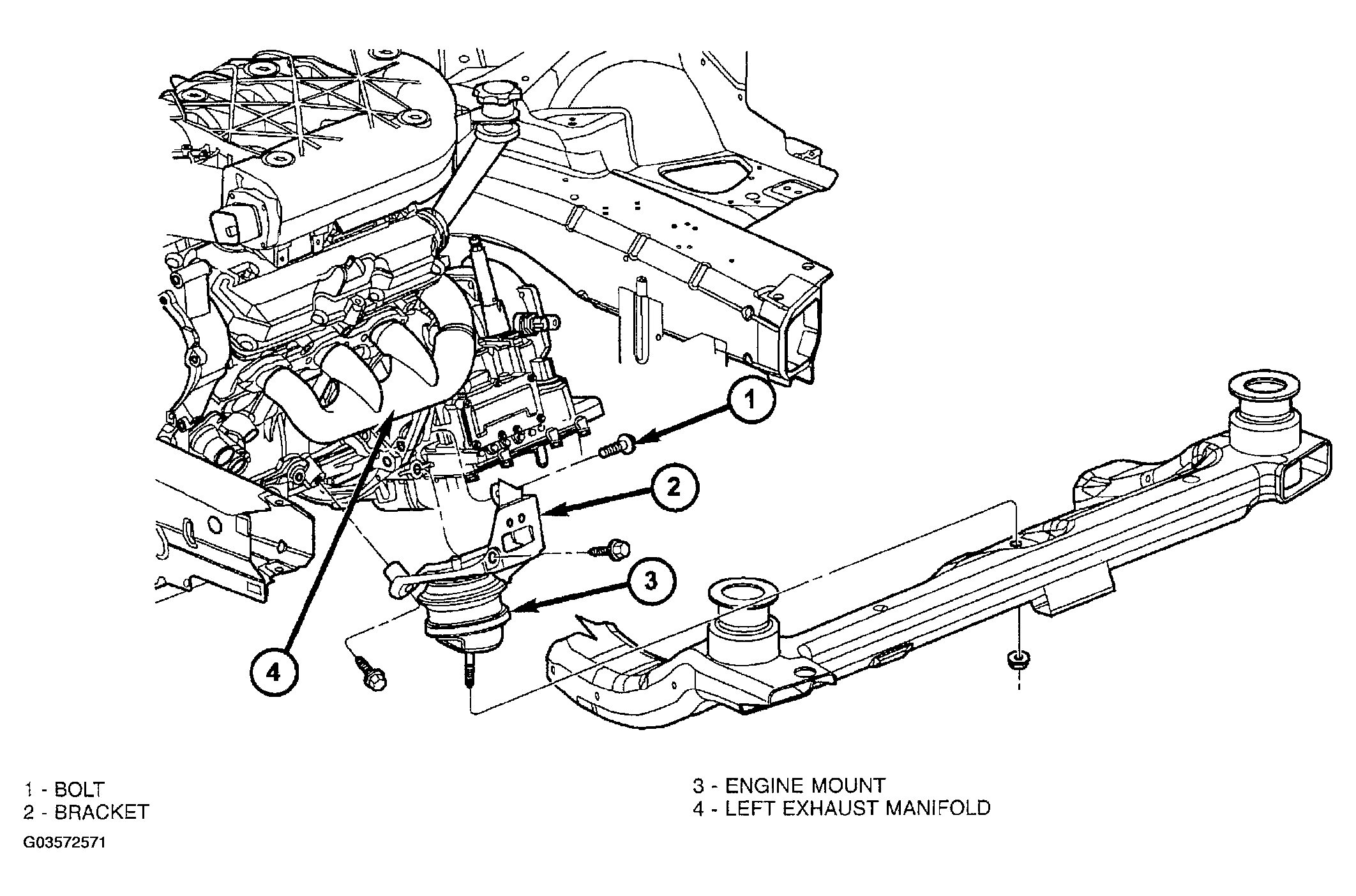

  1. Install engine mount to bracket. Tighten nut to 101 N.m (75 lbs. ft.) (Figure ).
  2. Install left mount to the engine block. Tighten bolts to 54 N.m (4Q lbs.ft.) (Figure ).
  3. Lower vehicle.
  4. Remove the engine support fixture.
  5. Raise and support the vehicle.
  6. Install both od the engine mount to cradle nut. Tighten nut to 101 N.m (75 lbs. ft.) (Figure ).
  7. Lower vehicle.
  8. Install radiator fan assembly (Refer to RADIATOR FAN ).
  9. Install the engine cover.
  10. Connect the negative battery cable.
