How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Troubleshoot in accordance with the procedure on the following page.

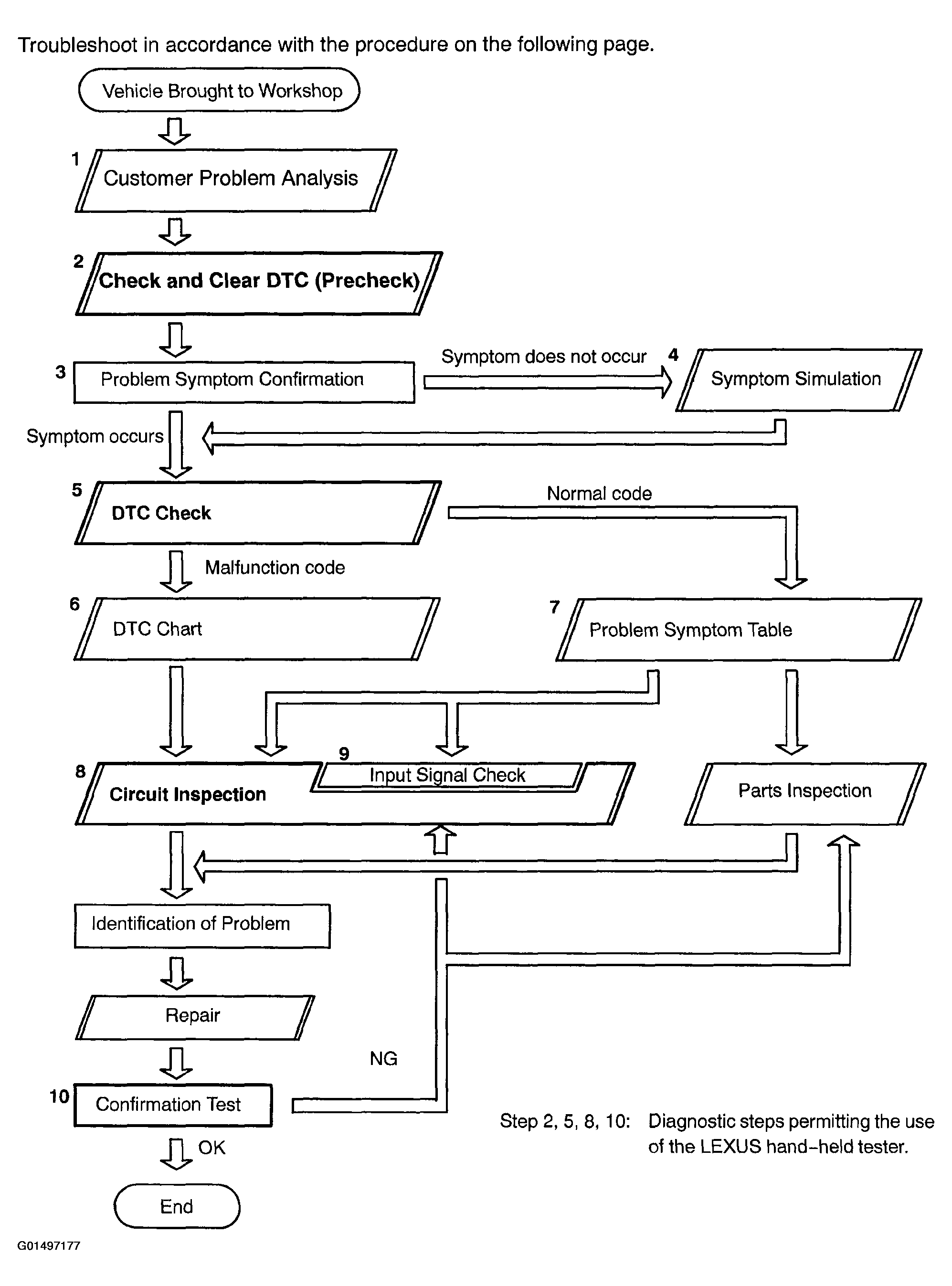

Fig 1: Cruise Control Troubleshooting Flow Chart
G01497177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
