System Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

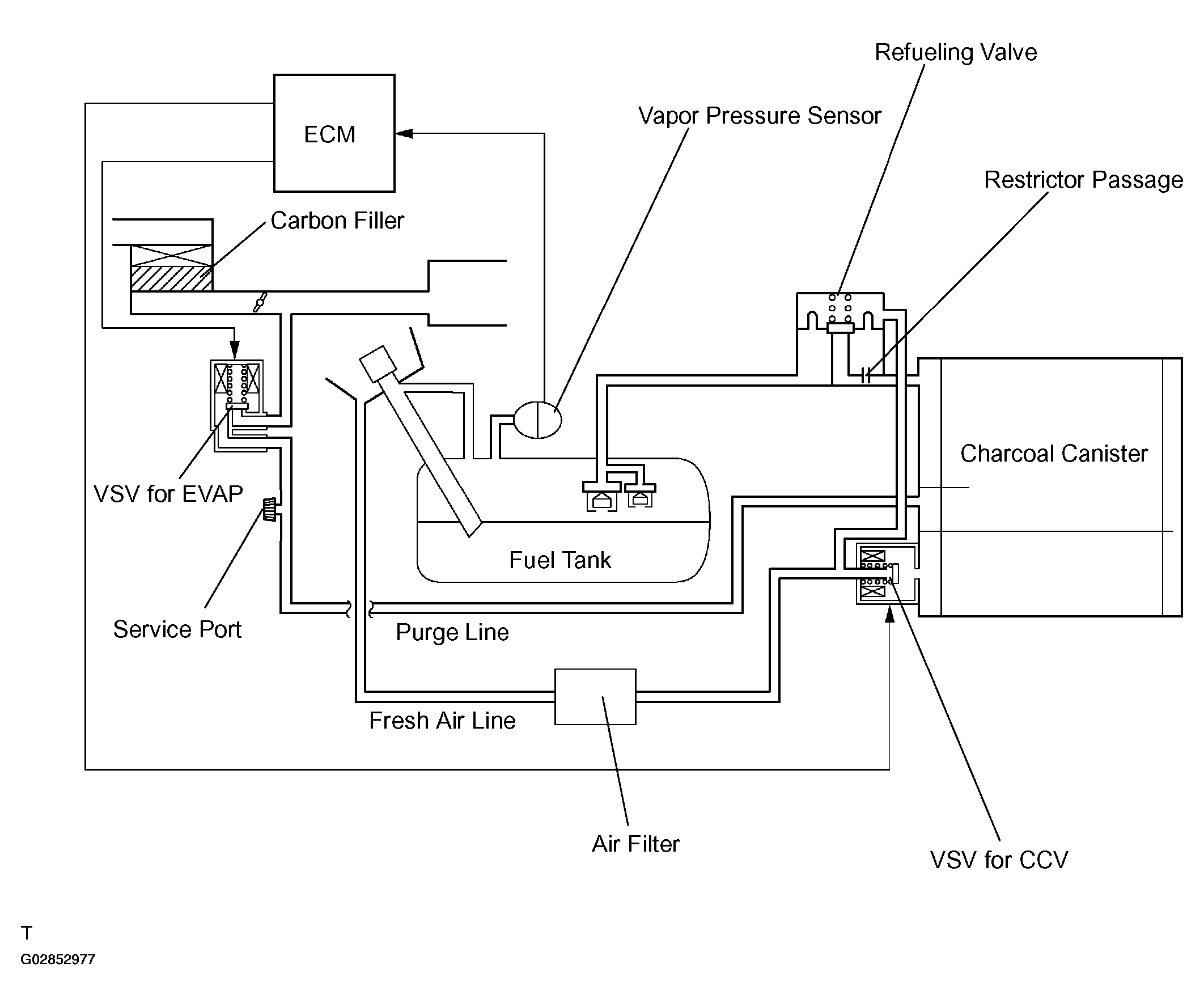

Fig 1: Emission Control System Diagram
G02852977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The emission control system is determined by the ECM based on signals from various sensors.

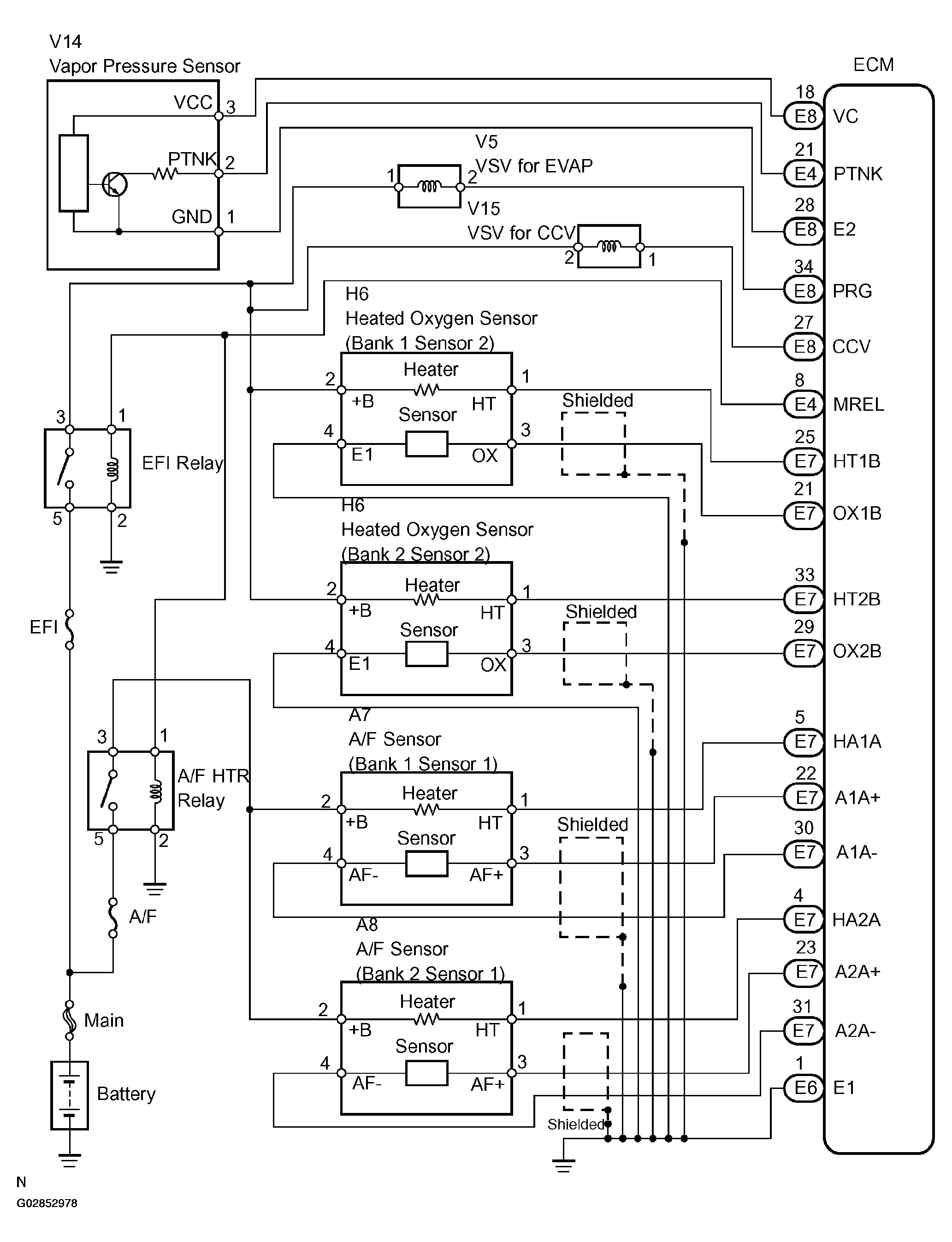

Fig 2: Wiring Diagram - Emission Control System
G02852978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
