Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

Multiplex Network Body Computer:

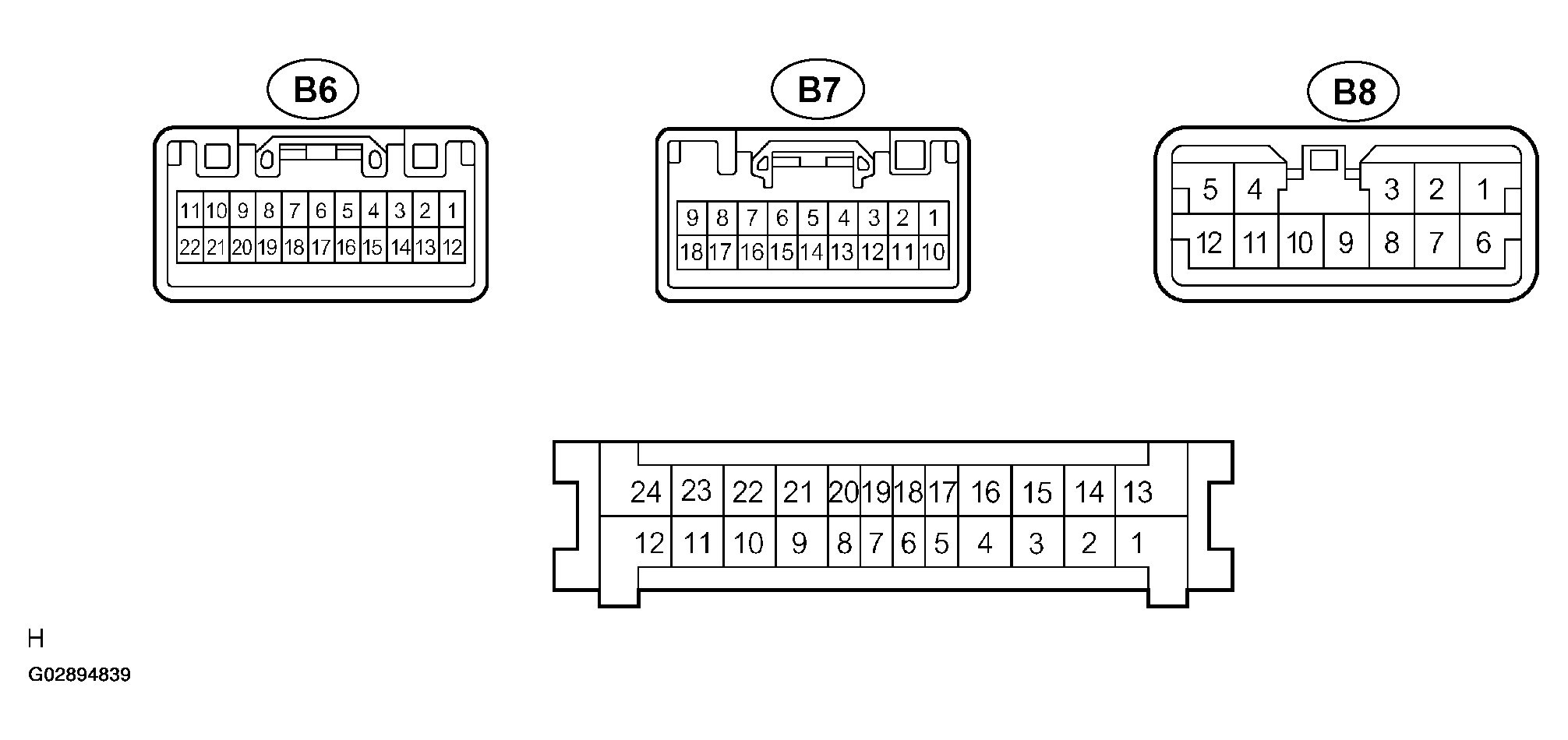

Fig 1: Identifying Multiplex Network Body Computer Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

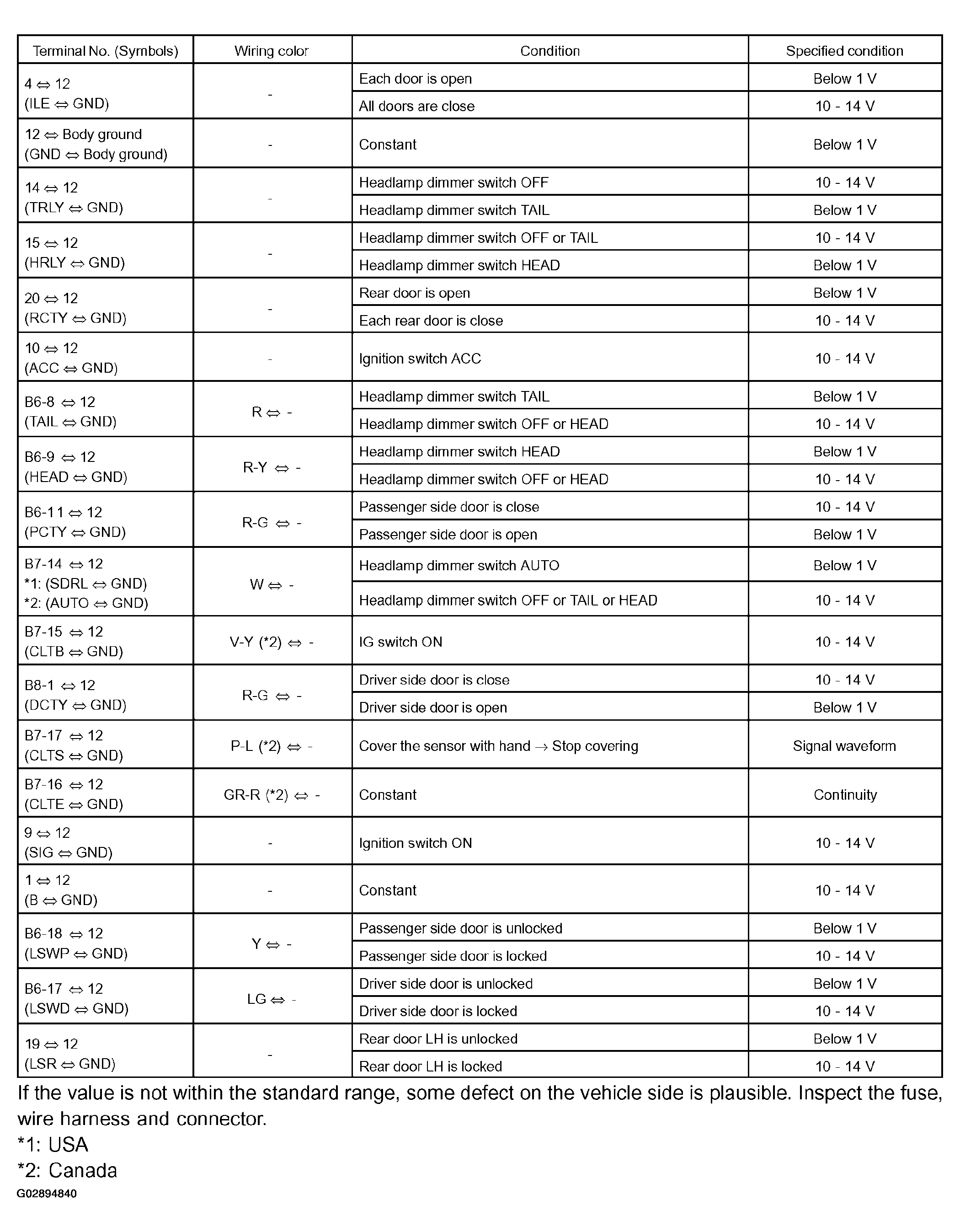

Fig 2: Terminals Specifications

If the value is not within the standard range, some defect on the vehicle side is plausible. Inspect the fuse, wire harness and connector.

*1: USA

*2: Canada
