System Diagram

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

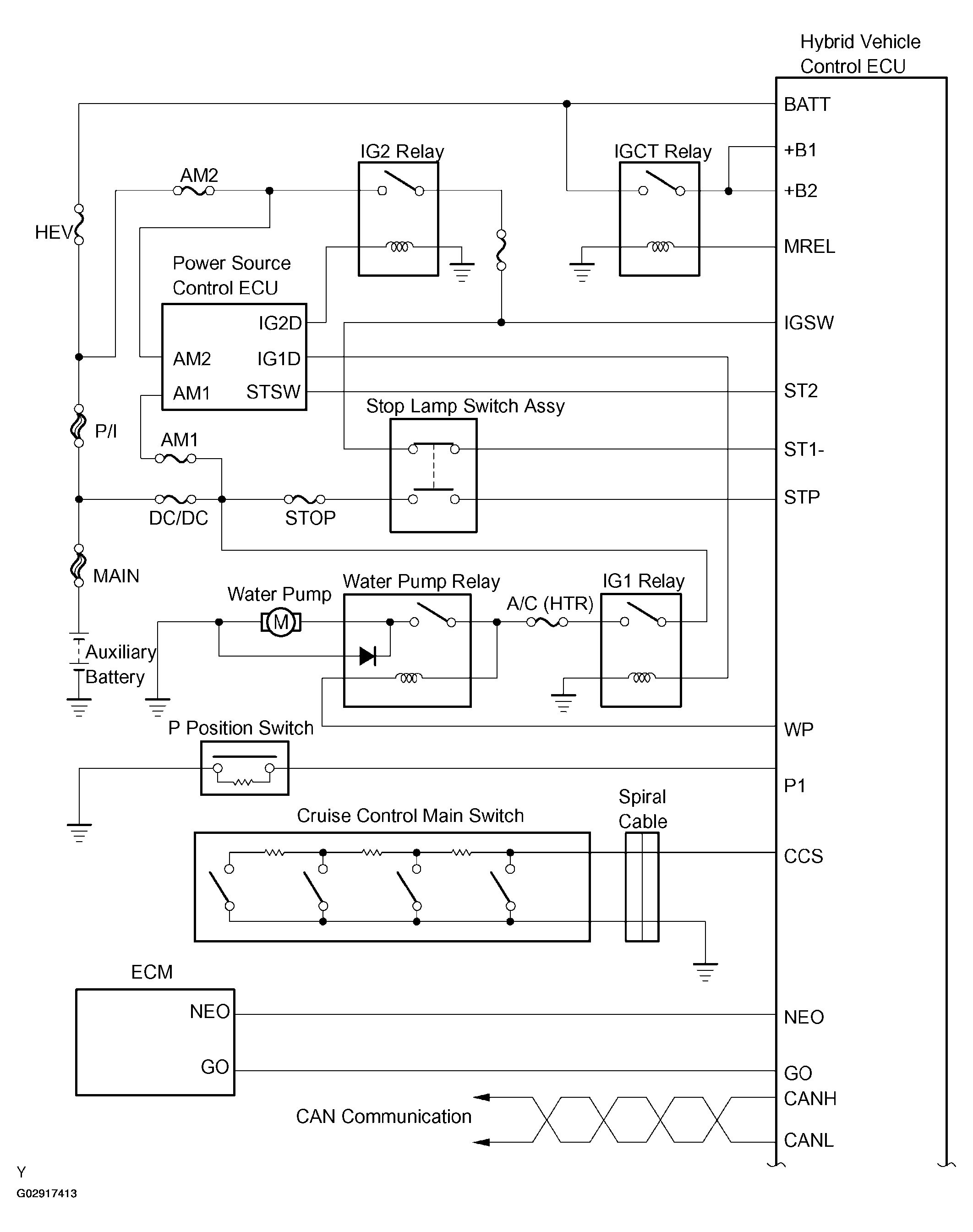

Fig 1: Hybrid Control System Wiring Diagram (1 Of 4)
G02917413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

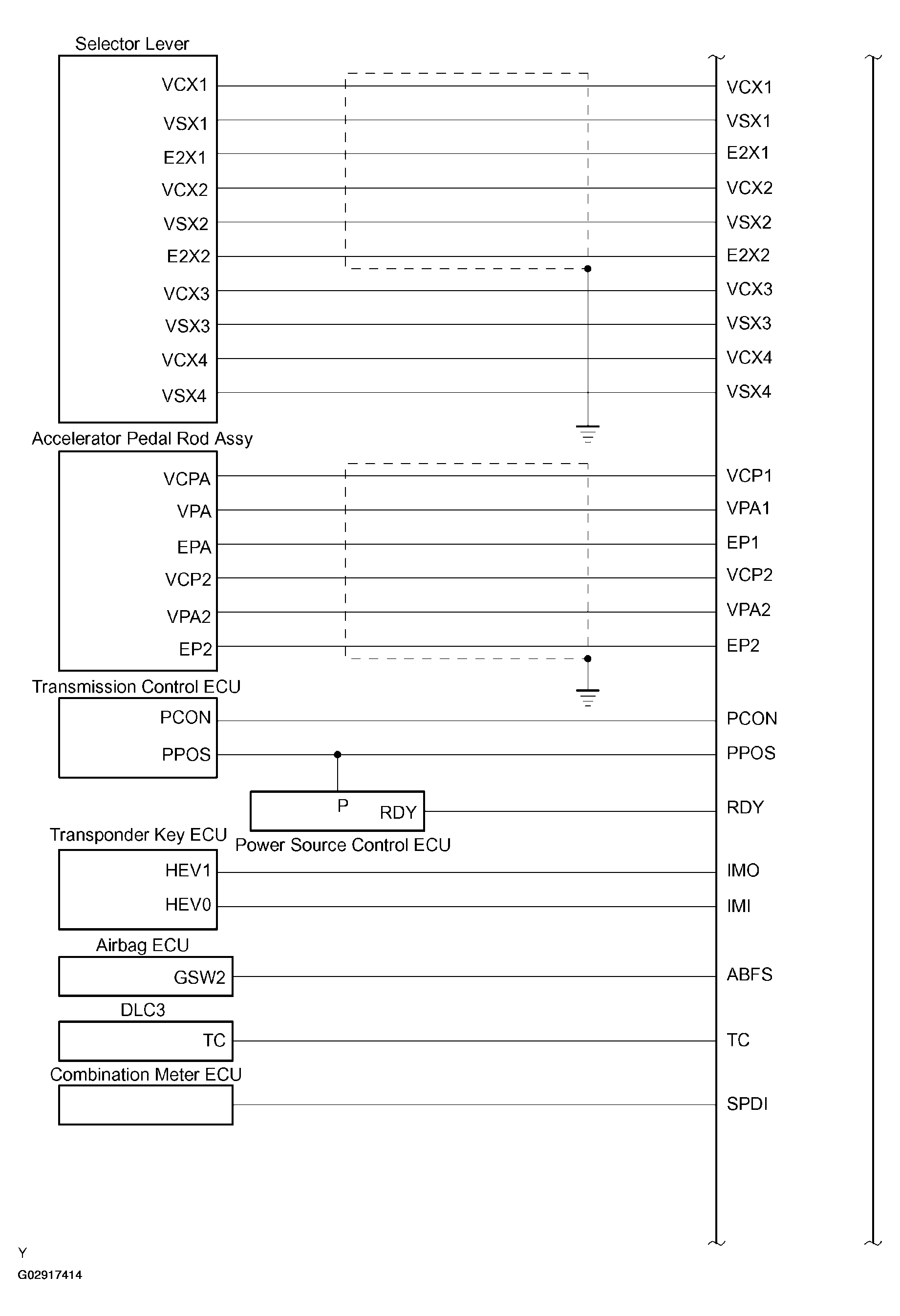

Fig 2: Hybrid Control System Wiring Diagram (2 Of 4)
G02917414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

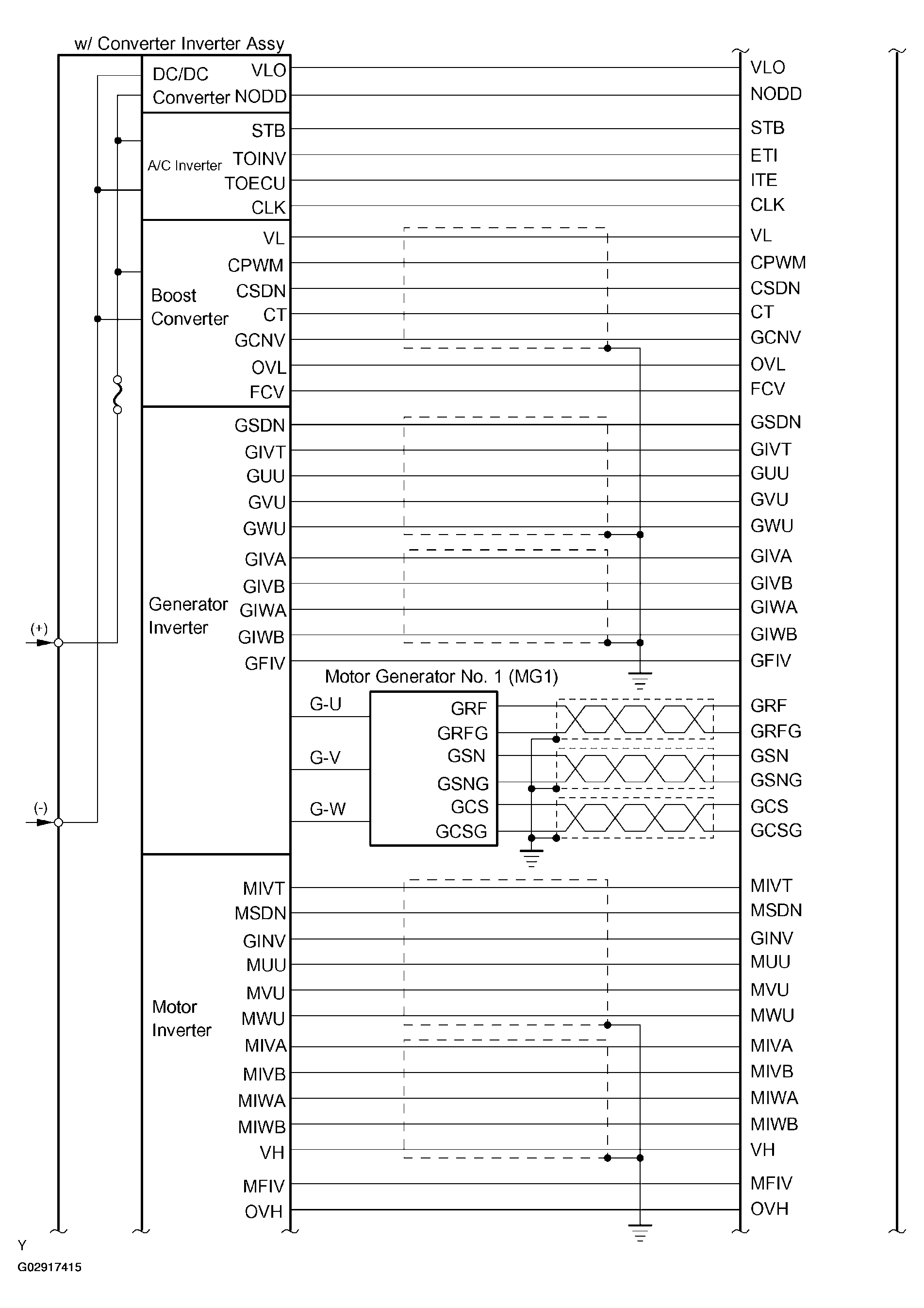

Fig 3: Hybrid Control System Wiring Diagram (3 Of 4)
G02917415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

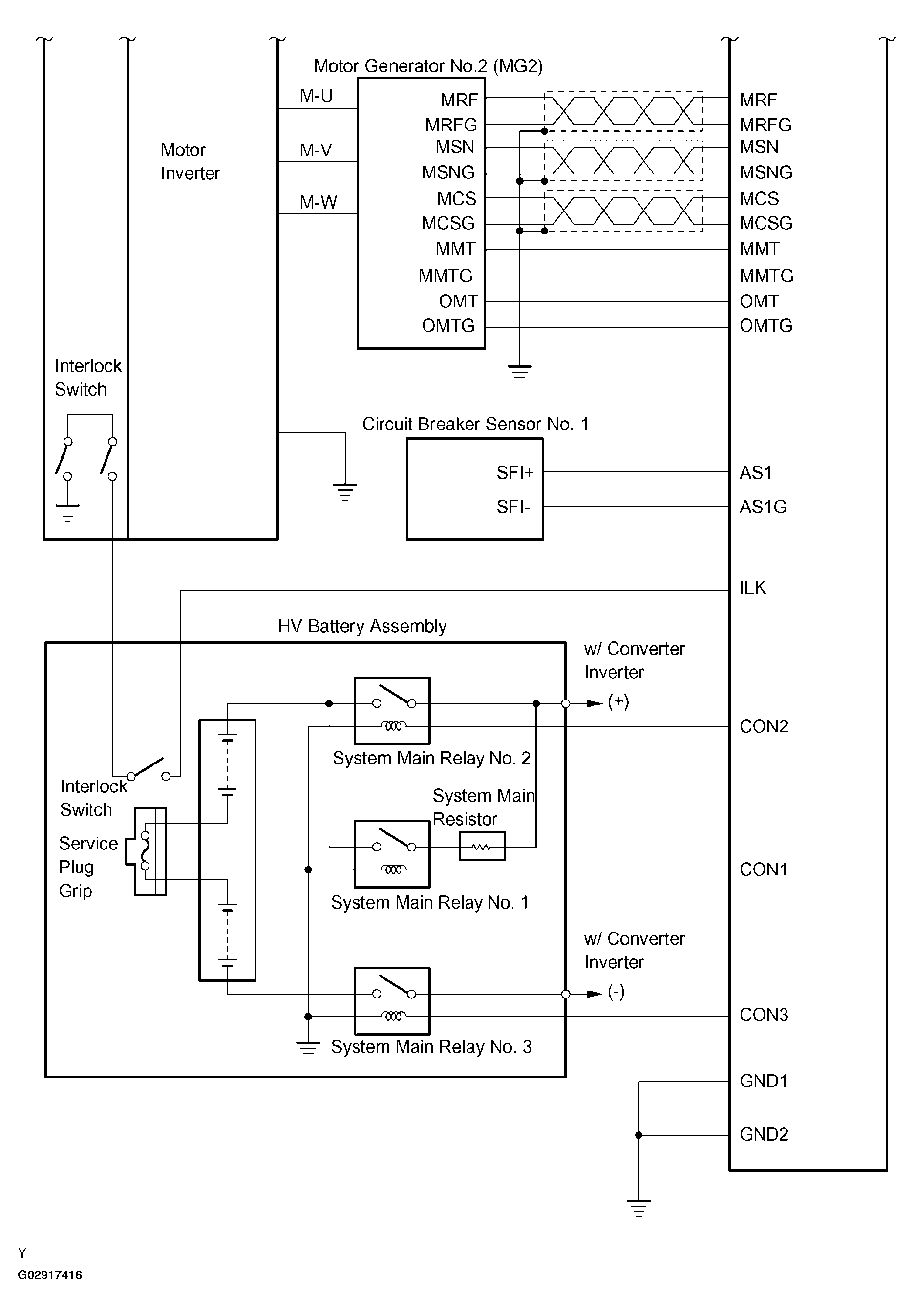

Fig 4: Hybrid Control System Wiring Diagram (4 Of 4)
G02917416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

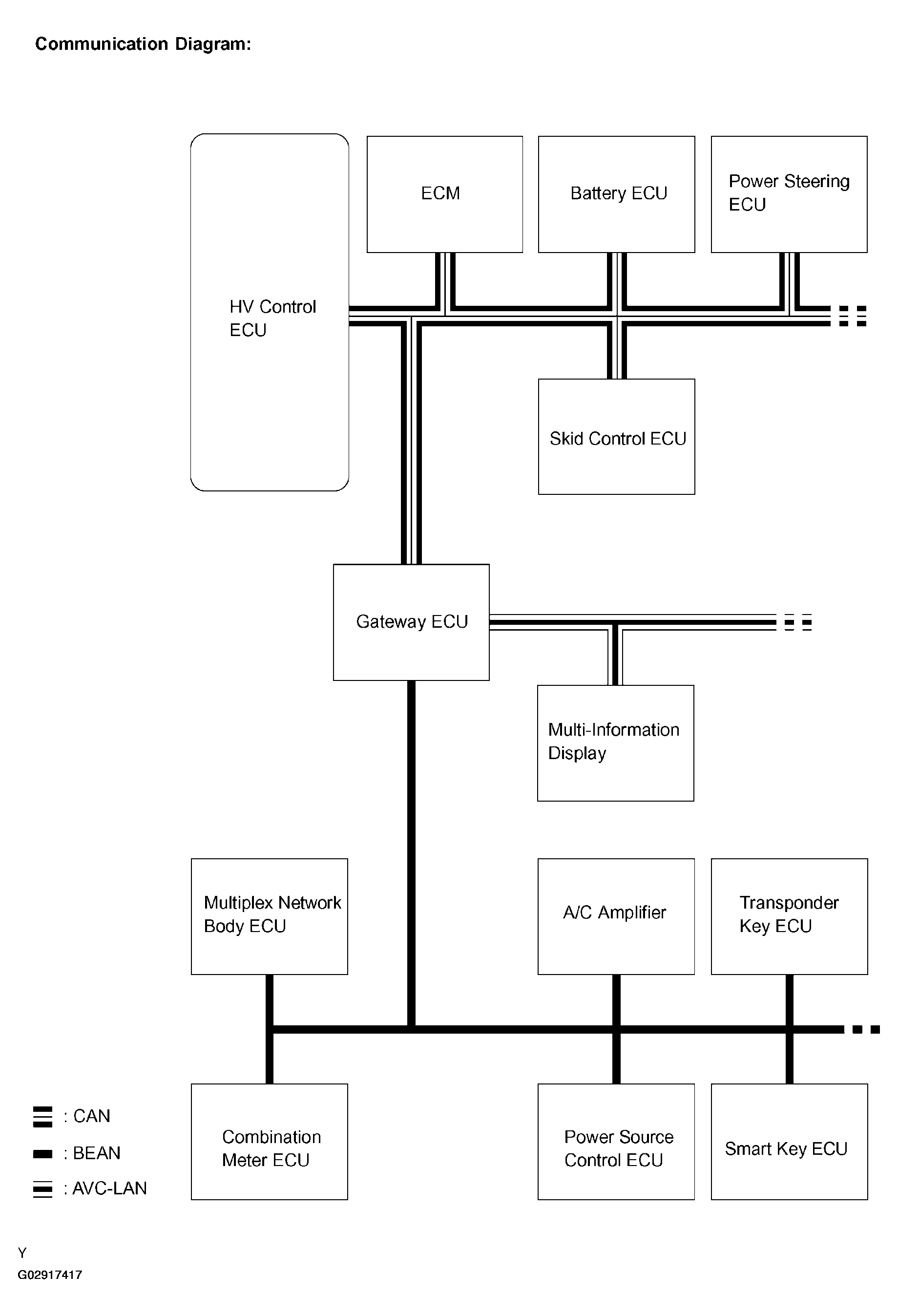

Fig 5: Hybrid Control System Communication Diagram
G02917417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
