Information/Freeze Frame Data

1. FREEZE FRAME DATA

   HINT:

   The freeze frame data record the driving conditions when the DTC was set. It is used for estimating or simulating the condition of the vehicle when the malfunction occurred. To check the details of the hybrid vehicle control system, check the detailed information for the DTC (Information).

   1. Connect the hand-held tester to the DLC3.
   2. Turn the power switch ON (IG).
   3. Turn the hand-held tester ON.
   4. Select the following menu items: DIAGNOSIS / OBD/MOBD / HV ECU / DTC INFO / CURRENT CODES.
   5. Select a DTC in order to display its freeze frame data.
   6. Check the freeze frame data of the DTC that has been detected.
   7. Check information of the DTC (see next page).

   Freeze frame data:

   DTC MENU ITEMS MEASURING



   Hand-held Tester Display	Measurement Item/Range (Display)	Suspected Vehicle Status When Malfunction Occurs
   FREEZE DTC	DTC corresponding to displayed freeze frame data	-
   COOLANT TEMP	Engine coolant temperature/ Min.: -40°C, Max.: 140°C	Cold or warm engine
   VEHICLE SPD	Vehicle speed/Min.: 0 km/h, Max.: 255 km/h	Stopped, or driving (low, medium, and high speeds)
   ENG RUN TIME	Elapsed time after starting engine Min.: 0 s, Max.: 65, 535 s	Elapsed time from engine start
   +B	Auxiliary battery voltage/Min.: 0 V, Max.: 65.535 V	Condition of auxiliary battery
   ACCEL POS #1	Accelerator pedal position sensor No. 1/Min.: 0%, Max.: 100%	Idling, accelerating, or decelerating
   ACCEL POS #2	Accelerator pedal position sensor No. 2/Min.: 0%, Max.: 100%	Idling, accelerating or decelerating (For comparison with above to detect failure of accelerator pedal position sensor No. 1)
   AMBIENT TEMP	Ambient air temperature/Min.: -40°C, Max.:215°C	Ambient air temperature
   INTAKE AIR TEMP	Intake air temperature/Min.: -40°C, Max.:140°C	Ambient air temperature
   DTC CLEAR WARM	The number of times engine is warmed up after clearing DTCs/Min.: 0, Max.: 255	Frequency of the malfunction recurrence after clearing DTCs
   DTC CLEAR RUN	Drive distance after clearing DTCs/Min.: 0 km, Max.: 65, 535 km	Frequency of the malfunction recurrence after clearing DTCs
   DTC CLEAR MIN	Elapsed time after clearing DTCs/Min.: 0 min, Max.: 65, 535 min	Frequency of the malfunction recurrence after clearing DTCs
   ECU TYPE	Type of ECU	-
   INFORMATION 1 to 5	Information code	-

2. INFORMATION

HINT:

Similar to freeze frame data, information records operating condition of the HV system and components at the time of detection of a DTC.

1. Select one which has an INF code from among INFORMATION 1 to 5.
2. Check the information of the DTC.

Information:

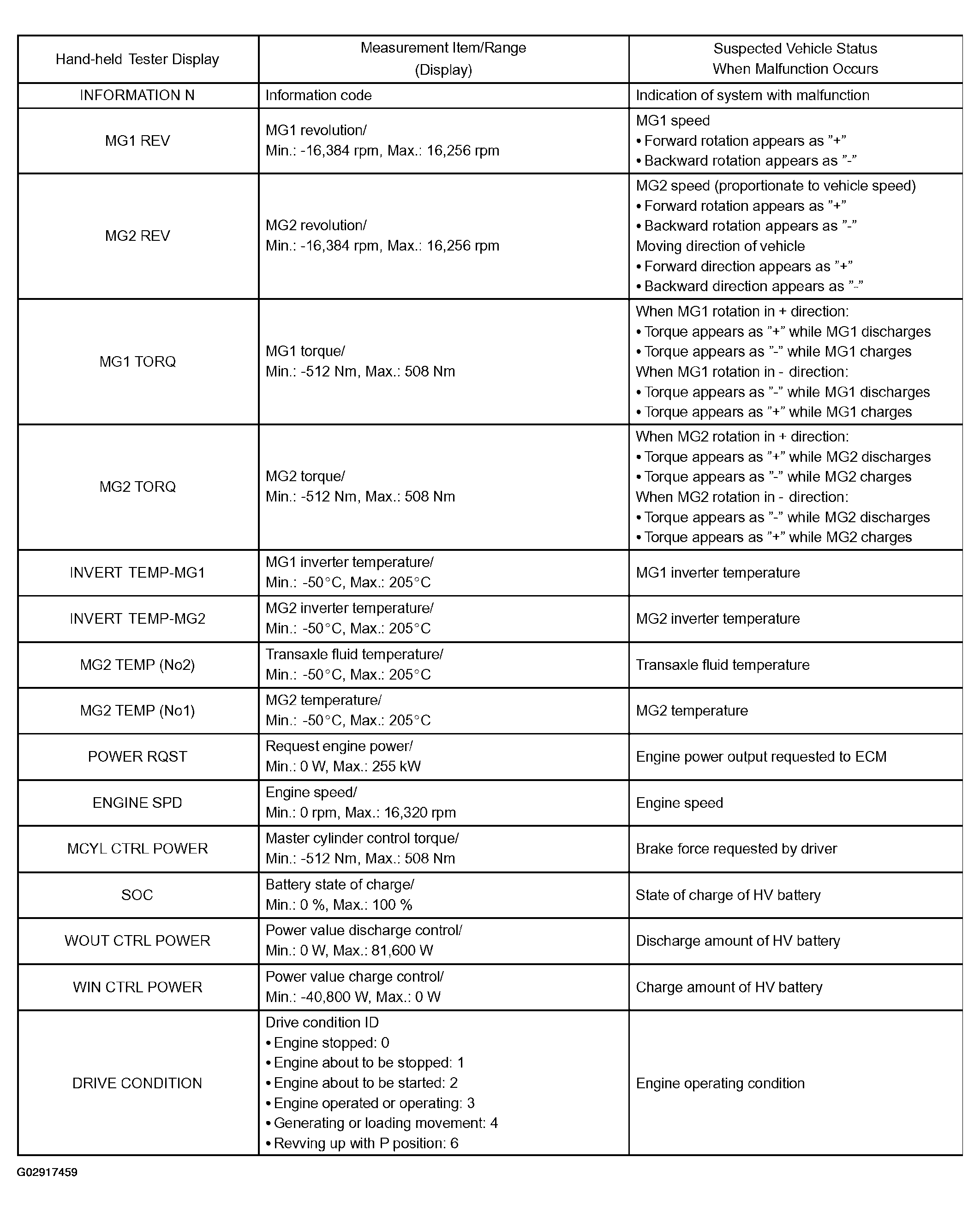

Fig 1: Information Records Operating Condition Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

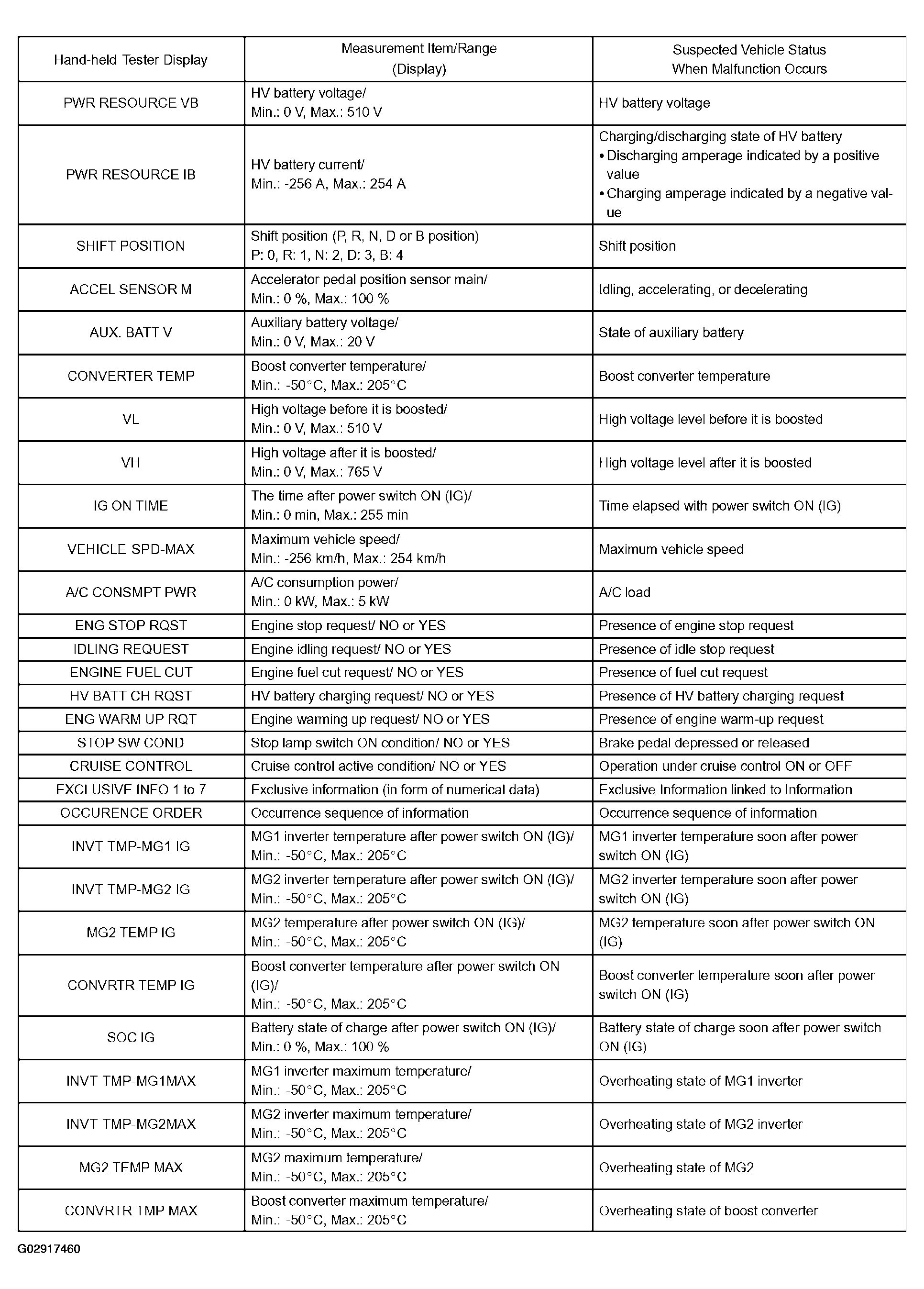

Fig 2: Information Records Opening Condition Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
