Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

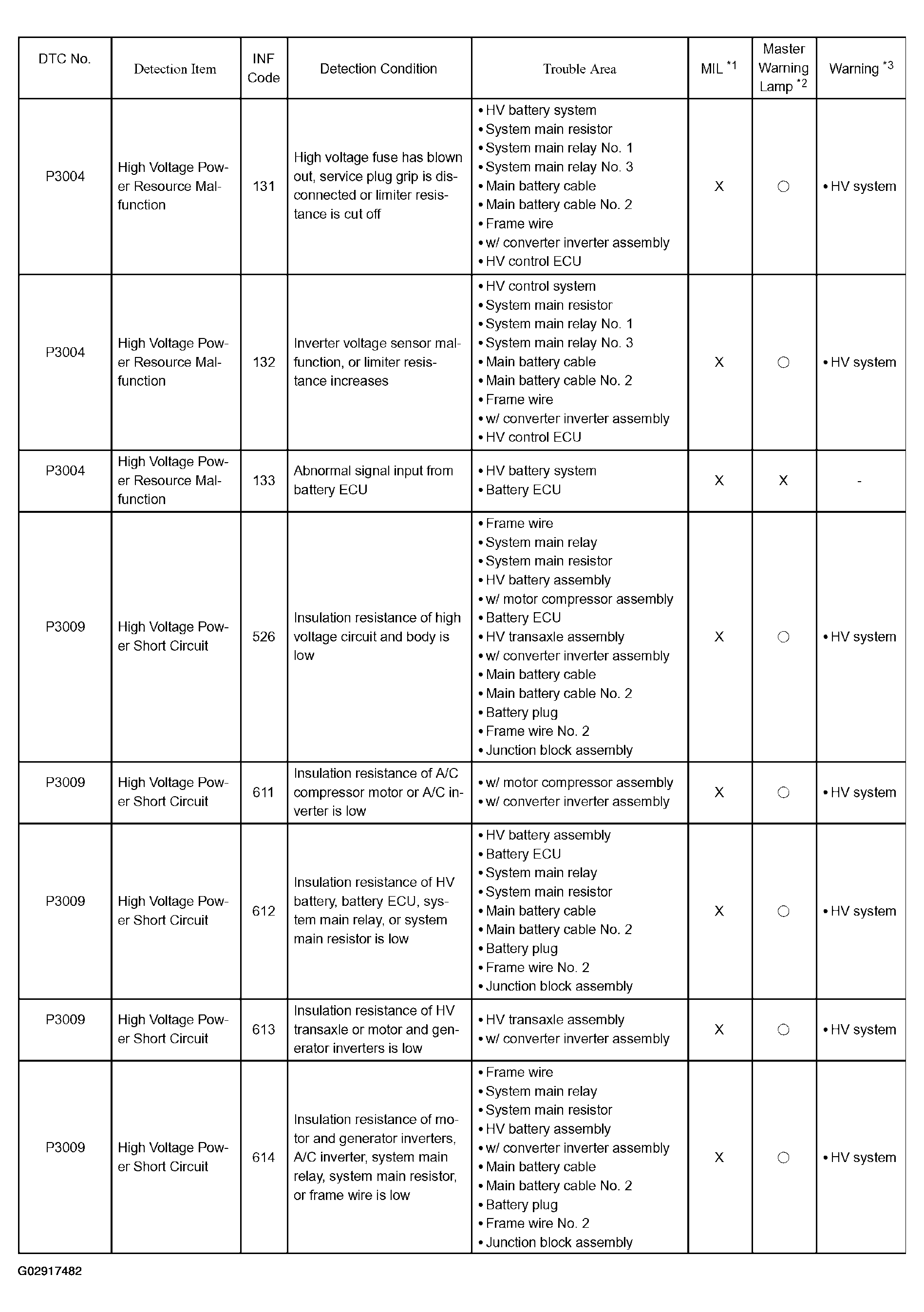

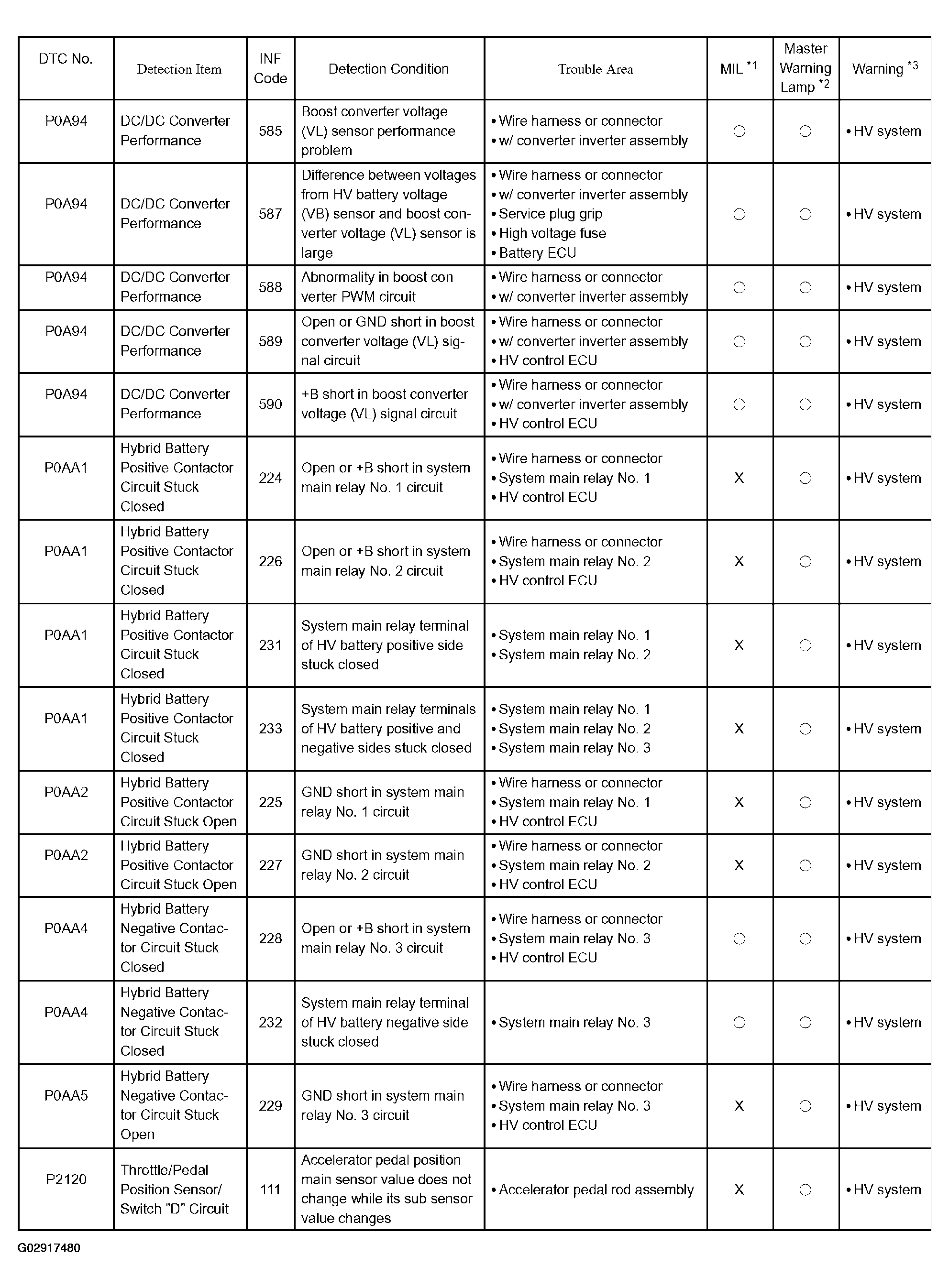

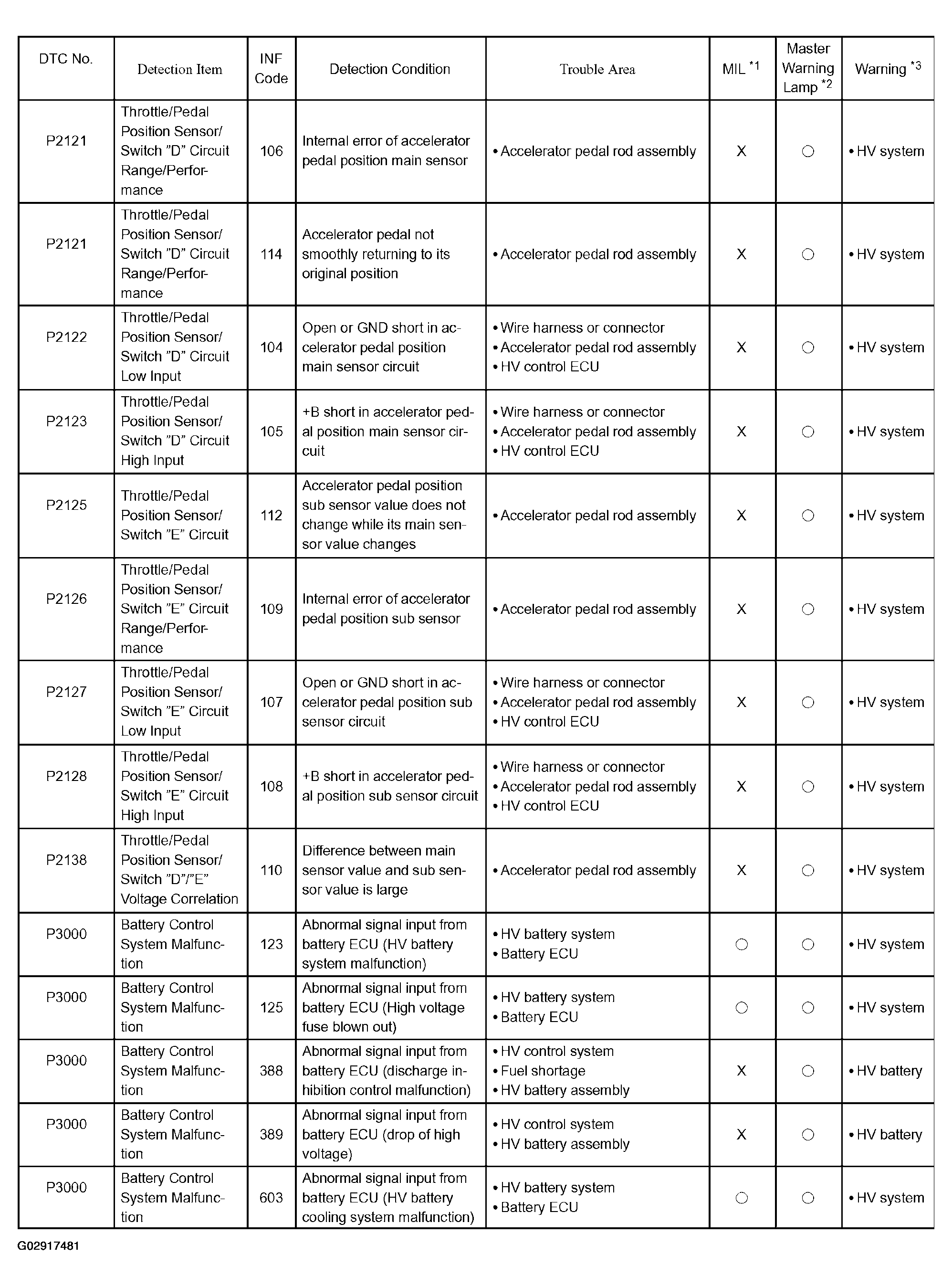

Fig 1: Diagnostic Trouble Code Chart (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

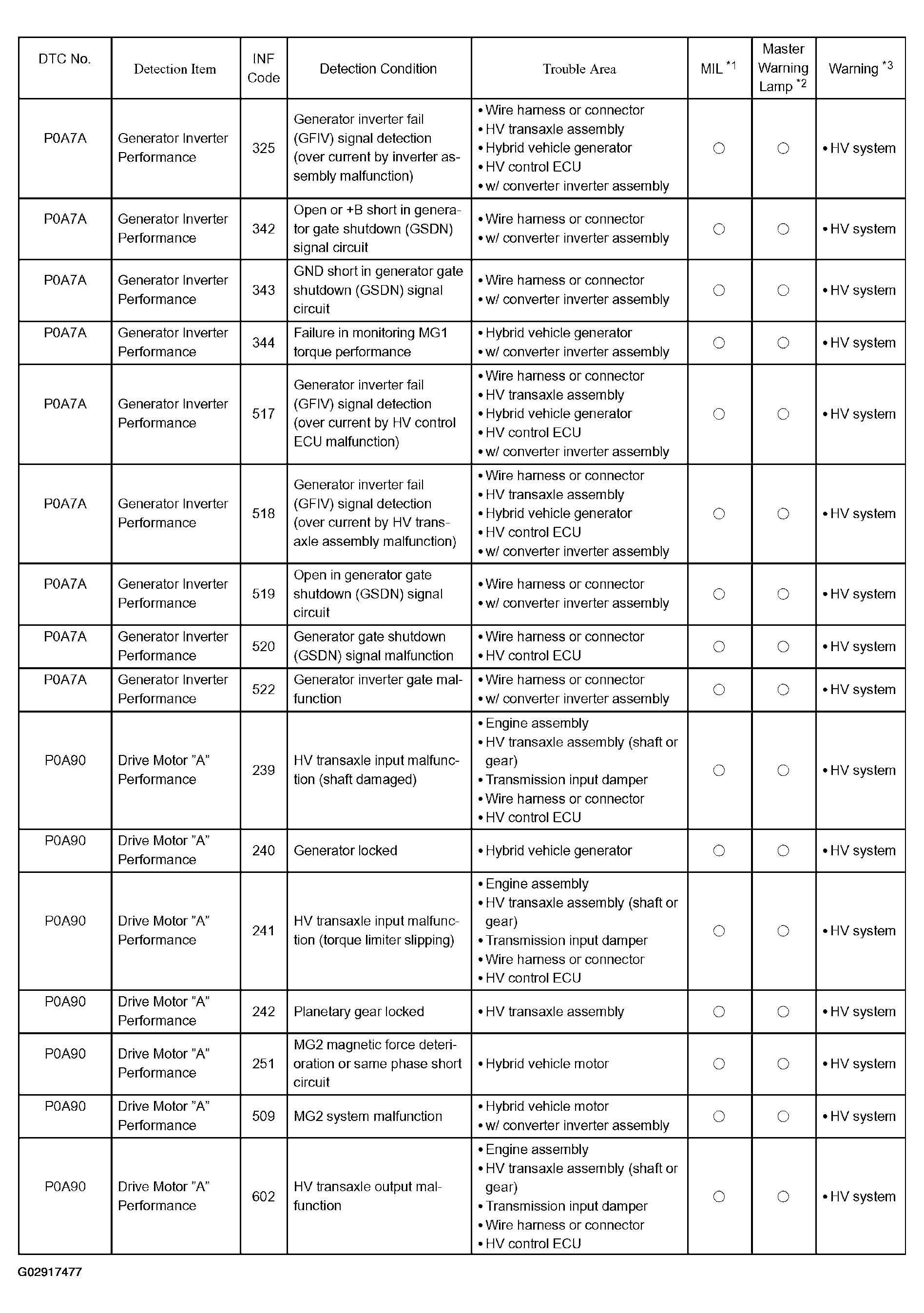

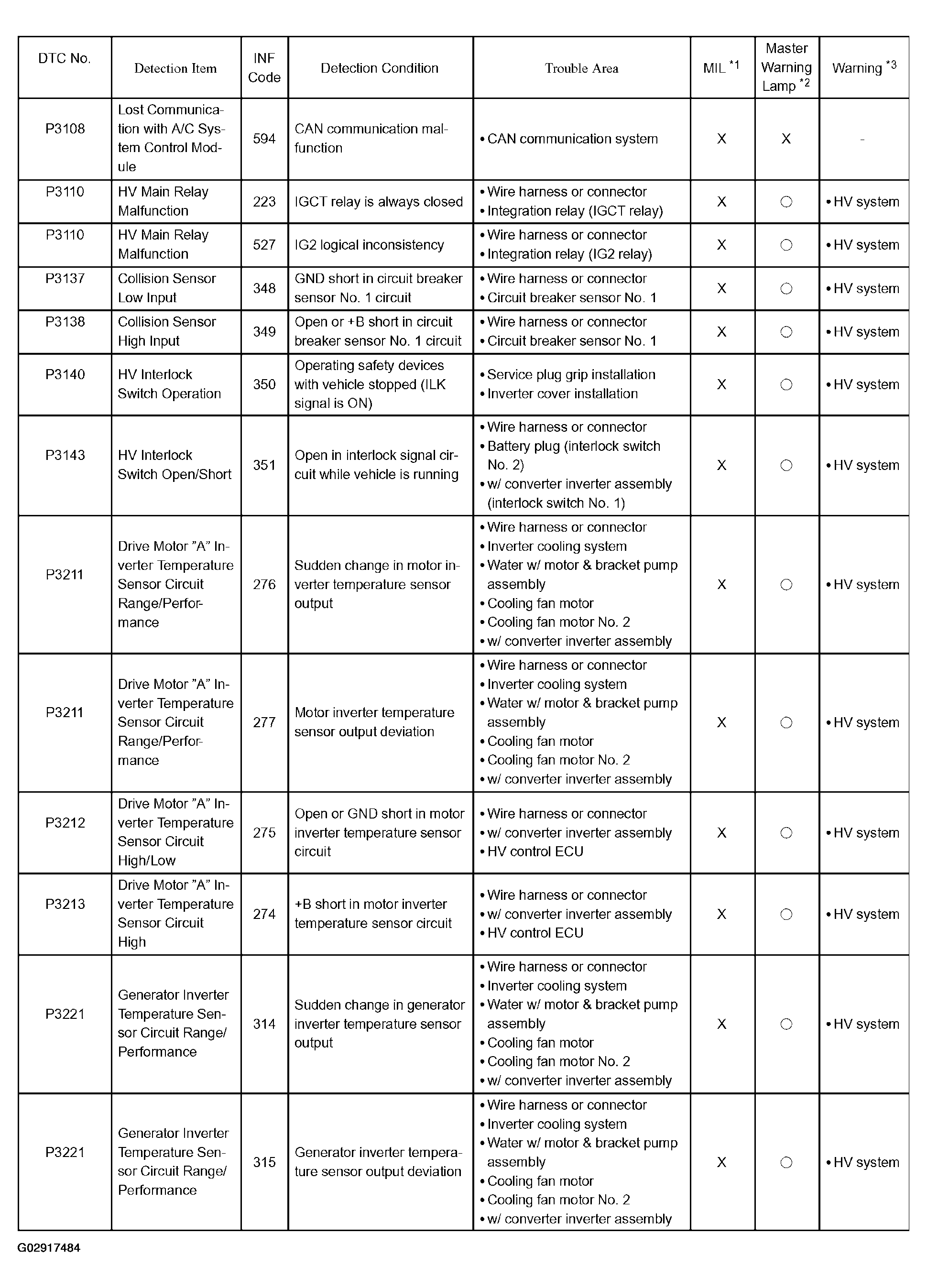

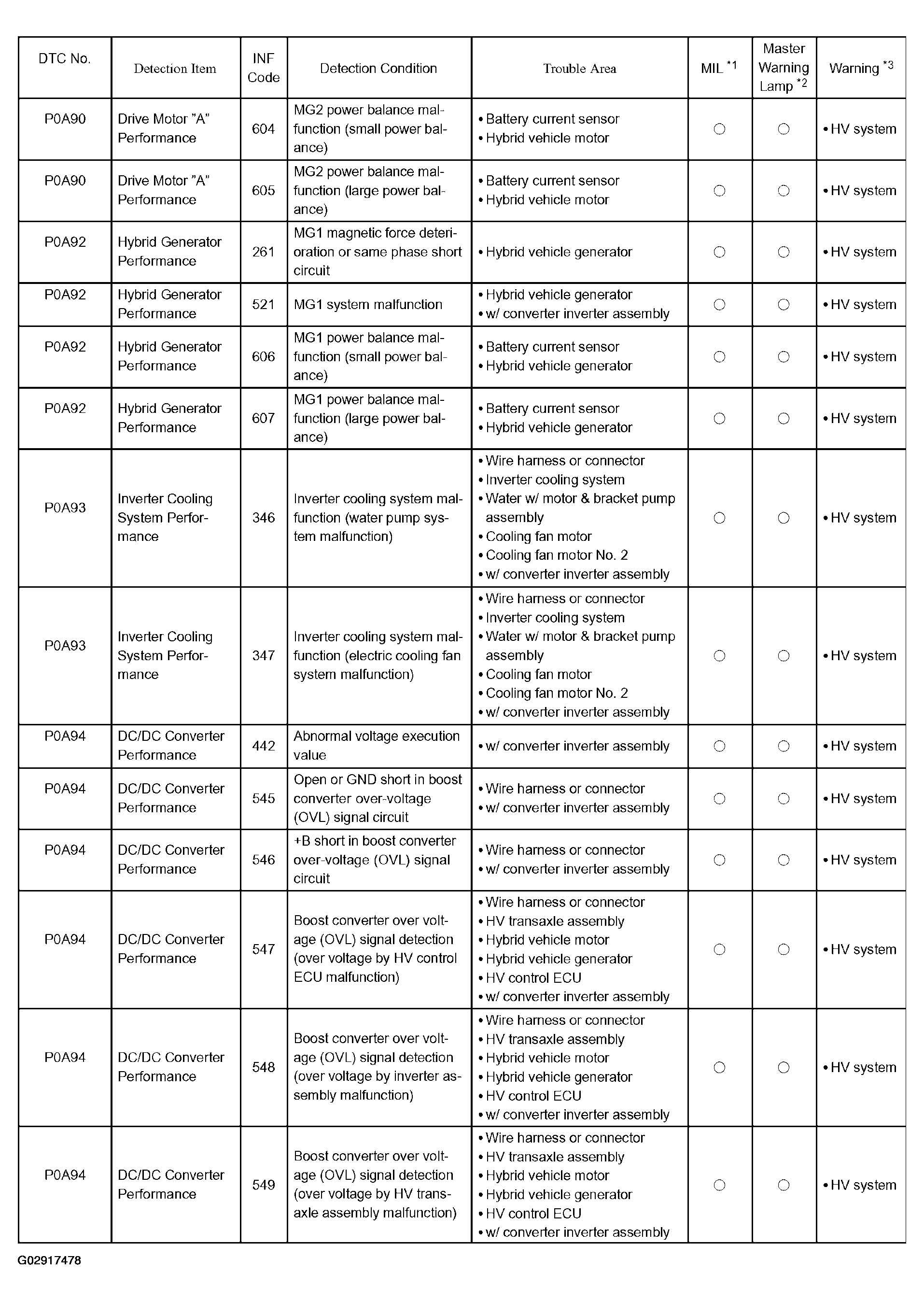

Fig 2: Diagnostic Trouble Code Chart (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

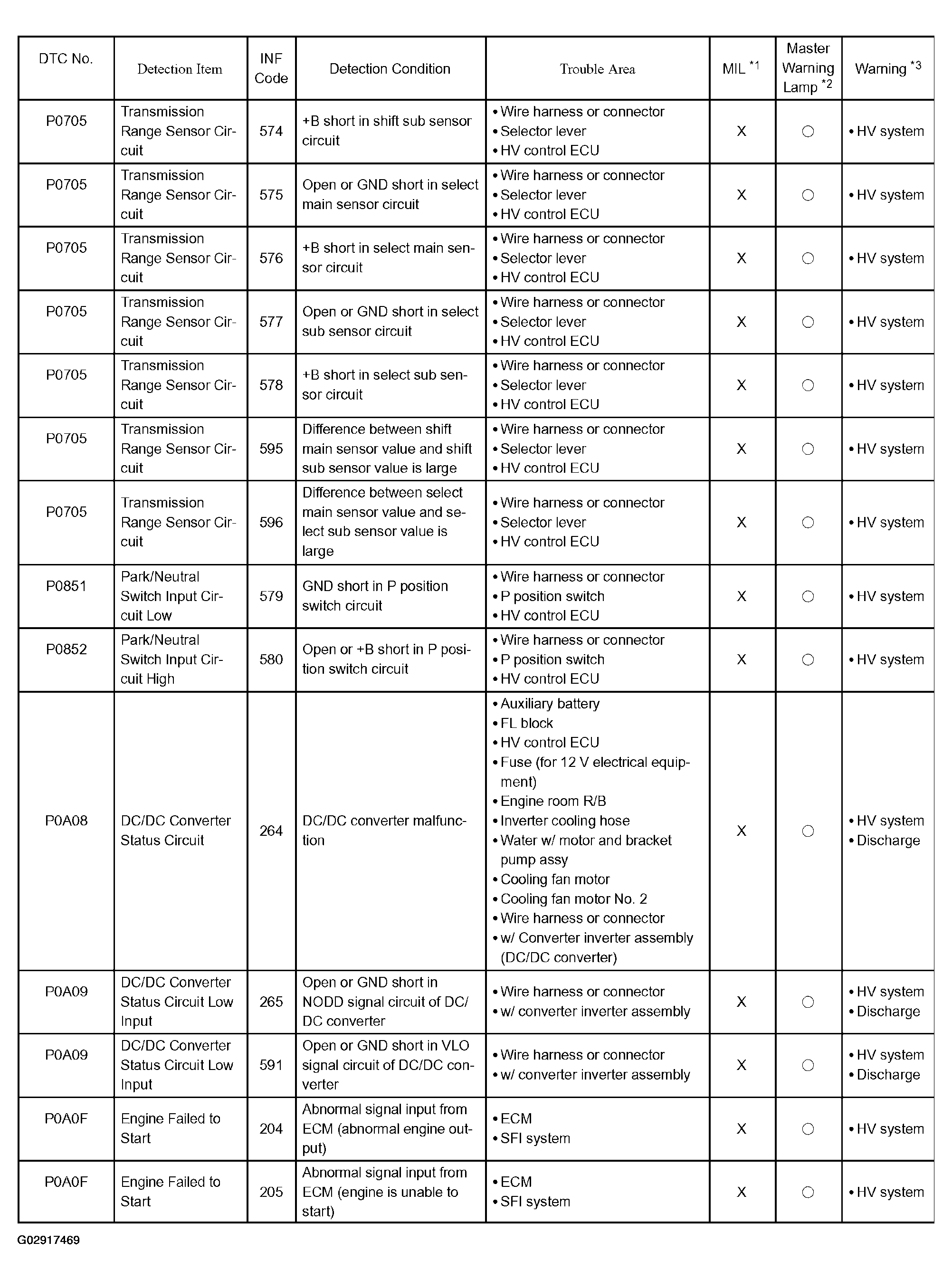

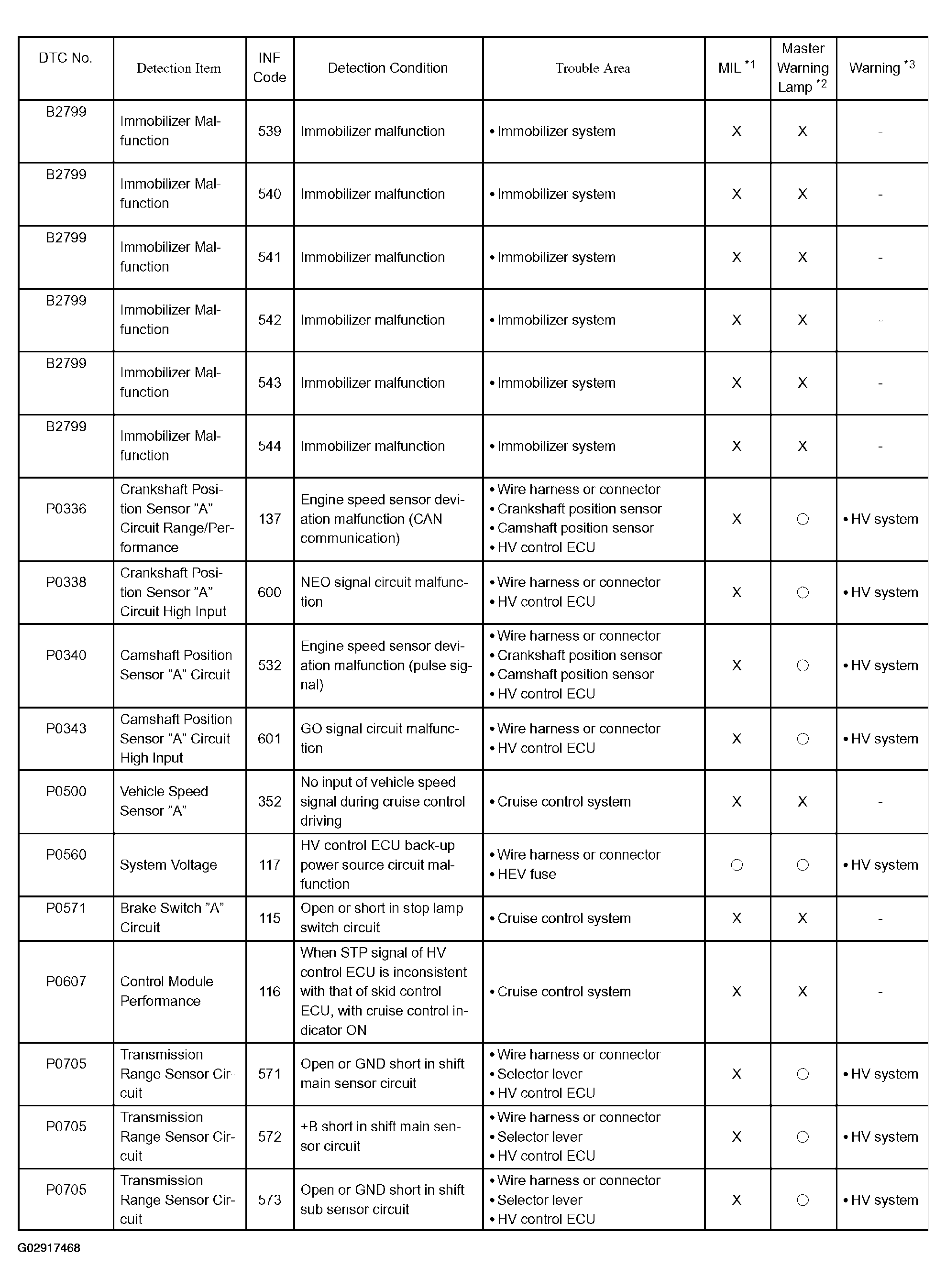

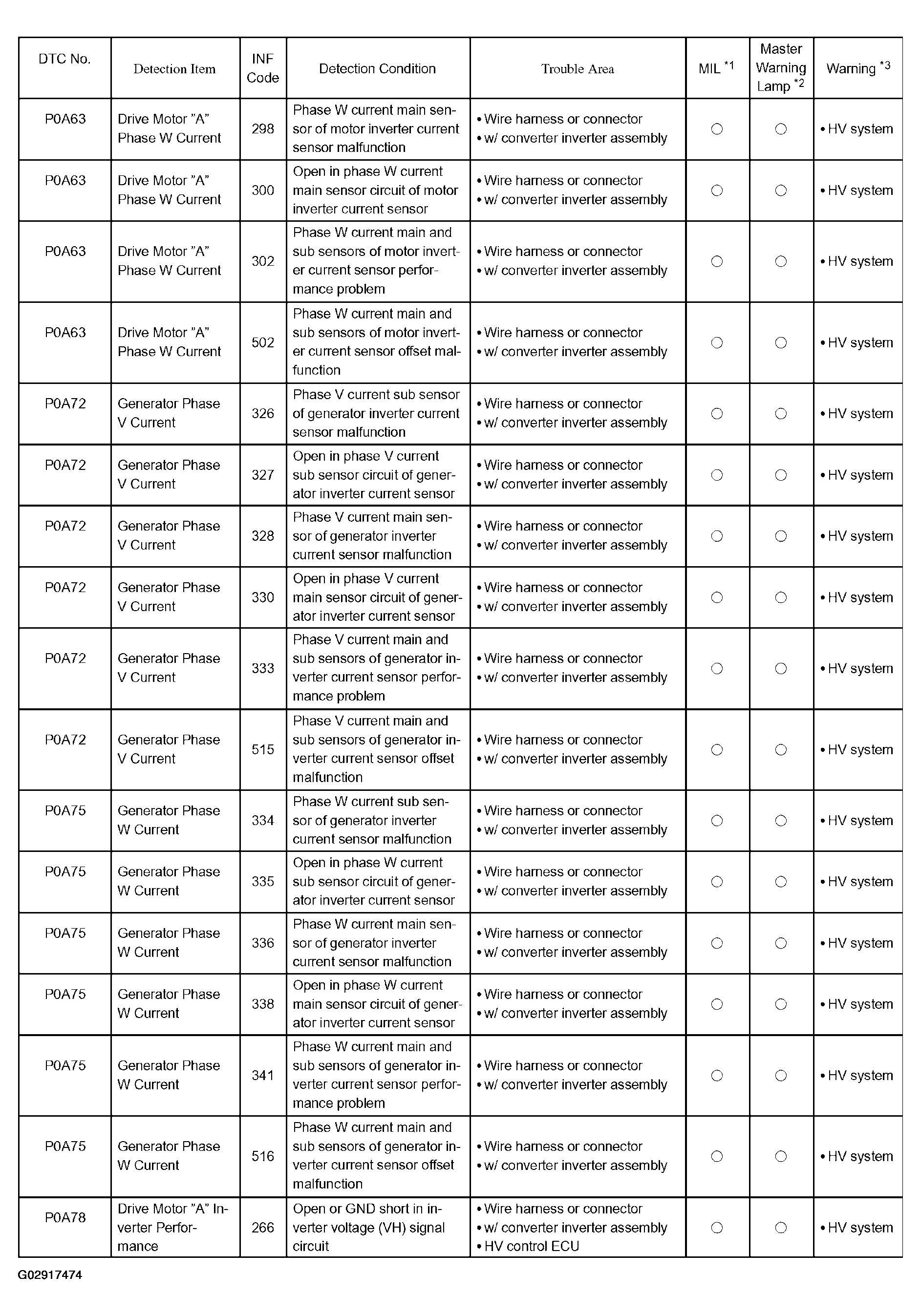

Fig 3: Diagnostic Trouble Code Chart (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

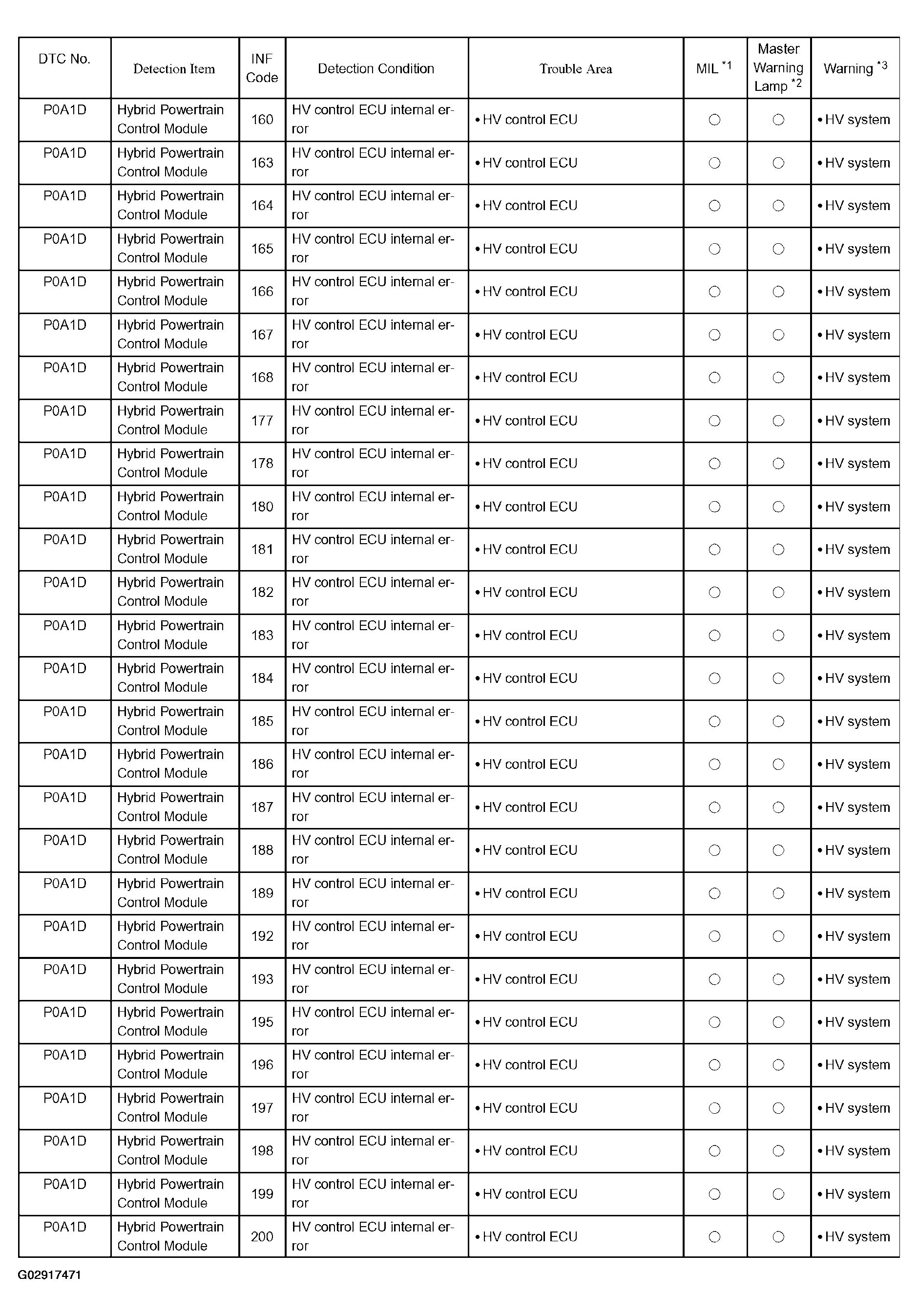

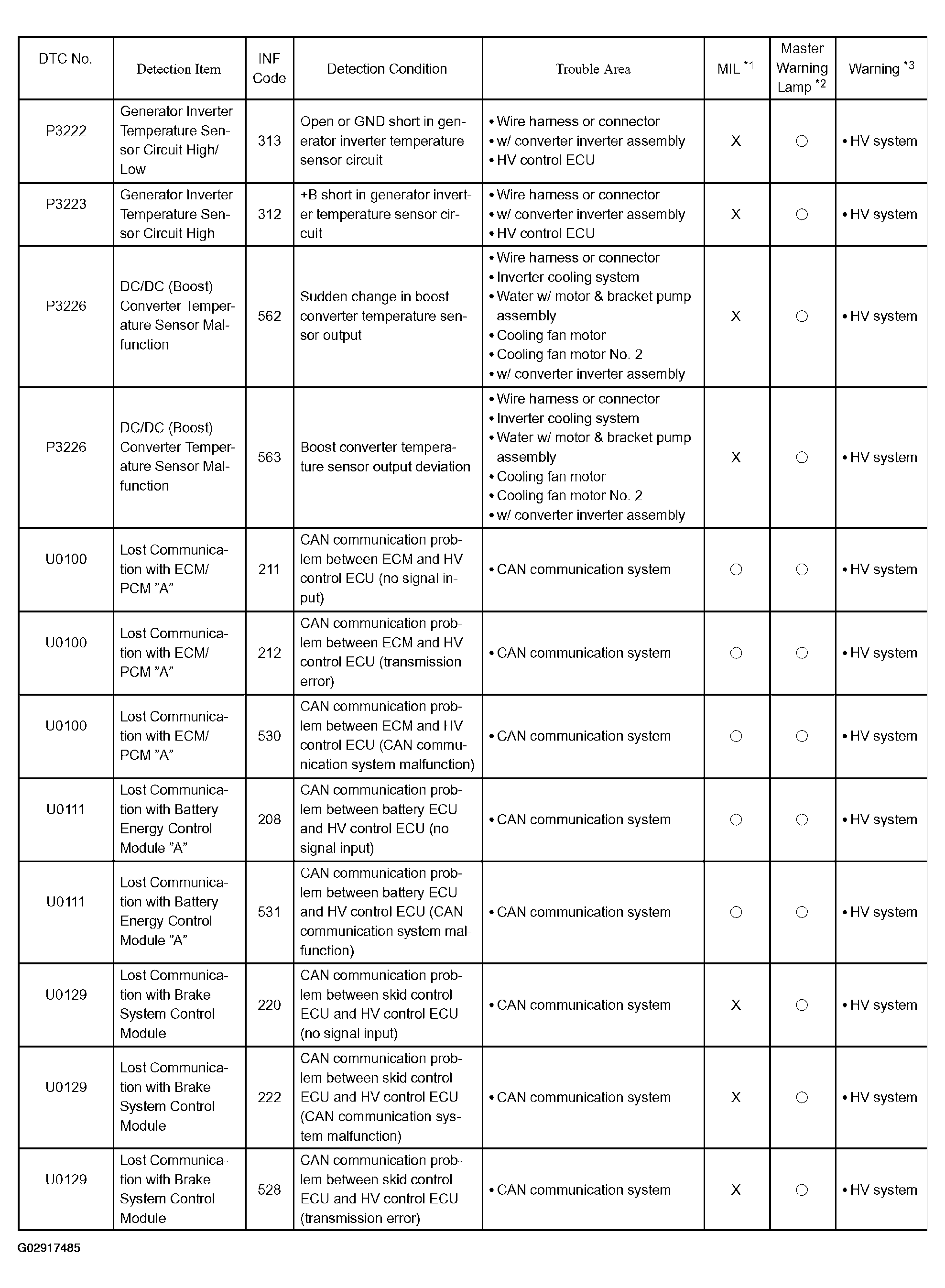

Fig 4: Diagnostic Trouble Code Chart (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

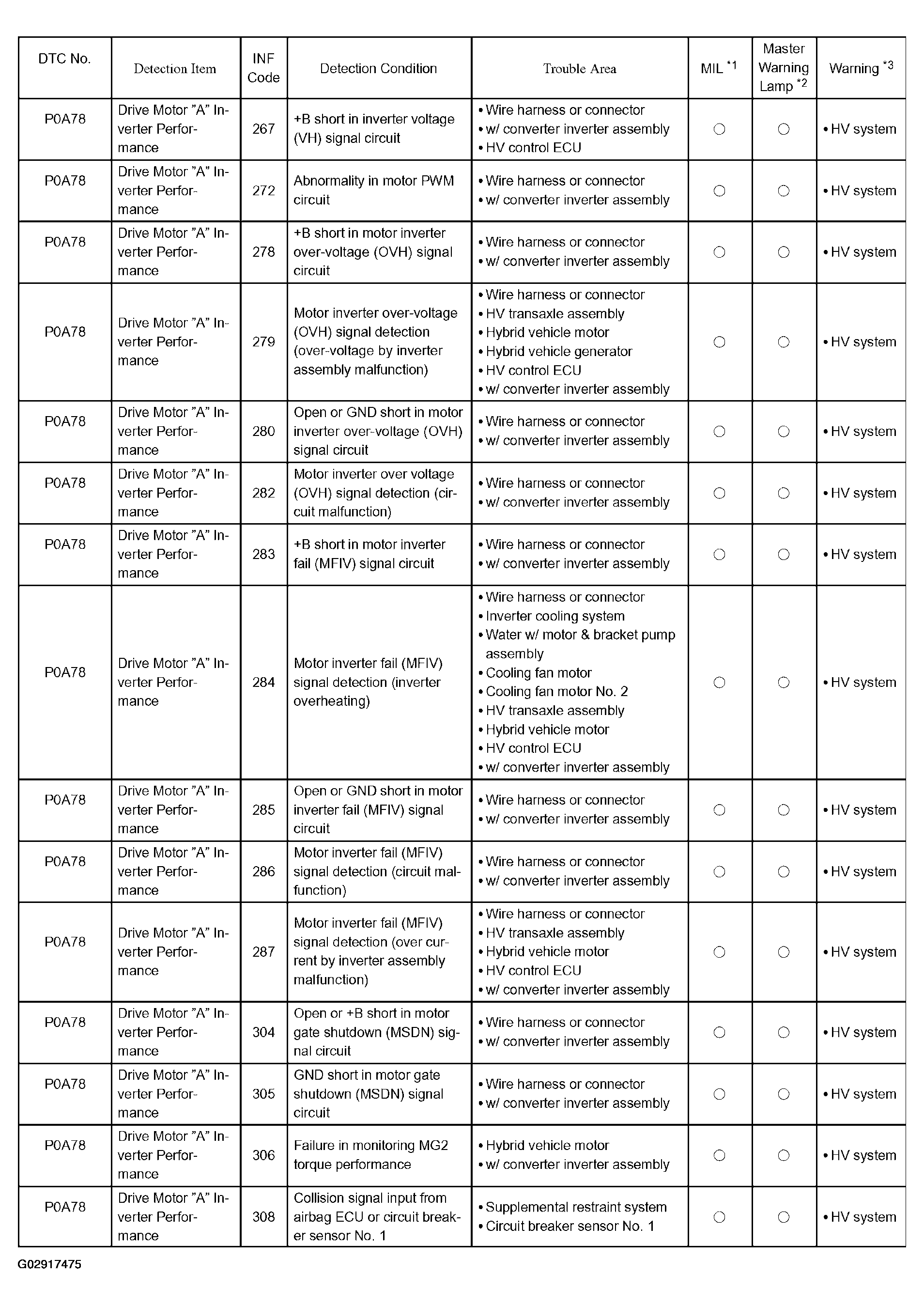

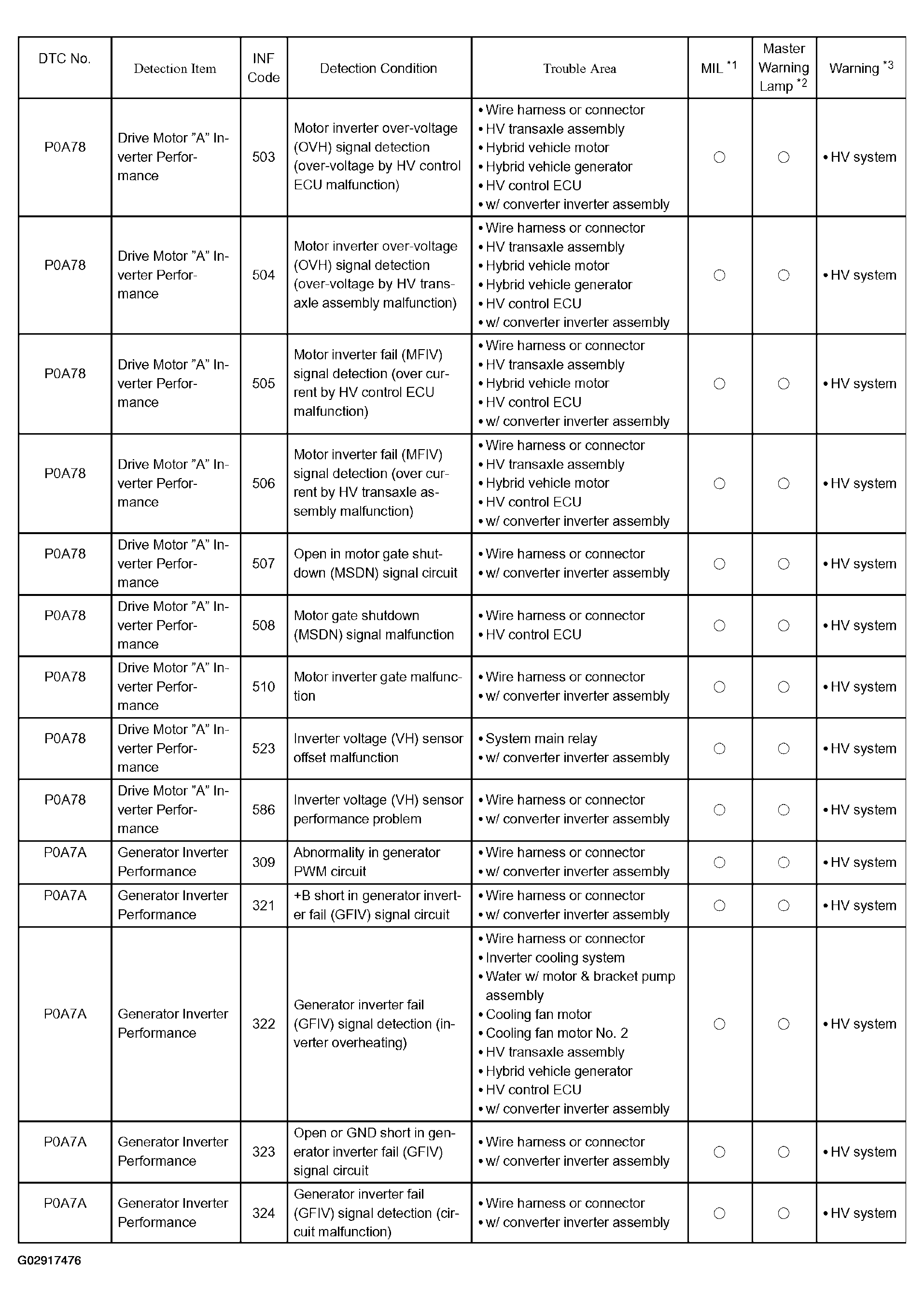

Fig 5: Diagnostic Trouble Code Chart (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

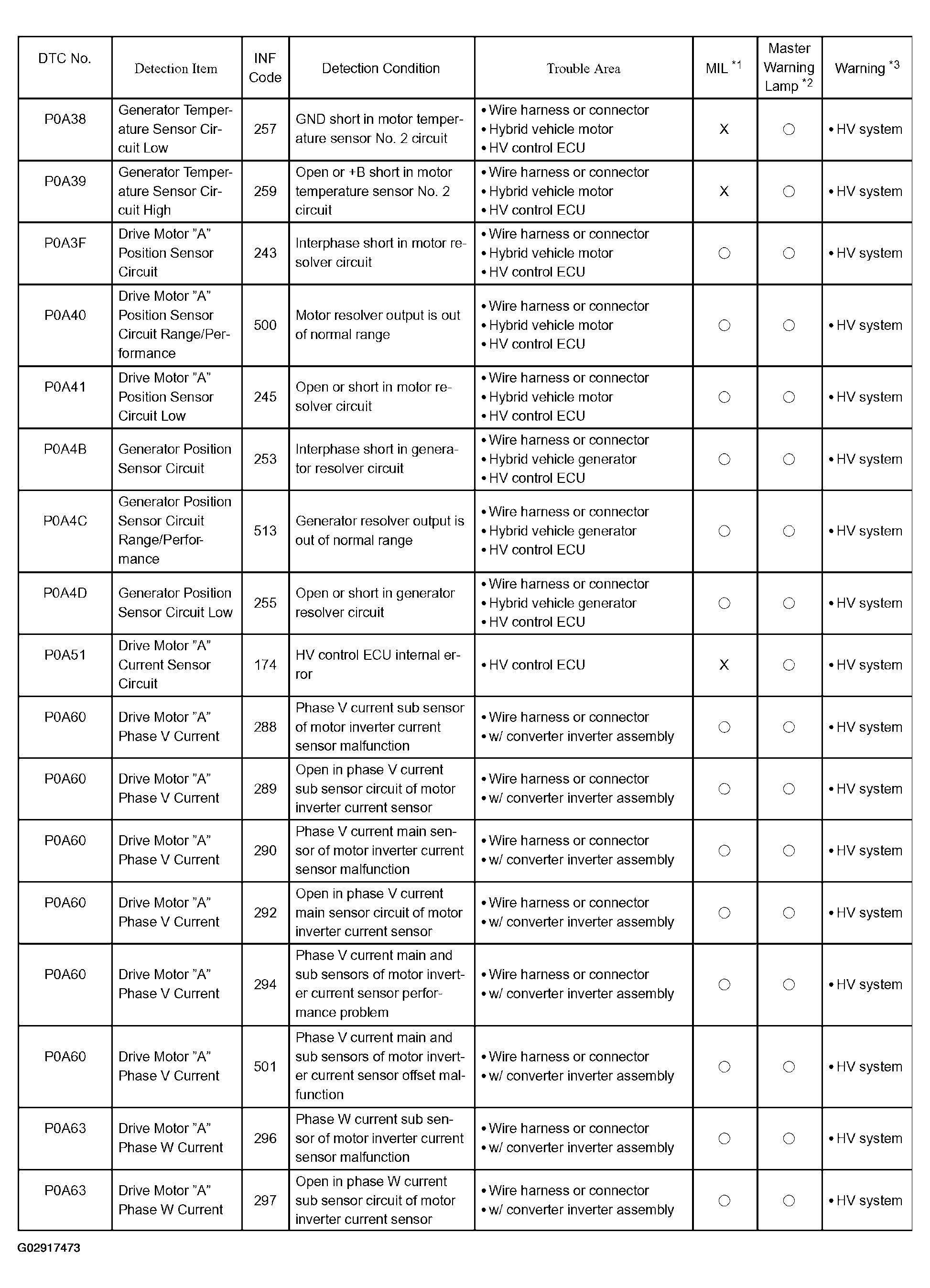

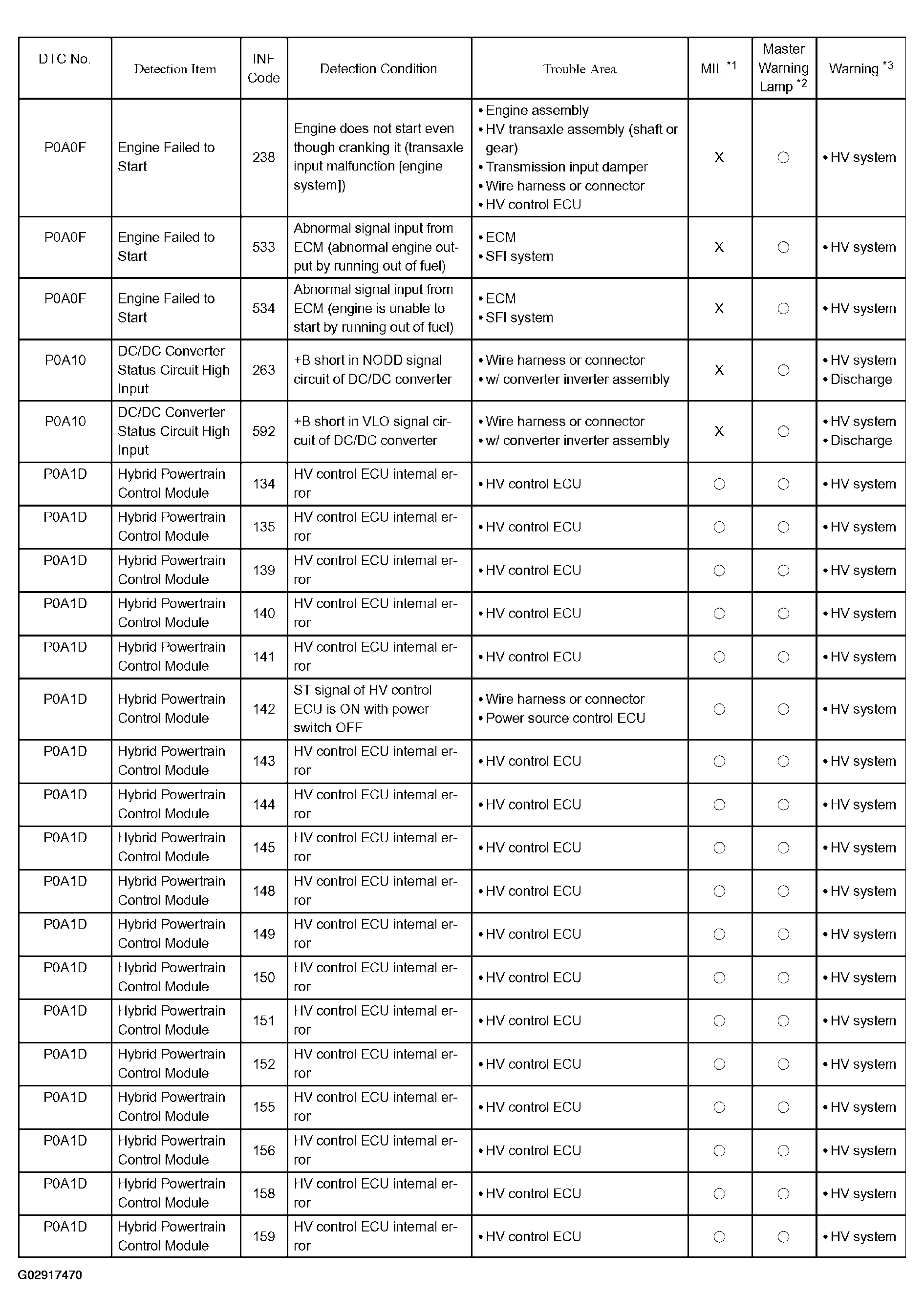

Fig 6: Diagnostic Trouble Code Chart (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

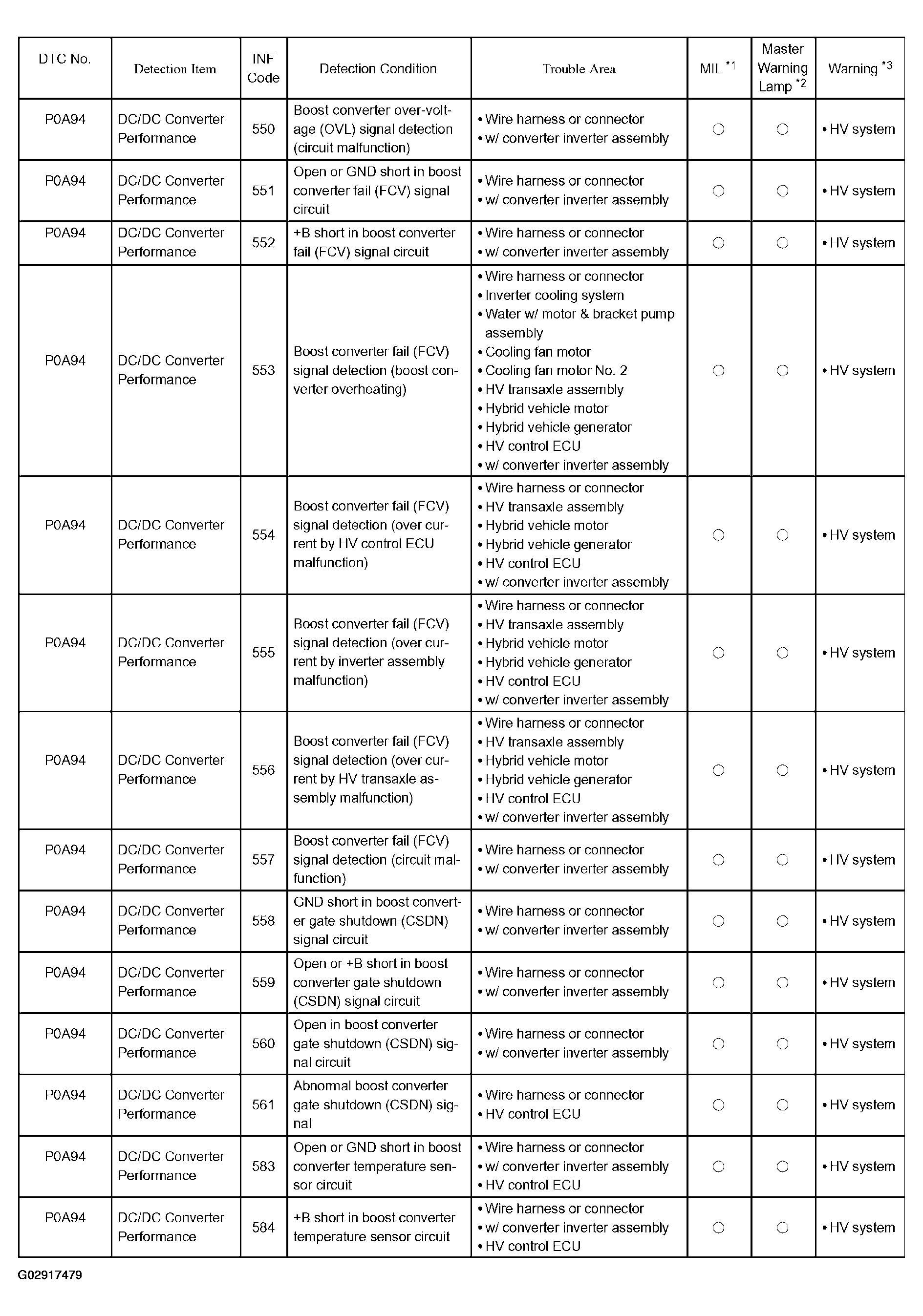

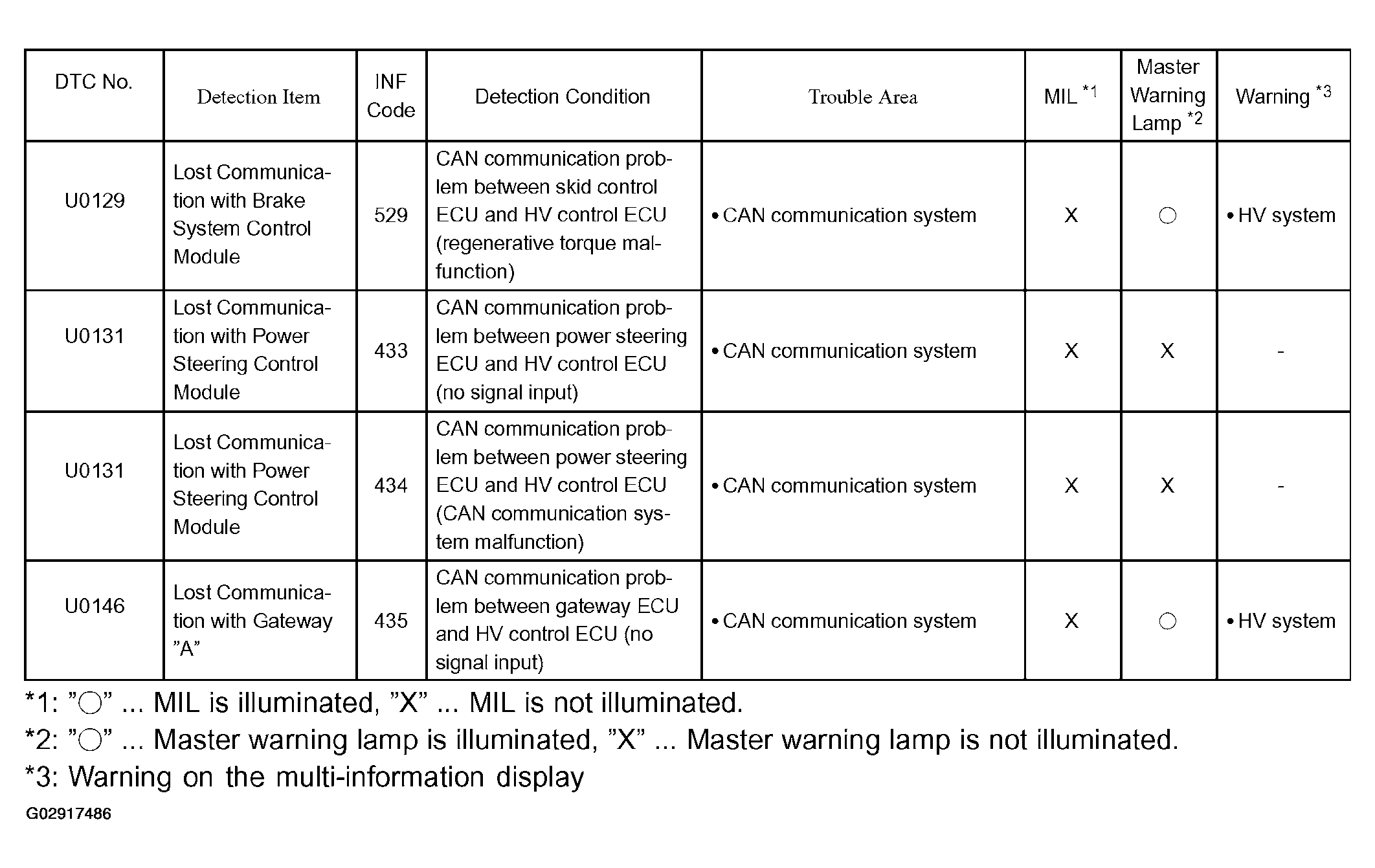

Fig 7: Diagnostic Trouble Code Chart (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

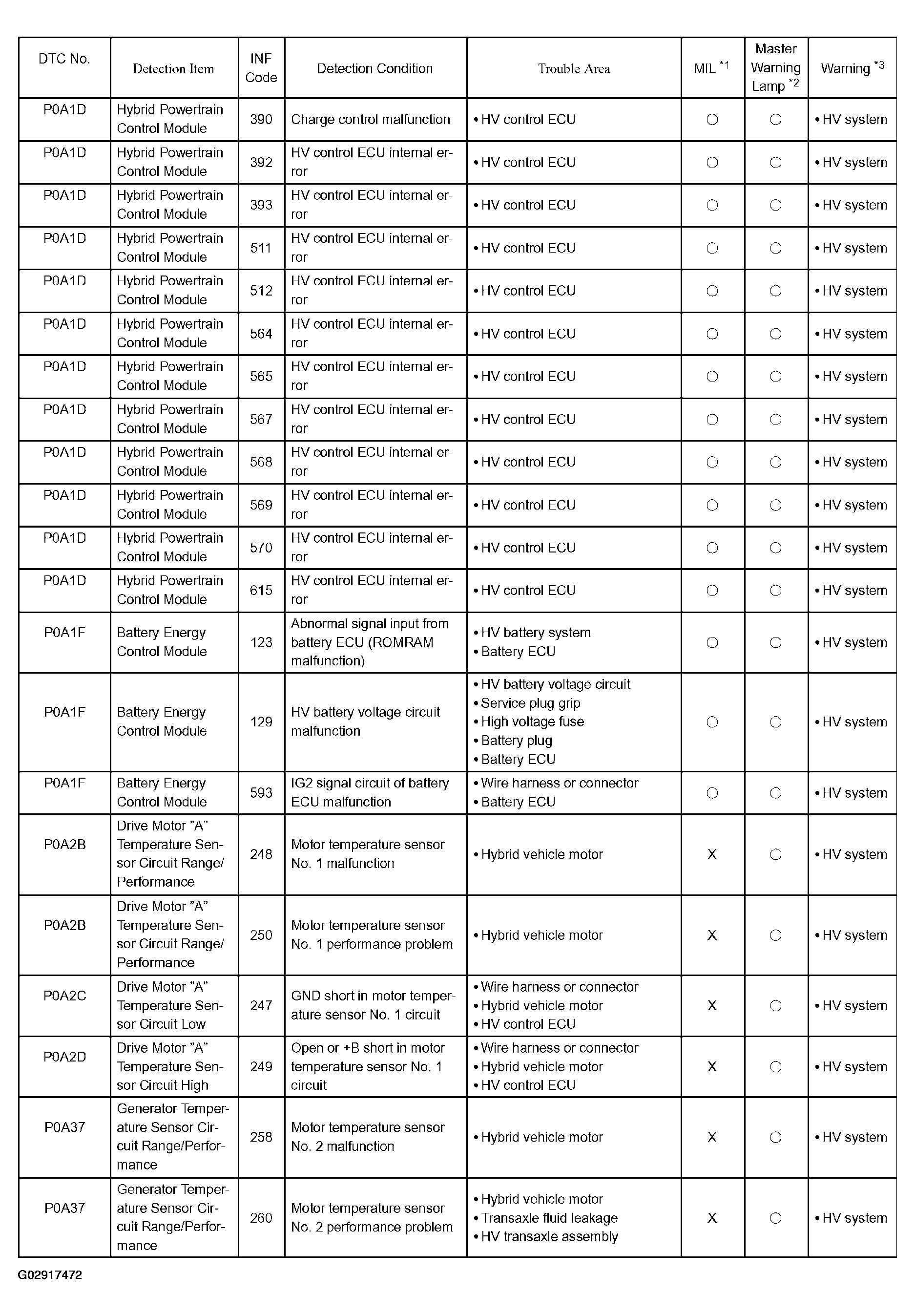

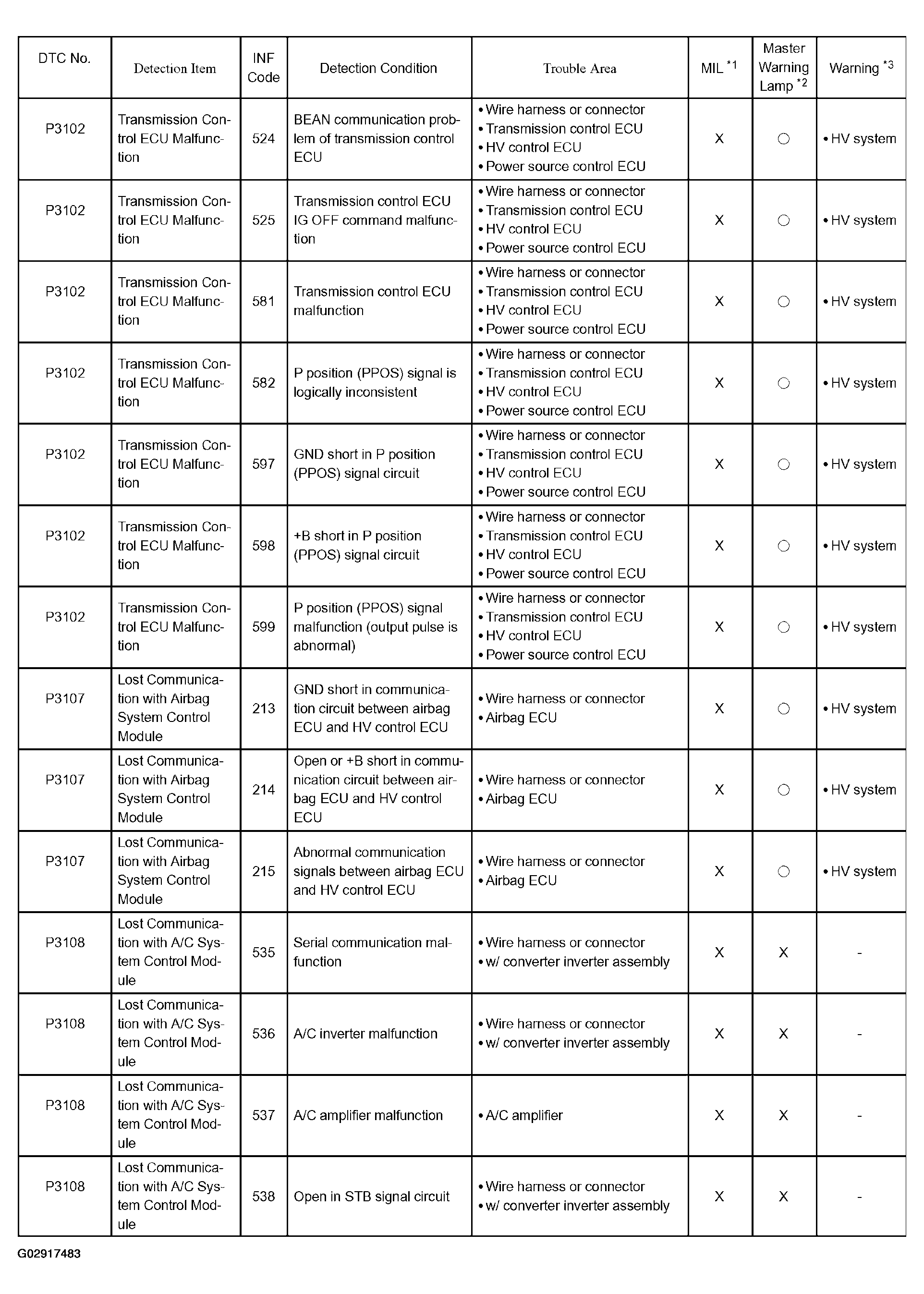

Fig 8: Diagnostic Trouble Code Chart (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Diagnostic Trouble Code Chart (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Diagnostic Trouble Code Chart (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Diagnostic Trouble Code Chart (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Diagnostic Trouble Code Chart (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Diagnostic Trouble Code Chart (13 Of 19)

Fig 14: Diagnostic Trouble Code Chart (14 Of 19)

Fig 15: Diagnostic Trouble Code Chart (15 Of 19)

Fig 16: Diagnostic Trouble Code Chart (16 Of 19)

Fig 17: Diagnostic Trouble Code Chart (17 Of 19)

Fig 18: Diagnostic Trouble Code Chart (18 Of 19)

Fig 19: Diagnostic Trouble Code Chart (19 Of 19)
