Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

The HV control ECU detects a wiring malfunction in the serial communication line of the A/C inverter.

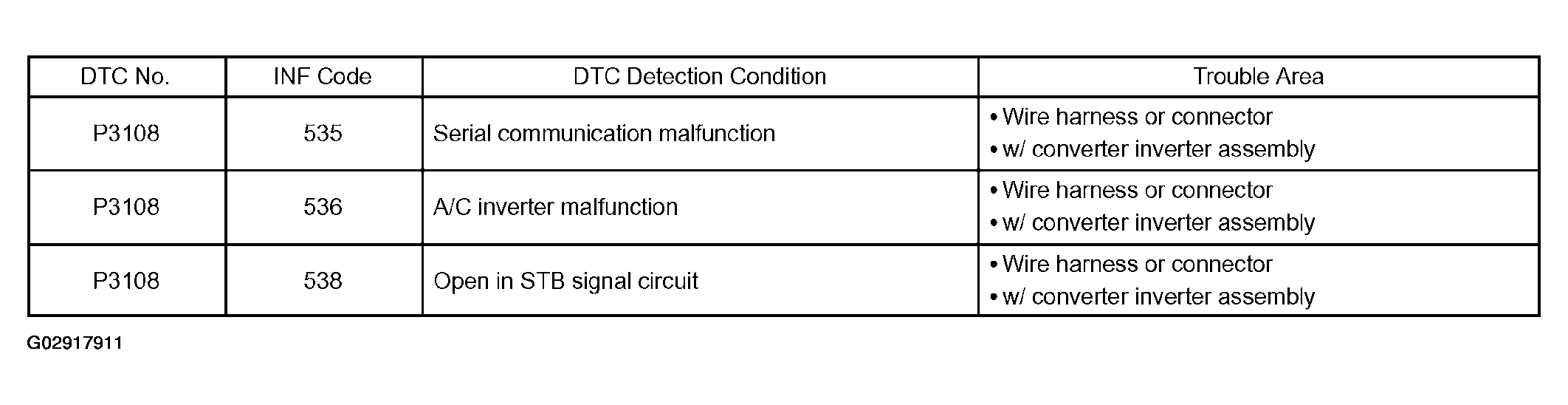

Fig 1: DTC Trouble Detection Table
G02917911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
