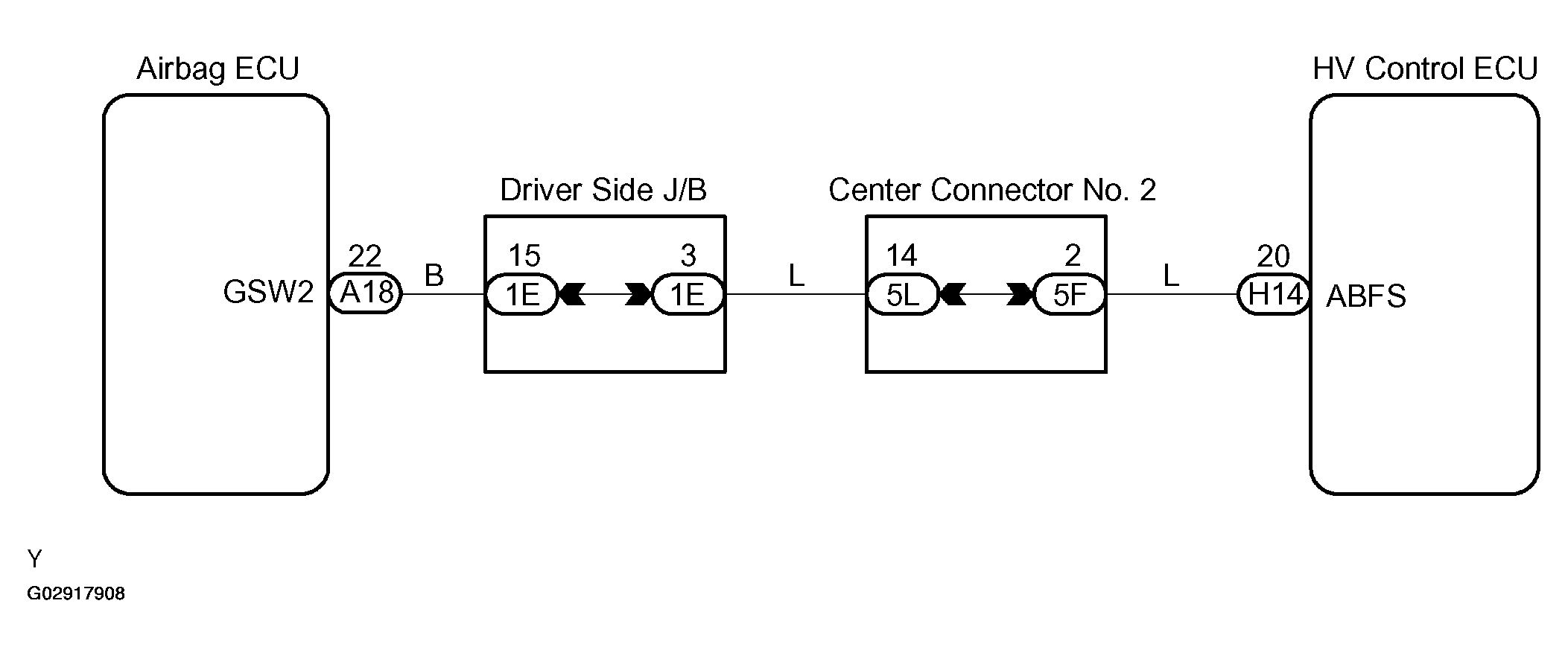

DTC P3107/213: Lost Communication With Airbag System Control Module, DTC P3107/214 Lost Communication With Airbag System Control Module, DTC P3107/215 Lost Communication With Airbag System Control Module: Wiring Diagram
WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
