Circuit Description
WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

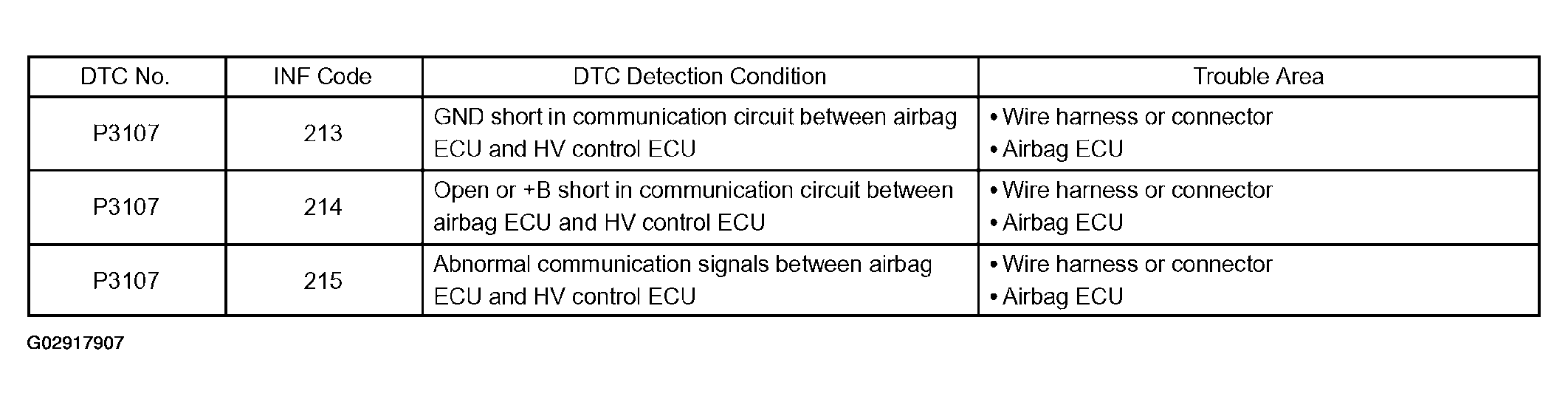

The HV control ECU detects a malfunction of the collision signal circuit from the airbag ECU and gives warning to the driver.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
