Inspect Front Washer Nozzle
WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

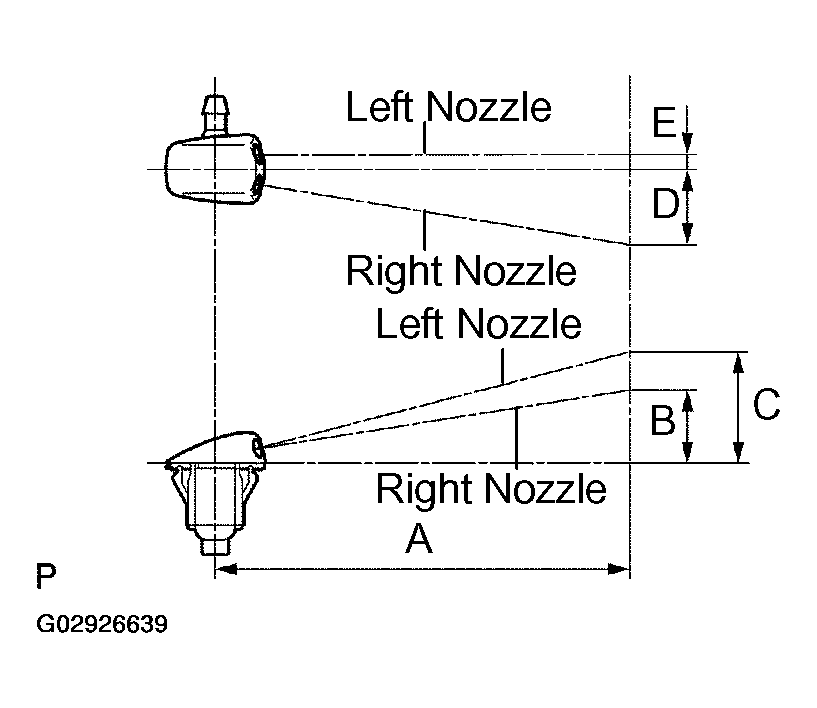

- While operating the washer, check that the distance between the point where the washer fluid from the nozzles hits the windshield and the upsurge area is within the range indicated by the hatched line.
A: Approx. 400 mm (15.75 in.)
B: Approx. 65.1 mm (2.56 in.)
C: Approx. 101.5 mm (3.99 in.)
D: Approx. 68.2 mm (2.69 in.)
E: Approx. 4.5 mm (0.18 in.)
- Check if the lower point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass which is wiped by the wiper blades).
