Terminals Of Ecu

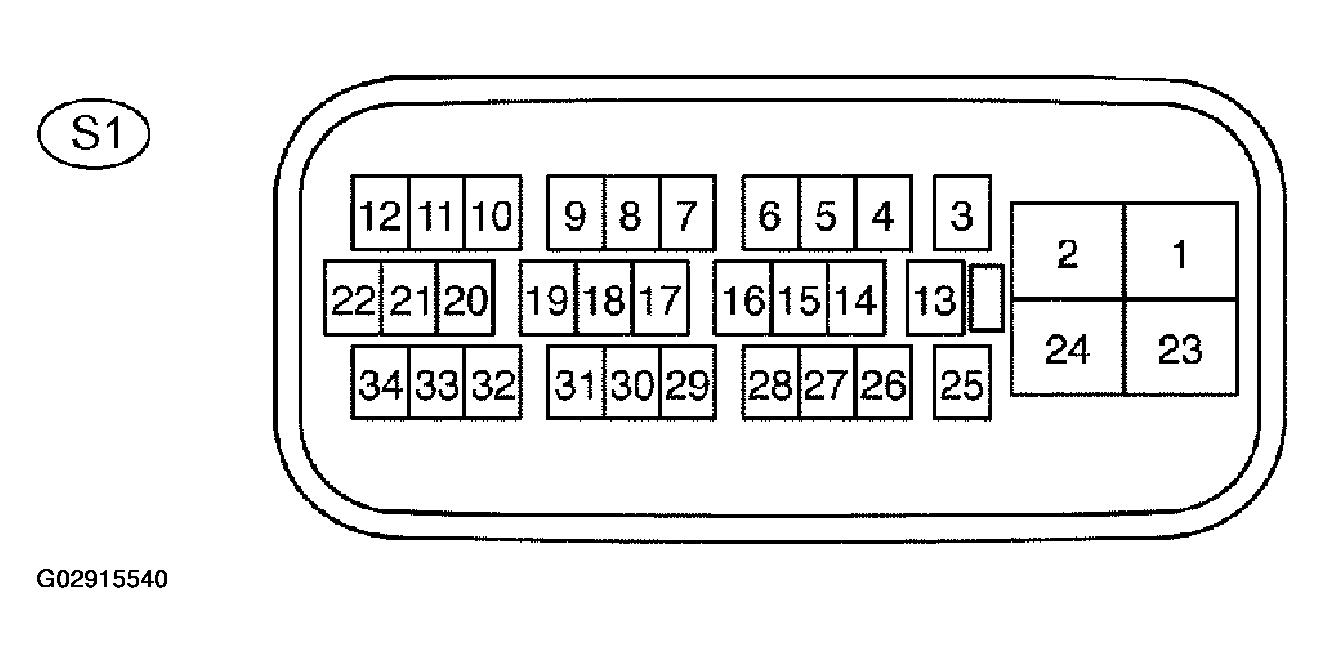

Fig 1: Identifying ABS ECU Terminals
G02915540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

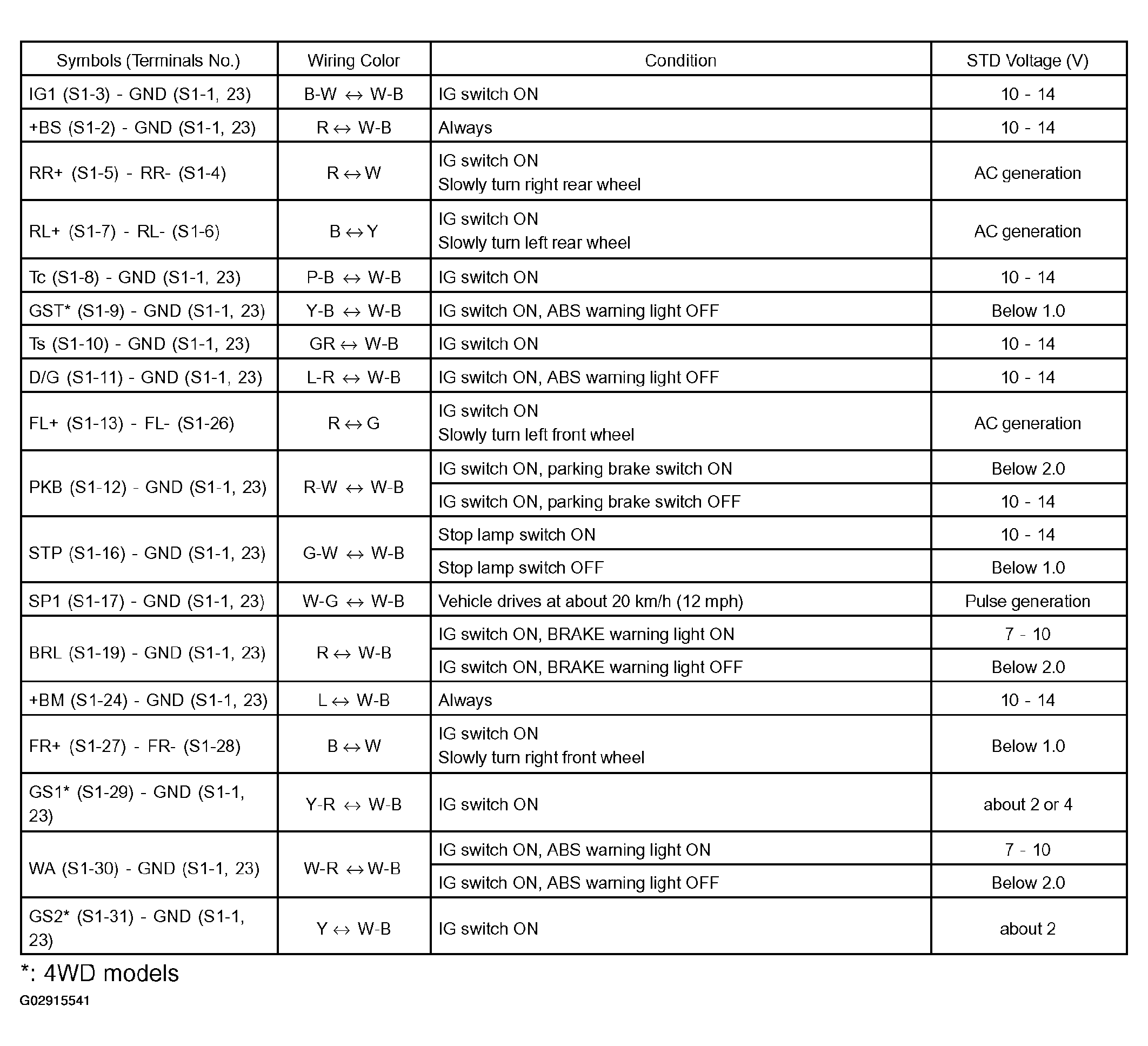

Fig 2: ABS ECU Pin Voltage Chart
G02915541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
