Mode Door Actuator-Rear - DK. Gray 2 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

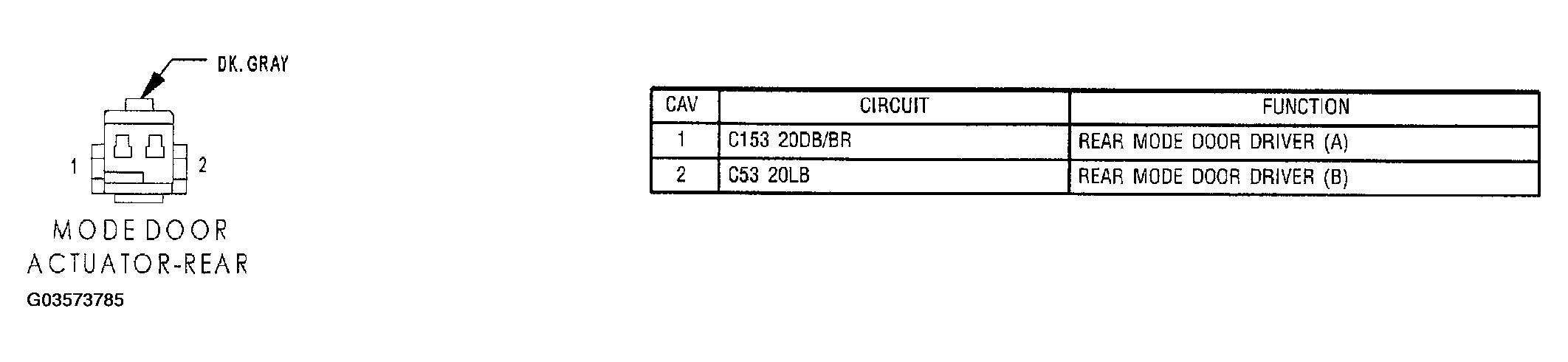

Fig 1: Rear Mode Door Actuator Connector End View
G03573785Courtesy of DAIMLERCHRYSLER CORP.
