Stop Light Switch Circuit: Wiring Diagram

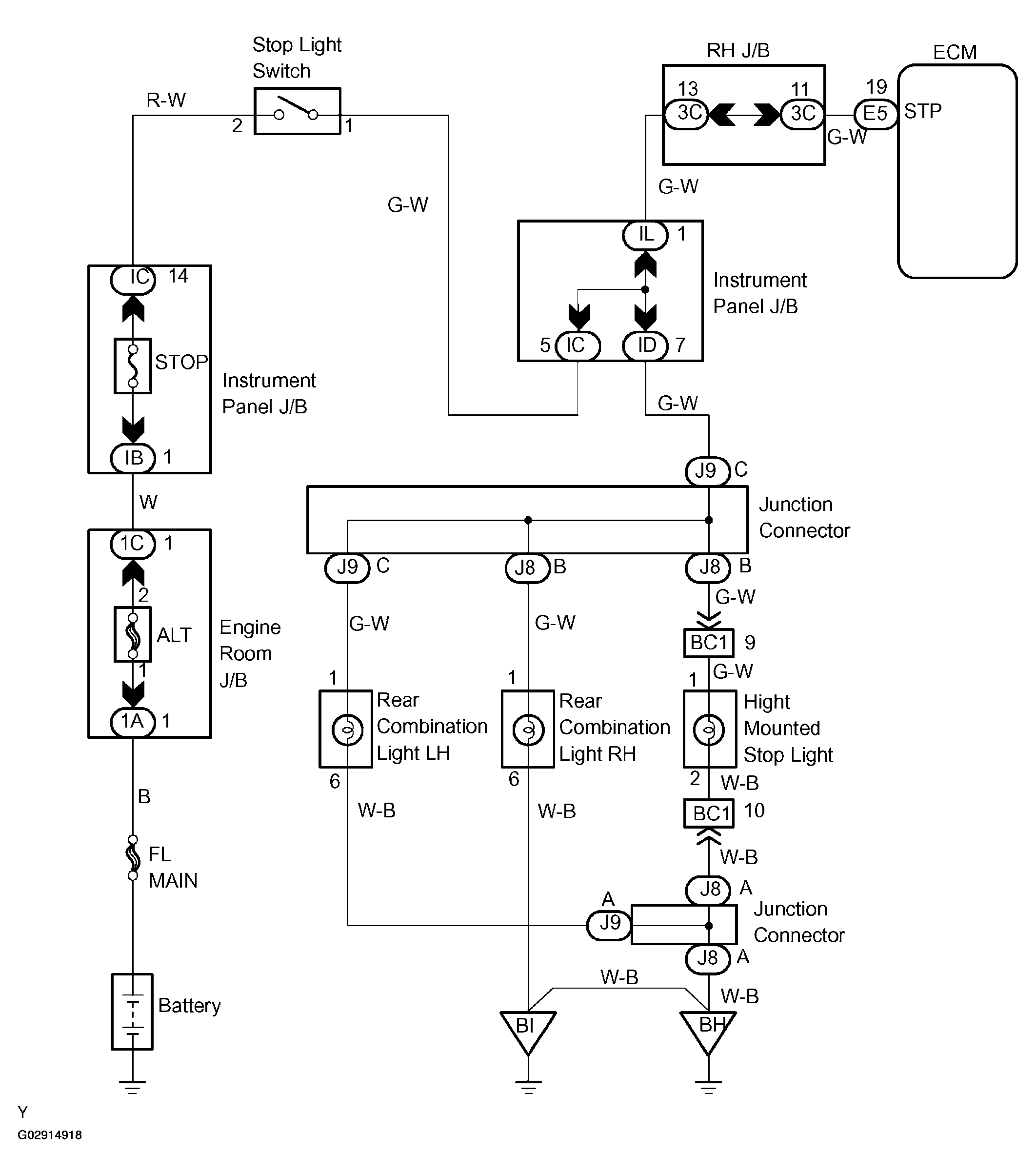

Fig 1: Wiring Diagram Stop Light Switch Circuit
G02914918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
