Instrument Panel/Meter: Components

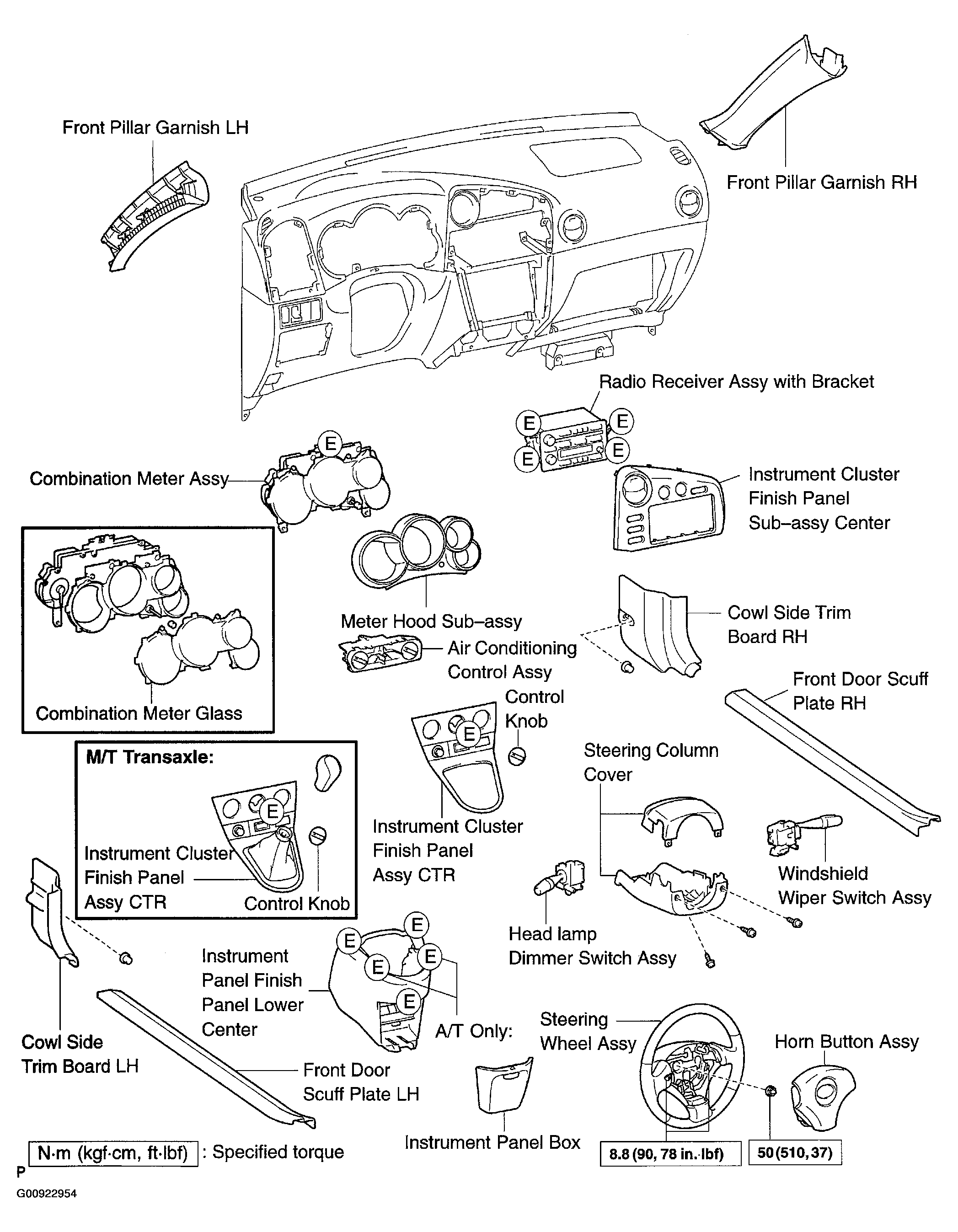

Fig 1: Identifying Components Of Instrument Panel/Meter (1 Of 2)
G00922954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

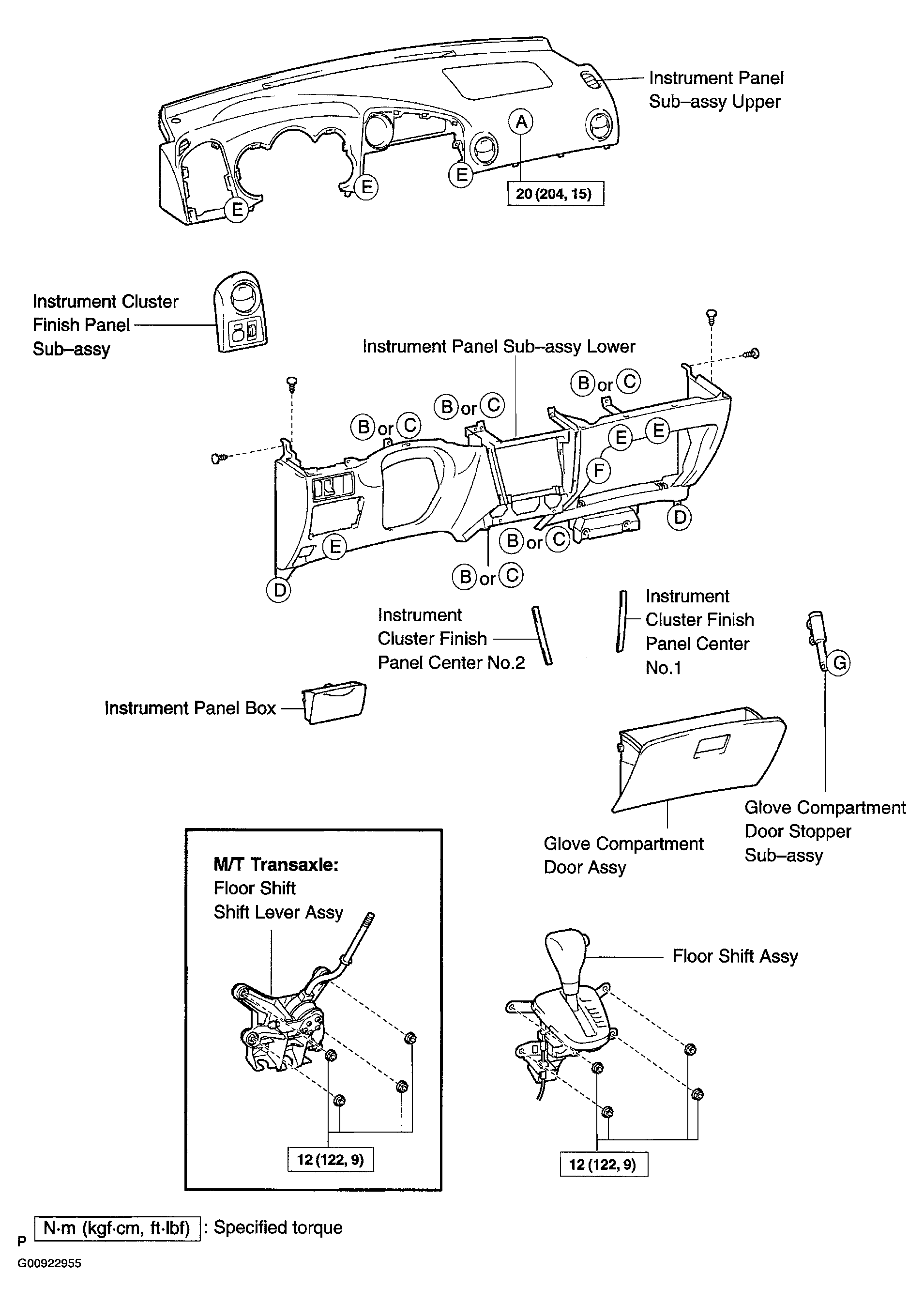

Fig 2: Identifying Components Of Instrument Panel/Meter (2 Of 2)
G00922955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
