Floor Console Base Assembly: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

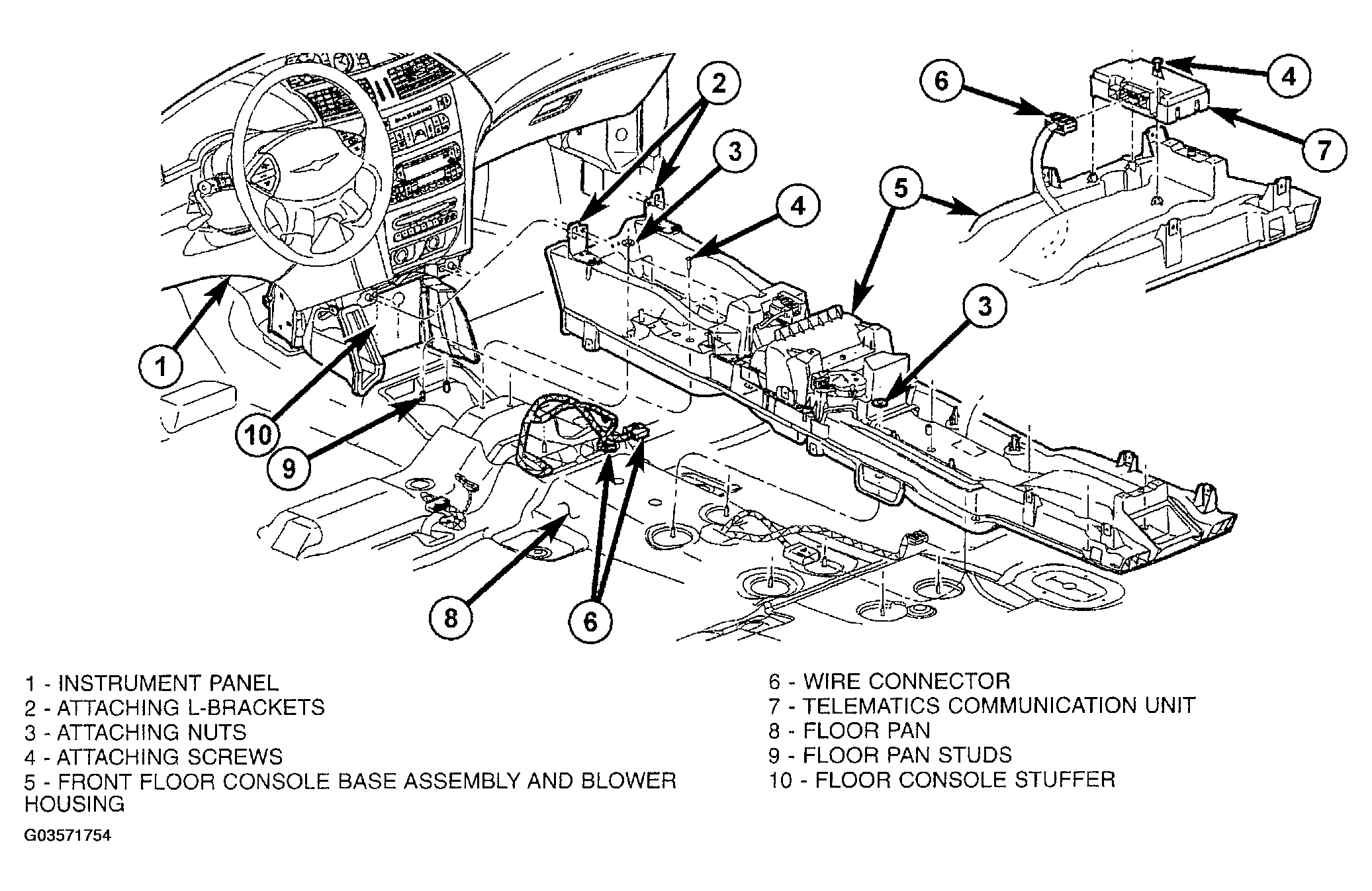

  1. Place floor console base assembly into position (Figure).
  2. Install wire harnesses through console base into position.
  3. Connect wire connectors.
  4. Install two screws attaching L-brackets to instrument panel.
  5. Install nine attaching nuts and washers to weld studs.
  6. Install shift mechanism. (Refer to SHIFT MECHANISM ).
  7. Install front and rear floor consoles. (Refer to INSTALLATION ) and (Refer to INSTALLATION ).
