Powertrain Control Module C1 - Black/Black 38 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

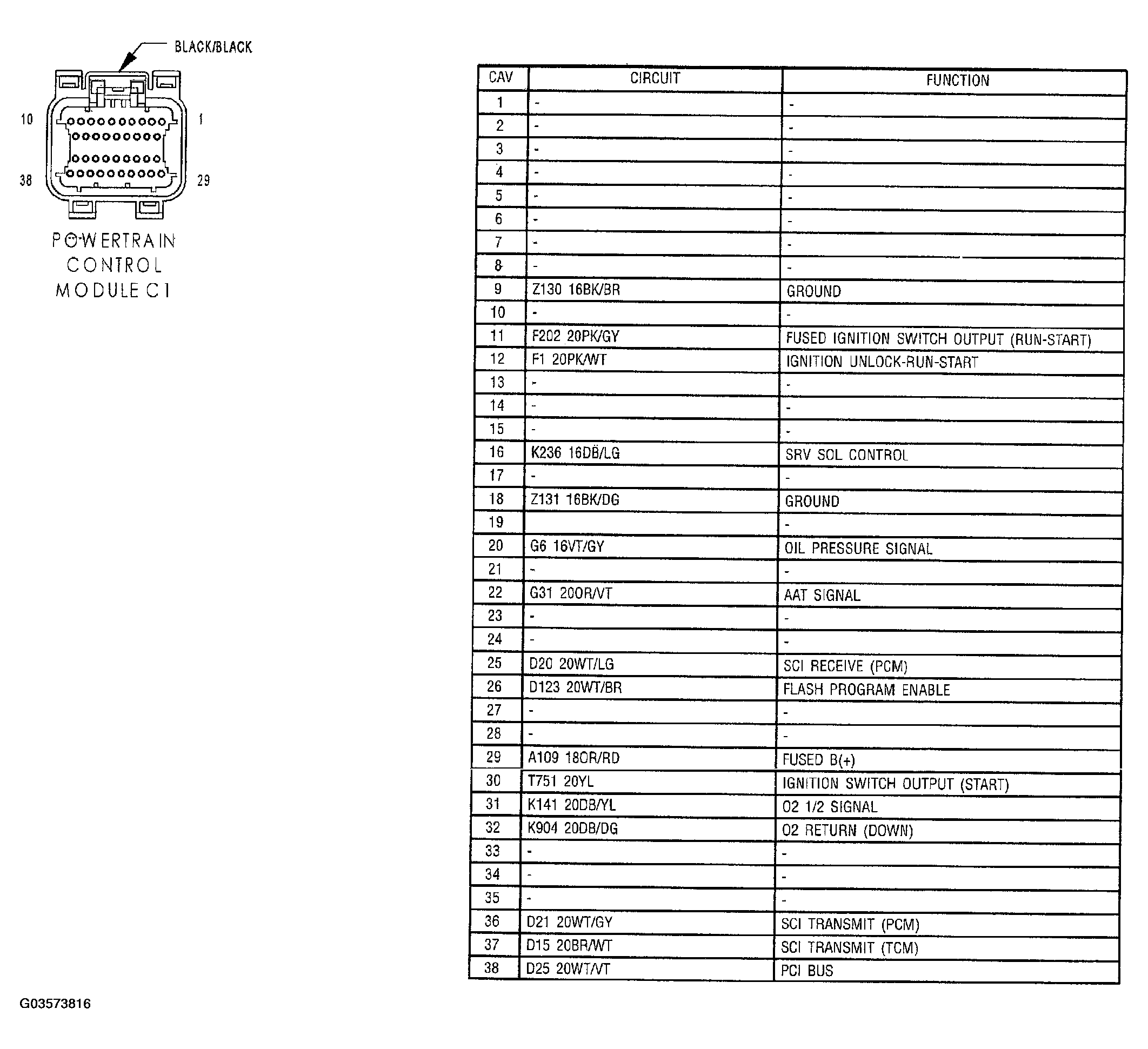

Fig 1: Powertrain Control Module Connector End View (C1)
G03573816Courtesy of DAIMLERCHRYSLER CORP.
